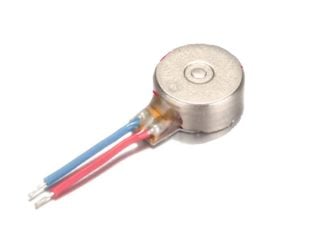

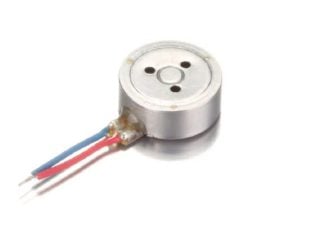

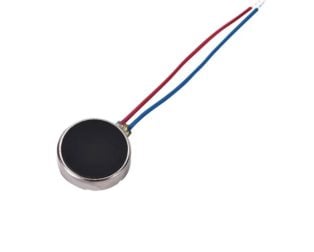

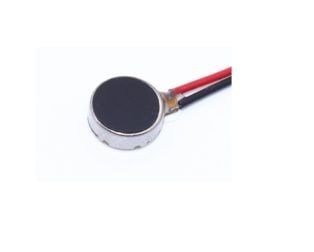

Coin Type Micro Vibration Motor
Ultra-compact coin/pancake-style vibration motor from The Engineer Store, Bengaluru. Ideal for haptic feedback in wearables, game controllers, mobile devices, and IoT alert systems. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Motor Type | Coin/Pancake DC Vibration Motor (ERM - Eccentric Rotating Mass) |
| Rated Voltage | 3V DC (Operating Range: 2V-3.6V) |
| Rated Current | ~75 mA (max ~90 mA) |
| Vibration Speed | ~12,000 RPM +/- 3,000 RPM at rated voltage |
| Diameter | ~10 mm (compact coin form factor) |
| Thickness | ~2.7-3.4 mm |
| Lead Wires | Two pre-soldered wires (Red +, Blue/Black ) |
| Body Material | Metal housing with adhesive backing |
| Weight | ~1.5 g |
| Lifespan | Approx. 50,000+ hours under normal conditions |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This Coin Vibration Motor?
- Ultra-thin profile: At under 3.5 mm thick, it fits inside wearable bands, slim controllers, and space-constrained PCBs
- Self-adhesive backing: Peel-and-stick mounting for quick, tool-free installation on flat surfaces
- Low power consumption: Runs comfortably from a 3V coin cell, LiPo battery, or Arduino GPIO pin (via transistor driver)
- Strong tactile feedback: Noticeable vibration intensity despite its miniature size - perfect for haptic alerts
- Pre-soldered leads: Ready to connect with no additional soldering required on the motor side
- 100% authentic: Sourced directly from trusted suppliers with quality verification
- 1-5 day shipping, 7-8 day delivery: Dispatched from our Bengaluru warehouse; same-day delivery available in Bengaluru
- Expert technical support: Wiring guidance, driver circuit help, and integration advice included
Project Ideas
- Haptic Feedback Wearable: Embed inside a DIY smartwatch band or fitness tracker to deliver vibration alerts for notifications, alarms, or step goals.
- Arduino/ESP32 Alert System: Drive with a simple NPN transistor (e.g., 2N2222) and flyback diode from a microcontroller pin to create vibration-based alerts for IoT sensors - temperature thresholds, proximity detection, or security triggers.
- Custom Game Controller: Add rumble/haptic feedback to a 3D-printed gamepad or joystick for an immersive gaming experience.
- Silent Alarm Clock: Place under a pillow or wristband and trigger via an RTC module for a vibration-only wake-up - perfect for shared rooms.
- Accessibility Devices: Build tactile notification tools for hearing-impaired users - doorbell alerts, phone call indicators, or navigation cues.
- Learning & Education: Great hands-on component for students learning about DC motors, PWM speed control, transistor switching, and circuit protection (flyback diodes).
Recommended Driver Circuit
- Basic setup: Microcontroller GPIO -> 1 kOhm base resistor -> NPN transistor (2N2222/BC547) -> Motor + flyback diode (1N4148) across motor terminals
- PWM control: Use analogWrite() on Arduino to vary vibration intensity from gentle buzz to strong pulse
- Dedicated driver (optional): DRV2605L haptic driver module for advanced vibration patterns and waveforms
What's in the Box
- 1 x Coin Type Micro Vibration Motor with pre-soldered leads and adhesive backing
- Documentation and wiring support materials
Frequently Asked Questions
Is this 100% authentic?
Yes, sourced directly from authorized distributors. Each unit is inspected and authentication verified before dispatch.
Can I drive this directly from an Arduino pin?
Not recommended directly - the motor draws ~75 mA which exceeds the 40 mA limit of most Arduino GPIO pins. Use an NPN transistor (like 2N2222 or BC547) as a switch, with a 1 kOhm resistor on the base and a flyback diode (1N4148) across the motor terminals to protect against voltage spikes.
