CP2102 USB UART Board (mini)

by My Store
SKU: TES-EVWRIED13
Rs. 1,399.00 Rs. 418.82 70% off
No Reviews
CP2102 USB UART Board (mini)
CP2102 USB UART Board (mini)

The CP2102 USB UART Board (mini) is an accessory board that features the single-chip USB to UART bridge CP2102 onboard.


Features

  • Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
  • Voltage output support: 5V or 3.3V
  • Integrated USB protection device: SP0503
  • 3 LEDs: TXD LED, RXD LED, POWER LED
  • Pins accessible on pinheaders: TXD, RXD, RTS, CTS
  • Other pins are accessible on drilled holes, easily connected to user application system (separate pinheaders are provided)


Resources

User Guide

How to use

In the case of working with a MCU:

  • VCCIO: 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
  • GND: connects to GND
  • TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
  • RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
  • RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
  • CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)
Sale

CP2102 USB UART Board (mini)

by My Store
SKU: TES-EVWRIED13
Rs. 1,399.00 Rs. 418.82 70% off
No Reviews
3-5 Working Days Dispatch
(0 in cart)
Shipping calculated at checkout.

You may also like

CP2102 USB UART Board (micro)

CP2102 USB UART Board (micro)

Rs. 1,299.00 Rs. 405.28

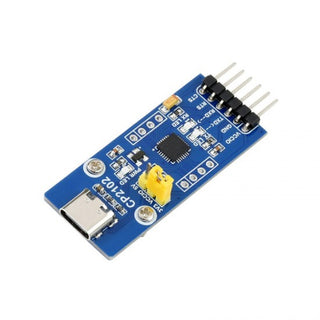

CP2102 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

CP2102 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

Rs. 1,599.00 Rs. 411.82

FT232 USB UART Board (Type A), USB To UART (TTL) Communication Module With USB Type A Connector

FT232 USB UART Board (Type A), USB To UART (TTL) Communication Module With USB Type A Connector

Rs. 1,299.00 Rs. 543.00

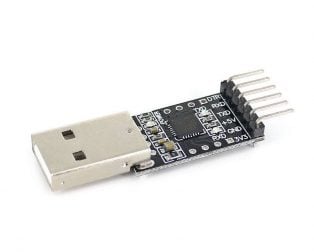

CP2102(6-pin) USB 2.0 to TTL UART serial converter
