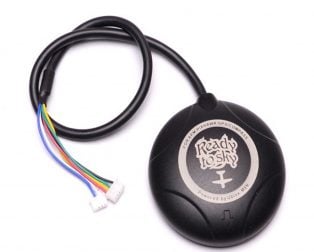

NEO-M8N (Ready To SKY) GPS Module with Compass for APM with extra connector for Pixhawk

The NEO-M8N is a professional-grade GPS receiver module with integrated digital compass designed for autonomous aerial platforms, offering dual-frequency GNSS positioning with RTK-capable architecture. Drone pilots, UAV developers, and robotics engineers rely on this module to achieve centimeter-level accuracy and reliable heading information for autonomous flight missions and navigation systems. This module solves the critical challenge of precise geolocation and orientation sensing in GPS-denied environments and dynamic flight scenarios, providing stable position fixes even in challenging signal conditions.

Product Overview

The NEO-M8N represents u-blox's advanced multi-constellation GNSS receiver technology, simultaneously tracking GPS, GLONASS, Galileo, and BeiDou satellites for robust positioning accuracy. The module operates on a 5V power supply with ultra-low power consumption, making it ideal for battery-powered UAV platforms. Its integrated HMC5883L magnetometer provides real-time compass heading data, eliminating the need for separate compass modules. The Ready To SKY variant comes pre-configured with optimized firmware for aerial applications, featuring built-in filtering algorithms that suppress multipath errors common in urban and cluttered environments.

This GPS module communicates via UART and I2C protocols, offering flexible integration with autopilot systems like ArduPilot (APM) and Pixhawk flight controllers. The dual connector design includes both standard DF13 connectors for APM compatibility and additional connectors for Pixhawk-based systems, enabling seamless integration across multiple platform architectures. The module achieves horizontal accuracy of 2.5 meters with 10Hz update rate, vertical accuracy of 4 meters, and heading accuracy of 2 degrees, making it suitable for precision agriculture, mapping, surveillance, and autonomous navigation applications.

Key Specifications

Specification	Details
Product Type	GNSS GPS Module with Integrated Compass
Brand	u-blox (NEO-M8N)
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
GNSS Constellations	GPS, GLONASS, Galileo, BeiDou
Horizontal Accuracy	2.5 meters (50th percentile)
Vertical Accuracy	4 meters (50th percentile)
Update Rate	10Hz maximum
Compass Sensor	HMC5883L Magnetometer
Heading Accuracy	2 degrees
Communication Protocol	UART and I2C
Power Supply	5V DC
Current Consumption	67mA average operation
Connectors	DF13 (APM) and Pixhawk compatible
Operating Temperature	-40 to +85 degrees Celsius

Key Features

• Multi-constellation GNSS receiver simultaneously tracking GPS, GLONASS, Galileo, and BeiDou satellites for enhanced positioning reliability in urban and obstructed environments
• Integrated HMC5883L digital compass providing real-time heading information with 2-degree accuracy for autonomous vehicle orientation and stabilization
• Dual connector compatibility with both ArduPilot (APM) DF13 connectors and Pixhawk autopilot systems enabling flexible integration across multiple flight controller platforms
• Ready To SKY pre-configured firmware optimized for aerial applications with built-in multipath suppression and dynamic platform filtering for stable performance in flight
• 10Hz update rate providing responsive position and heading data for real-time flight control and autonomous mission execution
• Ultra-low power consumption at 67mA average operation extending flight endurance for battery-powered UAV platforms

Applications and Use Cases

• Autonomous drone navigation and waypoint-based mission planning where centimeter-level accuracy and reliable compass heading enable precise flight path execution and return-to-home functionality
• Precision agriculture and crop monitoring applications requiring accurate geolocation data for field mapping, variable rate application, and yield correlation analysis
• Search and rescue operations where multi-constellation GNSS ensures positioning continuity in challenging terrain and dense vegetation with integrated compass for directional awareness
• Aerial surveying and photogrammetry projects requiring synchronized GPS timestamps and accurate position records for georeferencing aerial imagery and creating orthomosaics
• Autonomous ground vehicles and robotics platforms utilizing the dual UART/I2C interface for integration with custom navigation algorithms and obstacle avoidance systems
• Environmental monitoring and wildlife tracking applications where low power consumption and compact form factor enable extended deployment periods on mobile platforms

How to Use

To integrate the NEO-M8N GPS module with your APM or Pixhawk autopilot system, first identify the appropriate connector type for your flight controller. For APM systems, connect the module's DF13 connector directly to the GPS port on your autopilot board. For Pixhawk-based systems, use the additional Pixhawk-compatible connector provided with the module. Ensure proper 5V power supply connection and verify ground continuity before powering the system. The module requires a clear view of the sky with minimum 25 degrees elevation angle to satellites for optimal signal acquisition.

Configure your autopilot firmware to recognize the NEO-M8N module through the mission planner or QGroundControl software. Set the GPS protocol to u-blox binary (UBX) format and configure the UART baud rate to 38400 bps for standard operation. The integrated magnetometer requires compass calibration using your autopilot's calibration routine before first flight, rotating the vehicle in figure-eight patterns to establish magnetic declination and hard/soft iron offsets. Allow 30-60 seconds for initial GPS lock acquisition after power-up, monitoring the autopilot's status display for satellite count and HDOP values indicating positioning quality.

Frequently Asked Questions

What is the difference between NEO-M8N and other GPS modules like NEO-6M?

The NEO-M8N is a significantly more advanced module compared to the NEO-6M. It supports multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) versus single-constellation GPS in the NEO-6M, providing faster acquisition time and better accuracy in challenging environments. The NEO-M8N includes RTK-capable architecture for centimeter-level accuracy, while the NEO-6M is limited to meter-level accuracy. Additionally, the NEO-M8N offers higher update rates up to 10Hz and superior multipath rejection, making it ideal for professional UAV and autonomous vehicle applications.

Can I use this module with both APM and Pixhawk flight controllers?

Yes, the Ready To SKY variant specifically includes dual connectors for compatibility with both ArduPilot (APM) and Pixhawk autopilot systems. The module comes with DF13 connectors for APM boards and additional Pixhawk-compatible connectors, allowing you to select the appropriate connector for your flight controller. Simply match the connector type to your autopilot's GPS port and configure the firmware accordingly. This dual-connector design eliminates the need for separate modules or custom adapter cables.

How accurate is the integrated compass and does it require calibration?

The integrated HMC5883L magnetometer provides heading accuracy of 2 degrees under ideal conditions. However, accuracy depends heavily on proper calibration and environmental factors. Compass calibration is essential before first flight, performed through your autopilot's mission planner by rotating the vehicle in figure-eight patterns. This process establishes magnetic declination specific to your geographic location and compensates for hard iron distortions from nearby metal components. Soft iron calibration may also be necessary if the compass shows drift or inconsistent readings near certain vehicle orientations or positions.

What is the cold start and warm start acquisition time?

Cold start acquisition (first power-up with no prior position data) typically takes 30-60 seconds depending on satellite availability and signal strength. Warm start (with recent position data stored) reduces acquisition time to 5-10 seconds. Hot start (continuous operation) provides near-instantaneous position updates at the configured update rate. In urban canyons or obstructed environments, acquisition time may extend beyond typical ranges. The multi-constellation support of the NEO-M8N significantly improves acquisition speed compared to single-constellation modules by tracking more available satellites.

Can this module work indoors or in GPS-denied environments?

The NEO-M8N is a satellite-based GNSS receiver and requires direct line of sight to satellites, making it unsuitable for indoor operation or dense urban canyons where signal blockage occurs. However, its multi-constellation architecture improves performance in partially obstructed environments compared to single-constellation modules. For GPS-denied environments, consider integrating this module with inertial measurement units (IMUs), visual odometry, or RTK base stations for continuous positioning. Some advanced autopilot systems support sensor fusion combining GPS with other positioning methods for seamless navigation transitions.

What power supply voltage and current does the module require?

The NEO-M8N operates on 5V DC power supply with average current consumption of 67mA during normal operation. Peak current during satellite acquisition may reach 100mA. For battery-powered UAV platforms, ensure your power distribution board can supply stable 5V with adequate current capacity. Many autopilot systems include integrated voltage regulators providing clean 5V output for GPS modules. Use quality power distribution components and avoid long unshielded power cables that may introduce noise affecting GPS signal quality and compass readings.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
