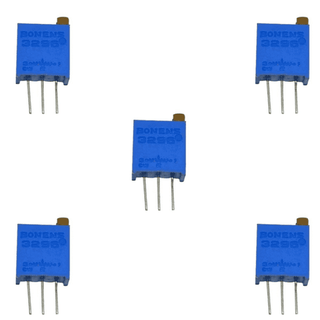

20K 3296W Trimpot(Pack of 5)
Trimpot is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated.
The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.
Specifications:-
-
Track Resistance: 20K ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
-
Resistance: 20K ohm
- Resistor Element Material: Variable Rotary Trimmer
