74HC163 Fully Synchronous 4-Bit Counter

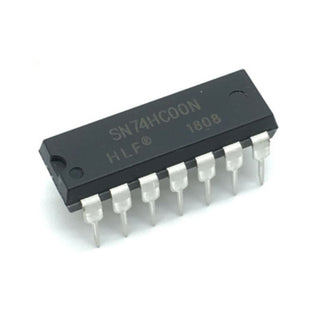

The 74HC00 is a quad 2-input NAND gate IC from the HC (High-Speed CMOS) logic family, housed in a compact 14-pin SOIC package. This device contains four independent gates, each performing the NAND logic function. It utilizes advanced silicon-gate CMOS technology, providing high-speed operation similar to LS-TTL gates, while offering the low power consumption typical of standard CMOS integrated circuits.The 74HC00 features buffered inputs and outputs that are capable of driving up to 10 LS-TTL loads, ensuring reliable performance in various digital applications. It supports a wide supply voltage range of 2V to 6V and operates within a temperature range of –40°C to +85°C
Note:
- Product Images are shown for illustrative purposes only and may differ from the actual product.
- For Technical Specifications about the IC go through the Datasheet in the Attachment section.
Features :
- Low Power Consumption: 20 µA operating current
- Buffered Inputs
- Wide Operating Voltage: 2V to 6V
- Temperature Range: –40°C to +85°C
