DSO138 DIY 2.4 Inch Oscilloscope Kit
Build your own fully functional digital oscilloscope with the DSO138 DIY Kit featuring a crisp 2.4-inch TFT LCD display. Available at The Engineer Store, Bengaluru - your trusted source for authentic electronics kits with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Display | 2.4 inch TFT LCD (320 x 240 pixels) |
| Analog Bandwidth | 0-200 kHz |
| Sampling Rate | 1 Msps (max) |
| Sensitivity | 10 mV/div - 5 V/div |
| Input Impedance | 1 MOhm |
| Max Input Voltage | 50 Vpp (1x probe) |
| Time Base Range | 10 us/div - 500 s/div |
| Coupling Modes | DC / AC / GND |
| Trigger Modes | Auto, Normal, Single |
| MCU | ARM Cortex-M3 (STM32F103C8) |
| Power Supply | 9 V DC (not included) |
| Kit Type | SMD pre-soldered; through-hole DIY assembly |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Beginner-Friendly DIY Build: Critical SMD components come pre-soldered - you solder only the through-hole parts, making it an ideal first soldering project.
- Real Oscilloscope Functionality: Capture and visualize waveforms up to 200 kHz with 1 Msps sampling, auto/normal/single trigger modes, and adjustable sensitivity.
- Bright 2.4-Inch TFT Display: Clear, color waveform rendering on a 320 x 240 pixel screen with on-screen readouts for frequency, voltage, and timebase settings.
- ARM Cortex-M3 Powered: Built around the STM32F103C8 microcontroller for responsive signal processing and smooth user interface.
- Built-In Test Signal: Onboard 1 kHz / 3.3 V square wave output for self-testing and calibration right out of the box.
- Compact & Portable: Lightweight, pocket-sized design perfect for benchtop use, field work, or carrying to class.
Why Choose This?
- 100% authentic kit sourced from trusted, authorized suppliers
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse
- Expert technical support to guide you through assembly and troubleshooting
- Perfect balance of educational value and practical test-equipment utility
Project Ideas & Applications
- Learn to Solder: An excellent hands-on introduction to PCB assembly and soldering through-hole components with a rewarding, functional end result.
- Electronics Education: Visualize AC/DC signals, PWM outputs, clock signals, and sensor waveforms - ideal for students studying electronics, embedded systems, or physics.
- Arduino & Microcontroller Debugging: Inspect PWM duty cycles, serial communication signals, and I/O pin behavior in real time to debug your projects faster.
- Audio & Music Electronics: Analyze audio waveforms from amplifiers, synthesizers, guitar pedals, and speaker circuits.
- Hobby Bench Tool: Keep it as a lightweight, always-ready oscilloscope on your workbench for quick signal checks on power supplies, motor drivers, and RF circuits.
- STEM Workshops & Maker Spaces: Ideal group activity for electronics clubs, college labs, and maker events - everyone builds and keeps their own scope.
What's in the Box
- 1 x DSO138 PCB with pre-soldered SMD components
- 1 x Through-hole component kit (capacitors, resistors, connectors, switches, headers)
- 1 x 2.4-inch TFT LCD module

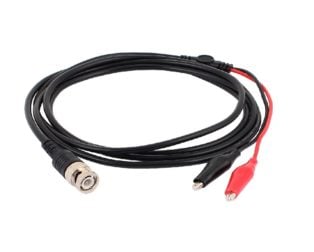

- 1 x BNC probe connector
- 1 x Acrylic case panels (where applicable)
- 1 x Assembly instructions and circuit schematic
Assembly Tips
- Use a temperature-controlled soldering iron (recommended 300-350 degreesC) for clean joints.
- Solder components in order of height - resistors and diodes first, then capacitors, ICs, and connectors last.
- Double-check component polarity for electrolytic capacitors, diodes, and the LCD connector before soldering.
- After assembly, use the built-in 1 kHz test signal to verify proper operation and calib
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy DSO138 DIY 2.4 inch Oscilloscope Kit Online in India
Purchase the DSO138 DIY 2.4 inch Oscilloscope Kit online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on DSO138 DIY 2.4 inch Oscilloscope Kit with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy DSO138 DIY 2.4 inch Oscilloscope Kit at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
