Flat Ribbon Cable 100ft Roll - 60 Pin - 60 conductors - FRC Computer Cable
ଦ୍ .ାରା
My Store
SKU: TES-EVHUB015
60 % ବନ୍ଦ |

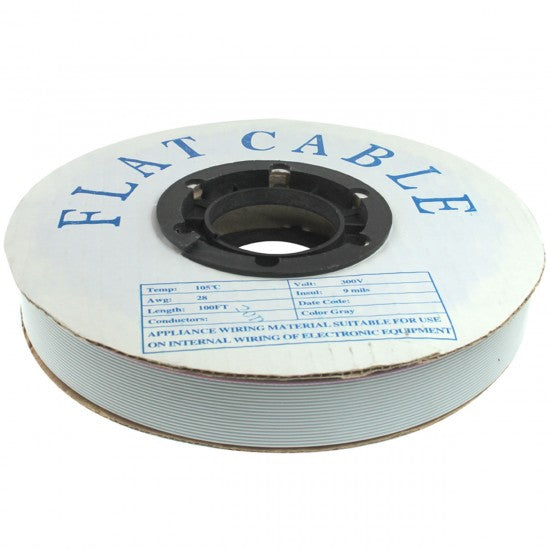

Flat Ribbon Cable 100ft Roll - 60 Pin - 60 conductors - FRC Computer Cable
The Flat Ribbon Cable 100ft Roll is a professional-grade FRC (Flat Ribbon Connector) computer cable featuring 60 individual conductors designed for high-density data transmission in industrial and computing applications. This cable is widely used by electronics engineers, system integrators, and IT professionals who require reliable parallel data communication between motherboards, peripheral devices, and control systems. It solves critical connectivity challenges in legacy systems, parallel port devices, and custom electronic assemblies where space constraints and signal integrity are paramount concerns.
Product Overview
Flat ribbon cables operate on the principle of parallel conductor transmission, where 60 individual copper conductors are arranged side-by-side in a flat profile, allowing simultaneous multi-bit data transfer. Unlike round cables, the flat design minimizes electromagnetic interference between adjacent conductors through controlled spacing and reduces overall cable diameter, making it ideal for tight cable management scenarios. The 100-foot roll length provides flexibility for custom installations, allowing technicians to cut and terminate segments according to specific project requirements while maintaining consistent impedance characteristics throughout the cable run.
This FRC cable is engineered with individually insulated conductors that maintain precise pitch spacing of 0.05 inches between centers, ensuring compatibility with standard 60-pin ribbon connectors. The flat profile enables superior heat dissipation compared to bundled round cables, reducing thermal stress during extended operation. The cable's construction supports data rates suitable for legacy parallel communication protocols, making it essential for retrofitting older equipment, laboratory instrumentation, and industrial control systems that depend on parallel data buses for critical operations.
Key Specifications
| Specification | Details |
| Product Type | Flat Ribbon Cable - FRC Computer Cable |
| Conductor Count | 60 Conductors |
| Pin Configuration | 60 Pin |
| Cable Length | 100 feet per roll |
| Conductor Pitch | 0.05 inches (1.27mm) center-to-center |
| Conductor Material | Copper - High conductivity grade |
| Insulation Material | PVC or Polyethylene - Color coded |
| Cable Width | Approximately 3.0 inches |
| Impedance | 110 Ohms nominal |
| Operating Temperature Range | -20°C to +80°C |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
Key Features
- 60 Individual Conductors with precise 0.05-inch pitch spacing for direct compatibility with standard 60-pin ribbon connectors and legacy parallel port devices
- 100-foot bulk roll format allowing custom cutting and termination for flexible project-specific cable lengths without wastage
- Flat profile design reducing cable diameter by up to 40% compared to round cables, enabling installation in space-constrained environments and tight cable trays
- Color-coded insulation on individual conductors facilitating quick identification during termination and troubleshooting of parallel data lines
- High-purity copper conductors ensuring minimal signal attenuation and superior electrical conductivity for reliable data transmission over extended distances
- Controlled impedance characteristics maintaining signal integrity for parallel communication protocols used in industrial automation and legacy computing systems
Applications and Use Cases
- Legacy Computer System Retrofitting: Connecting parallel port devices, old SCSI controllers, and IDE hard drives to vintage computer systems where flat ribbon cables remain the standard interface
- Industrial Control Systems: Interfacing parallel I/O modules, programmable logic controllers (PLCs), and sensor arrays in manufacturing automation where 60-pin parallel buses control multiple subsystems
- Laboratory Instrumentation: Connecting data acquisition modules, test equipment, and measurement devices that utilize parallel communication protocols for real-time signal processing
- Custom Electronic Assemblies: Building prototype circuits and embedded systems requiring multi-conductor parallel connections for control signals, address buses, and data buses in microcontroller projects
- Telecommunications Equipment: Interconnecting switching modules and signal processing boards in legacy telecom infrastructure where parallel ribbon cables handle high-speed digital signals
- Medical Device Assembly: Connecting diagnostic equipment, patient monitoring systems, and laboratory analyzers that depend on parallel data transmission for synchronized multi-channel operations
How to Use
Begin by measuring the required cable length for your application and carefully cutting the 100-foot roll using a sharp utility knife or cable cutter, ensuring clean perpendicular cuts to prevent conductor fraying. Before termination, inspect the cut end to verify all 60 conductors are intact and properly aligned. When preparing for connector installation, gently separate individual conductors if needed using tweezers or a flat-head screwdriver, taking care not to damage the insulation. Strip approximately 0.25 inches of insulation from each conductor end using a precision wire stripper set to the appropriate gauge, typically 28 AWG for 60-conductor ribbon cables.
Insert the prepared conductors into the corresponding pins of your 60-pin ribbon connector, ensuring each conductor aligns with its designated pin position to maintain proper signal routing. Use a crimping tool specifically designed for ribbon cable connectors to apply consistent pressure across all pins simultaneously, creating secure electrical connections. After termination, test continuity across all 60 pins using a digital multimeter in continuity mode to verify proper connection and identify any miswired or damaged conductors before installing the cable in your system. Route the cable away from high-voltage power lines and sources of electromagnetic interference, securing it with cable clips or ties every 12 inches to prevent mechanical stress and signal degradation.
Frequently Asked Questions
What is the difference between 60-pin and 40-pin ribbon cables?
The primary difference is conductor count and connector compatibility. A 60-pin ribbon cable contains 60 individual conductors spaced 0.05 inches apart, designed for wider parallel data buses and higher-density applications. A 40-pin cable has 40 conductors and is commonly used in IDE hard drives and older parallel port devices. The 60-pin variant supports more simultaneous signal lines, making it suitable for complex control systems and multi-channel data acquisition where additional address and control lines are required.
Can I use this 60-pin ribbon cable with modern USB devices?
No, this flat ribbon cable is designed specifically for parallel communication protocols and 60-pin connector standards. Modern devices use USB, which operates on a completely different serial communication protocol with different connector types. However, you can use this cable with legacy parallel port devices, industrial equipment with parallel interfaces, and custom electronic projects designed for parallel data transmission. Attempting to connect it to USB devices will result in incompatibility and potential damage.
What is the maximum safe transmission distance for this cable?
For standard parallel communication protocols, the maximum recommended cable length is typically 50 feet without signal degradation or timing issues. Since this product is a 100-foot roll, you can cut it to appropriate lengths for your application. For distances exceeding 50 feet, consider using signal conditioning or repeater circuits to maintain data integrity. The actual safe distance depends on your specific protocol speed, signal voltage levels, and electromagnetic environment. Consult your equipment manufacturer's specifications for recommended cable lengths.
How do I terminate the 60-pin ribbon cable properly?
Proper termination requires a ribbon cable connector crimper tool and compatible 60-pin connectors. First, cut the cable to length with a sharp utility knife, ensuring a clean perpendicular cut. Strip approximately 0.25 inches of insulation from each conductor end. Insert all conductors into the connector housing simultaneously, ensuring proper alignment with pin positions. Use a ribbon cable crimper to apply uniform pressure across all pins, creating secure electrical connections. Verify continuity with a multimeter before installation. Improper termination can cause intermittent connections, signal loss, and system failures.
Is this cable suitable for high-speed data transmission?
This 60-pin flat ribbon cable is optimized for parallel communication protocols used in legacy systems and industrial applications, typically supporting data rates up to 10-20 Mbps depending on the protocol and system design. It is not suitable for modern high-speed applications like Gigabit Ethernet or USB 3.0, which require different cable types with superior shielding and impedance characteristics. For legacy systems and industrial control applications operating at standard parallel communication speeds, this cable provides reliable performance with excellent signal integrity.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Why Buy from The Engineer Store
- Genuine Products: Sourced directly from authorized distributors with authentication
- Expert Team: Our technical team validates every product before listing
- Fast Shipping: Dispatched within 1-5 days from our Bengaluru warehouse
- Pan-India Delivery: 7-8 days to Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata
- Payment Options: COD, UPI, credit/debit cards, net banking, EMI available
- Technical Support: 24/7 expert guidance via email and WhatsApp
- Returns: 7-day return policy on manufacturing defects only
Buy Flat Ribbon Cable 100ft Roll - 60 Pin - 60 conductors - FRC Computer Cable Online in India
Purchase the Flat Ribbon Cable 100ft Roll - 60 Pin - 60 conductors - FRC Computer Cable online at The Engineer Store, India's trusted source for genuine electronics. We deliver across Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on Flat Ribbon Cable 100ft Roll - 60 Pin - 60 conductors - FRC Computer Cable with fast shipping and expert support.
Our team in Bengaluru is available 24/7 to support your journey from product selection to project completion.
