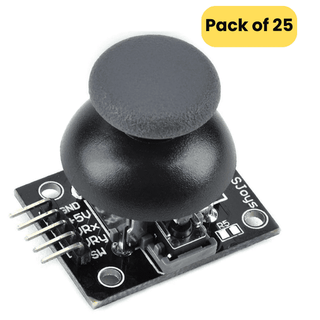

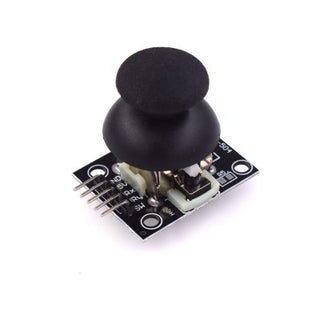

Joystick Module - Dual-Axis Analog Controller for Arduino, ESP32 & Robotics
Navigate your projects with precision using this Dual-Axis Joystick Module from The Engineer Store, Bengaluru. This compact thumb-stick controller outputs analog X and Y axis values along with a digital push-button switch, making it ideal for controlling robots, game consoles, camera gimbals, and menu-driven interfaces. Plug-and-play compatible with Arduino, ESP32, Raspberry Pi, and virtually any microcontroller with ADC inputs. Fast shipping across India with a 7-day warranty on manufacturing defects and dedicated technical support.
Specifications
| Module Type | Dual-Axis Analog Joystick with Push Button |
| Axes | 2 (X-Axis & Y-Axis) - Independent Analog Outputs |
| Output Signal | Analog (0-5 V proportional) on VRx & VRy pins |
| Push Button | Integrated tactile switch (SW pin, active LOW) |
| Operating Voltage | 3.3 V - 5 V DC |
| Resting Output (Center) | ~2.5 V (512 on 10-bit ADC) |
| Potentiometer Value | 10 KOhm per axis |
| Interface Pins | GND, +5V, VRx, VRy, SW (5-pin header) |
| Joystick Travel | Full 360 degrees rotation with spring-loaded self-centering |
| PCB Dimensions | ~34 mm x 26 mm (compact breakout board) |
| Mounting | Two M2 mounting holes for secure installation |
| Compatibility | Arduino Uno/Nano/Mega, ESP32, ESP8266, STM32, Raspberry Pi (with ADC), PIC, MSP430 |
| Connector Type | Standard 2.54 mm pin header (breadboard-friendly) |
| Operating Temperature | -20 degreesC to +70 degreesC |
| Origin | Original / Authentic Component |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp - 24/7 Technical Assistance |
Key Features
- Dual-Axis Precision Control: Two independent 10 KOhm potentiometers deliver smooth, proportional analog signals for X and Y movement - perfect for fine-grained directional control.
- Integrated Push Button (Z-Axis): Built-in tactile switch activated by pressing the joystick knob down, adding a third input channel for selection, confirmation, or mode toggling.
- Spring-Loaded Self-Centering: Automatically returns to the neutral center position when released, ensuring consistent and predictable behavior in control applications.
- Wide Voltage Compatibility: Operates reliably at both 3.3 V and 5 V logic levels, making it natively compatible with Arduino, ESP32, STM32, and other popular platforms without level shifting.
- Breadboard & Perfboard Friendly: Standard 2.54 mm pitch pin header plugs directly into breadboards or connects easily with Dupont jumper wires - zero soldering required for prototyping.
- Compact Breakout Design: Small PCB footprint with clearly labeled pins (GND, +5V, VRx, VRy, SW) simplifies wiring and integration into enclosures or chassis.
- Comfortable Thumb-Stick Cap: Ergonomic knob provides a comfortable grip for extended use in gaming controllers, RC transmitters, and assistive devices.
Why Choose This Joystick Module?
- 100% Authentic: Sourced directly from trusted, authorized component distributors - no clones or counterfeits.
- Beginner-Friendly: Extensive code examples and tutorials available for Arduino IDE - get analog readings in under 5 minutes.
- Versatile Input Device: Replaces complex button arrays with a single intuitive controller for robots, menus, games, and pan-tilt systems.
- Reliable & Durable: High-cycle potentiometers and robust tactile switch rated for thousands of operations.
- Fast Shipping from Bengaluru: 1-5 day shipping, 7-8 day delivery across India; same-day dispatch available in Bengaluru.
- Expert Technical Support: Dedicated engineering support via email and WhatsApp to help with wiring, code, and project integration.
Pin Configuration & Wiring Guide
| Module Pin | Function |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy Joystick Module Online in India
Purchase the Joystick Module online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on Joystick Module with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy Joystick Module at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
