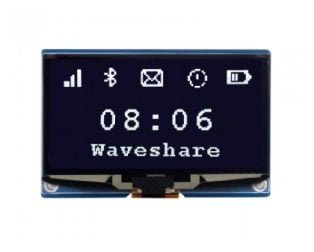

Waveshare 2.42inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

The Waveshare 2.42inch OLED Display Module is a compact monochrome organic light-emitting diode display featuring 128x64 pixel resolution, designed for embedded systems and IoT applications requiring high contrast visual output without backlighting. Professional engineers and hobbyists utilize this module for real-time data visualization, sensor monitoring, and user interface implementation in space-constrained environments where power efficiency is critical. This display solves the challenge of integrating a bright, sharp visual interface into battery-powered devices while maintaining minimal current draw through its self-emissive pixel technology.

Product Overview

The Waveshare 2.42inch OLED Display Module operates on the principle of organic electroluminescence, where individual pixels emit light when voltage is applied across organic semiconductor layers. Unlike LCD displays requiring backlighting, OLED technology delivers superior contrast ratios approaching infinite blacks since unpowered pixels emit no light. The 128x64 resolution provides adequate pixel density for displaying text, graphs, and simple graphics on a 2.42-inch diagonal viewing area, making it ideal for embedded applications where screen real estate is limited. The module communicates via both SPI (Serial Peripheral Interface) and I2C (Inter-Integrated Circuit) protocols, offering flexibility in microcontroller integration and reducing wiring complexity in multi-device systems.

This particular Waveshare variant excels in applications demanding rapid refresh rates and low power consumption. The monochrome white-on-black display maintains excellent visibility across wide viewing angles without color shift, while the self-emissive nature eliminates the need for power-hungry backlighting systems. Integration with Arduino, Raspberry Pi, STM32, and other microcontroller platforms is straightforward through well-documented libraries and example code. The module operates at 3.3V logic levels with typical current consumption under 100mA during active display, making it suitable for battery-powered IoT devices, wearables, and portable measurement instruments.

Key Specifications

Specification	Details
Product Type	OLED Display Module
Brand	Waveshare
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Display Size	2.42 inches diagonal
Resolution	128 x 64 pixels
Display Type	Monochrome OLED (White on Black)
Communication Interface	SPI and I2C (selectable)
Operating Voltage	3.3V logic level
Typical Current Draw	Less than 100mA at full brightness
Contrast Ratio	Infinite (true black pixels)
Viewing Angle	160 degrees horizontal and vertical

Key Features

• Dual Communication Protocol Support: Selectable SPI or I2C interface eliminates the need for separate modules and simplifies integration with various microcontroller platforms including Arduino Uno, Arduino Mega, Raspberry Pi, and STM32 boards
• Superior Contrast and Brightness: Self-emissive OLED technology delivers true black levels with infinite contrast ratio and excellent visibility in both bright sunlight and complete darkness without requiring backlighting
• Ultra-Low Power Consumption: Typical current draw under 100mA enables extended battery life in portable applications, making it ideal for wearable devices and remote sensor nodes operating on coin cell or small lithium batteries
• Wide Viewing Angle: 160-degree horizontal and vertical viewing angles ensure consistent image quality when viewed from multiple perspectives, critical for shared display applications and ergonomic installations
• Compact Form Factor: 2.42-inch diagonal display with 128x64 resolution provides optimal pixel density for text and simple graphics in space-constrained embedded systems and IoT devices
• Fast Refresh Rate: Capable of high-speed updates suitable for real-time data visualization, animation, and responsive user interface applications without visible flicker

Applications and Use Cases

• IoT Environmental Monitoring Stations: Display real-time temperature, humidity, and air quality readings from networked sensors with automatic contrast adjustment for outdoor visibility in weather stations and smart home hubs
• Portable Measurement Instruments: Integration into multimeters, oscilloscopes, and data loggers where compact display real estate and battery efficiency are paramount requirements for field technicians
• Wearable Health Devices: Heart rate monitors, fitness trackers, and medical alert systems utilize this module for displaying vital signs and notifications with minimal power drain on coin cell batteries
• Arduino and Raspberry Pi Projects: Educational robotics platforms, home automation controllers, and maker projects benefit from the straightforward SPI/I2C integration and extensive community library support
• Industrial Control Panels: Compact industrial equipment, PLC interfaces, and factory automation systems display status information and parameter values with high reliability in harsh electromagnetic environments
• Smart Metering Solutions: Electricity, water, and gas meter displays showing consumption data with real-time updates and low power operation for battery-backed remote monitoring systems

How to Use

Begin by identifying your preferred communication protocol: SPI offers faster data transfer rates suitable for rapid screen updates, while I2C requires fewer wires and is ideal for applications with multiple devices on the same bus. Connect the module to your microcontroller using the appropriate pins: for SPI mode, connect CLK, MOSI, CS, DC, and RST pins; for I2C mode, connect only SCL and SDA with pull-up resistors typically 4.7k ohms to 3.3V. Download the Waveshare OLED library for your platform from their GitHub repository, which includes initialization code, drawing functions, and example sketches demonstrating text display, graphics rendering, and animation capabilities.

Configure the library with your communication protocol selection and GPIO pin assignments in the initialization code. The typical workflow involves creating a display object, setting up the interface, clearing the buffer, drawing content using provided functions for pixels, lines, rectangles, circles, and text, then updating the physical display with the buffer contents. Most applications use a main loop that updates sensor readings, refreshes the display buffer, and calls the update function at intervals determined by your application requirements. Refer to the comprehensive documentation and example code provided by Waveshare to understand the specific function calls and parameters for your chosen microcontroller platform, whether Arduino IDE, MicroPython for Raspberry Pi, or STM32CubeMX for ARM Cortex devices.

Frequently Asked Questions

What is the difference between SPI and I2C communication modes on this OLED module?

SPI (Serial Peripheral Interface) provides faster data transfer rates up to 10MHz, enabling screen refresh rates suitable for animation and real-time visualization, requiring four to five wires depending on configuration. I2C (Inter-Integrated Circuit) operates at slower speeds typically 100-400kHz but requires only two wires (SCL and SDA), making it ideal for applications with multiple devices on the same bus where wire count and complexity must be minimized. Choose SPI for applications requiring frequent screen updates like oscilloscope displays or real-time graphs, and I2C for sensor networks where multiple devices share communication lines and update frequency is moderate.

Can this OLED display be used with both Arduino and Raspberry Pi?

Yes, the Waveshare 2.42inch OLED module is fully compatible with both Arduino microcontroller boards and Raspberry Pi single-board computers. Arduino users can implement the module in C/C++ using the Arduino IDE with Waveshare-provided libraries, while Raspberry Pi users can program in Python using MicroPython or standard Python libraries. The dual SPI/I2C interface flexibility ensures compatibility across different platforms, though you must verify voltage levels match your specific board (typically 3.3V logic for this module) and configure the appropriate pin assignments in your code for the communication protocol you select.

How much power does this OLED display consume and how long will it run on a battery?

The Waveshare 2.42inch OLED module typically draws less than 100mA at full brightness with all pixels illuminated, and significantly less when displaying mostly black content since unpowered pixels consume no power. Battery life depends on your specific application: a 1000mAh battery could theoretically power the display for approximately 10 hours at full brightness, but realistic battery life extends much longer when displaying mostly static content with periodic updates. For maximum battery efficiency, implement display sleep modes between updates, minimize brightness levels, and design your application to update only the necessary portions of the screen rather than refreshing the entire display each cycle.

Is this display suitable for outdoor use in bright sunlight?

Yes, the self-emissive OLED technology makes this display one of the best choices for outdoor applications in bright sunlight. Unlike LCD displays that rely on backlighting and suffer from poor visibility in direct sun, OLED pixels emit their own light, providing excellent contrast and readability even in full daylight. The monochrome white-on-black design further enhances outdoor visibility compared to color displays. However, extended operation in extreme heat may affect display lifespan, so consider thermal management in applications exposed to prolonged high temperatures above 50 degrees Celsius.

What programming libraries are available for this Waveshare OLED module?

Waveshare provides comprehensive libraries for multiple platforms including Arduino C/C++ library compatible with Arduino IDE, Python libraries for Raspberry Pi and other Linux-based systems, and STM32CubeMX HAL libraries for ARM Cortex microcontrollers. These libraries include functions for initializing the display, drawing pixels and shapes, rendering text with various fonts, and managing the display buffer. The libraries are well-documented with example code demonstrating common tasks like displaying sensor readings, creating simple animations, and implementing menu systems. Additional community libraries exist on GitHub for specific platforms and use cases.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
