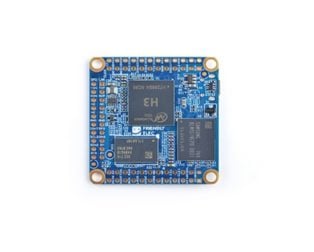

NanoPi Neo-LTS
The NanoPi Neo-LTS is a compact, ultra-low-power ARM-based single-board computer designed for embedded systems, IoT applications, and edge computing projects requiring minimal power consumption and extended operational lifespan. Professional embedded systems engineers, IoT developers, and industrial automation specialists use this board for building cost-effective, reliable solutions that demand long-term support and stability. It solves the critical challenge of deploying lightweight computing in power-constrained environments while maintaining long-term software support through its LTS (Long-Term Support) designation.
Product Overview
The NanoPi Neo-LTS is built around the Allwinner H3 quad-core ARM Cortex-A7 processor operating at 1.2GHz, delivering efficient performance for headless and graphical applications with minimal thermal output. The board integrates 512MB DDR3 RAM, extensive GPIO headers, multiple connectivity interfaces including Ethernet, USB, and UART, making it ideal for networked IoT deployments and industrial control systems. Its fanless design and passive cooling capability ensure silent operation in noise-sensitive environments, while the LTS kernel support guarantees security patches and bug fixes for extended periods, critical for production deployments.
What distinguishes the NanoPi Neo-LTS from competitors is its exceptional power efficiency, consuming as little as 0.5W at idle and under 2W under full load, making it suitable for battery-powered and solar-powered applications. The board runs mainline Linux with full community support, enabling developers to leverage standard ARM toolchains and libraries without proprietary dependencies. Its compact form factor (approximately 40x40mm) combined with robust industrial-grade components makes it the preferred choice for remote monitoring systems, environmental sensors, home automation gateways, and embedded data logging applications where reliability and longevity are paramount.
Key Specifications
| Specification | Details |
| Product Type | Single-Board Computer (SBC) with ARM Processor |
| Brand | FriendlyElec |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Processor | Allwinner H3 Quad-Core ARM Cortex-A7 @ 1.2GHz |
| RAM | 512MB DDR3 SDRAM |
| Storage | microSD card slot (up to 128GB supported) |
| Power Consumption | Idle: 0.5W, Load: under 2W |
| Connectivity | Gigabit Ethernet, USB 2.0 Host, USB 2.0 OTG, UART |
| GPIO | 40-pin GPIO header with SPI, I2C, PWM support |
| Operating System | Linux (Debian, Ubuntu, OpenWrt compatible) |
| Dimensions | 40mm x 40mm x 10mm |
| Operating Temperature | 0 to 60 degrees Celsius |
Key Features
- Ultra-Low Power Consumption: Draws less than 2W under full load and 0.5W idle, enabling deployment in battery-backed and solar-powered IoT systems without frequent recharging cycles
- Long-Term Support Kernel: Mainline Linux LTS support ensures security updates and bug fixes for extended periods, critical for mission-critical industrial and production deployments
- Compact Industrial Design: 40x40mm fanless form factor with passive thermal management allows installation in space-constrained enclosures and outdoor environments without active cooling infrastructure
- Rich Connectivity Options: Gigabit Ethernet, USB 2.0 Host/OTG, and 40-pin GPIO header with SPI, I2C, and PWM support enable seamless integration with sensors, actuators, and network infrastructure
- Proven Reliability: Industrial-grade components and passive design eliminate moving parts and potential failure points, achieving MTBF suitable for unattended remote deployments
- Community-Backed Development: Full mainline Linux support and active developer community provide extensive documentation, libraries, and troubleshooting resources
Applications and Use Cases
- Remote Environmental Monitoring: Deploy weather stations, soil moisture sensors, and air quality monitors in remote locations powered by solar panels, with the NanoPi Neo-LTS collecting and transmitting data via Ethernet to cloud platforms
- Home Automation Gateway: Use as a lightweight, always-on hub for integrating Z-Wave, Zigbee, and WiFi devices into a centralized home automation system running OpenHAB or Home Assistant with minimal power draw
- Industrial IoT and Predictive Maintenance: Monitor machinery vibration, temperature, and operational parameters using GPIO-connected sensors, logging data locally and transmitting alerts via Ethernet for predictive maintenance workflows
- Network Edge Computing: Deploy lightweight machine learning inference models for real-time video processing, anomaly detection, or sensor data analysis at the edge, reducing latency and bandwidth requirements
- Embedded Data Logging and Time-Series Recording: Build persistent data acquisition systems for scientific research, environmental studies, and industrial compliance monitoring with microSD card storage and network backup capabilities
- Smart Metering and Energy Management: Integrate with smart meters and energy sensors to monitor consumption patterns, implement demand-response logic, and provide real-time analytics to end users
How to Use
Begin by downloading the latest NanoPi Neo-LTS image from FriendlyElec's official repository or verified community sources. Write the image to a microSD card using Etcher or dd command on Linux, ensuring proper card formatting. Insert the microSD card into the board, connect power via USB Type-C (5V/2A minimum), and optionally connect Ethernet for network access. The board will boot within 30-45 seconds and acquire an IP address via DHCP if Ethernet is connected, or you can access it via serial UART at 115200 baud for initial configuration.
Once booted, SSH into the board using default credentials (typically root/root or debian/debian depending on the image), and immediately update the system with apt-get update and apt-get upgrade to apply security patches. Configure your specific application requirements such as GPIO pin assignments for sensors, network settings for cloud connectivity, and service autostart scripts using systemd. For development, install cross-compilation toolchains on your host machine to build ARM binaries efficiently, then deploy compiled applications to the board via SCP. Monitor power consumption and thermal performance during load testing to validate your deployment meets power budgets, and implement watchdog timers and automatic restart mechanisms for unattended operation in production environments.
Frequently Asked Questions
What is the difference between NanoPi Neo and NanoPi Neo-LTS?
The primary difference is long-term kernel support. The NanoPi Neo-LTS receives mainline Linux kernel updates and security patches for an extended period, typically 5+ years, making it suitable for production deployments requiring stability and security updates. The standard NanoPi Neo relies on community support and may have limited update availability. For industrial, IoT, and mission-critical applications, the LTS variant is strongly recommended to ensure your devices remain secure and compatible with modern tools and libraries throughout their operational lifespan.
Can I use NanoPi Neo-LTS for machine learning and AI applications?
Yes, the NanoPi Neo-LTS can run lightweight machine learning frameworks such as TensorFlow Lite, PyTorch Mobile, and ONNX Runtime for edge inference tasks. However, with 512MB RAM and a 1.2GHz ARM processor, it is optimized for small, quantized models rather than large neural networks. It excels at real-time sensor data processing, anomaly detection, and simple image classification tasks. For complex deep learning training, use the board as an inference engine deployed at the edge while training occurs on more powerful hardware, then deploy the trained model to the NanoPi Neo-LTS for inference.
How do I connect sensors and actuators to the NanoPi Neo-LTS GPIO pins?
The 40-pin GPIO header supports digital I/O, SPI, I2C, and PWM protocols. Use jumper wires to connect sensor VCC to pin 1 (3.3V), GND to pins 6, 9, 14, 20, 25, 30, or 34, and data lines to appropriate GPIO pins. For I2C sensors, connect SDA to GPIO pin 3 and SCL to GPIO pin 5. Use Python libraries like RPi.GPIO, gpiozero, or WiringPi to control pins from your application code. Always verify sensor voltage compatibility (3.3V logic) to prevent damage, and use level shifters or protective resistors for 5V sensors. Refer to the official NanoPi Neo-LTS pinout diagram for precise pin assignments and protocol support.
What operating systems can I run on NanoPi Neo-LTS?
The NanoPi Neo-LTS officially supports Debian and Ubuntu Linux distributions optimized for the H3 processor. Community builds also provide OpenWrt for networking-focused deployments, Armbian for enhanced compatibility, and minimal distributions like Alpine Linux for extremely resource-constrained scenarios. All distributions leverage the mainline Linux kernel with LTS support, ensuring long-term compatibility and security updates. You can also run custom embedded Linux distributions compiled with Buildroot or Yocto for specialized applications requiring minimal footprint and maximum customization.
Is NanoPi Neo-LTS suitable for outdoor and harsh industrial environments?
Yes, the passive fanless design, industrial-grade components, and wide operating temperature range (0-60°C) make it suitable for outdoor deployments. However, protect the board from moisture, dust, and direct sunlight using appropriate enclosures rated for outdoor use. Use conformal coating on the PCB if exposed to high humidity or salt spray environments. Implement redundant power supplies with automatic failover, and consider adding watchdog timers to ensure automatic recovery from power interruptions. For extreme environments, validate component specifications against your specific temperature, humidity, and vibration requirements.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Why Buy from The Engineer Store
- Genuine Products: Sourced directly from authorized distribut
Buy NanoPi Neo-LTS Online in India
Purchase the NanoPi Neo-LTS online at The Engineer Store, India's trusted source for genuine electronics. We deliver across Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat.
Our team in Bengaluru is available 24/7 to support your journey from product selection to project completion.
