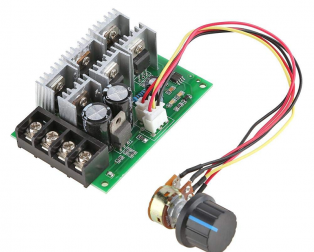

1200W PWM Motor Speed Controller with Potentiometer
1200W PWM Motor Speed Controller with Potentiometer
This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance, and stable performance. It is made with a high-quality circuit board which ensures a longer service life.
The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. Speed Regulator is an important electronic DIY equipment.
Do not touch the heat sink with the wiring. If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up. There is no change in the output of the multimeter without the motor.
Features:
- Maximum Power: 1200W
- The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM).
- The knob realizes 0-100% adjustment, supports step-less speed regulation, and facilitates positioning speed.
Package Includes:
- 1 x 1200W PWM Speed Controller
Specifications:
| Input voltage | DC10-60V |
| Output current | 0-20A |
| Power | 1200W |
| Speed adjustment range | 0-100% |
| Control frequency | 25KHZ |
| Wiring type | Barrier terminal block |
| Size | 7.7 x 7.3 x 4cms |
| Weight | 75 grams |
