35A 2-5S BLHELI_S 4 in 1 ESC

The 35A 2-5S BLHELI_S 4 in 1 ESC is a quad-motor electronic speed controller designed for racing drones, FPV quadcopters, and lightweight aerial platforms requiring synchronized motor control across 2-5S LiPo battery configurations. Professional drone pilots and FPV racing enthusiasts rely on this controller to achieve precise throttle response, low latency, and stable flight dynamics in competitive and recreational applications. This integrated 4-in-1 solution eliminates the need for separate ESCs, reducing weight, wiring complexity, and potential failure points while delivering consistent power distribution to all four motors simultaneously.

Product Overview

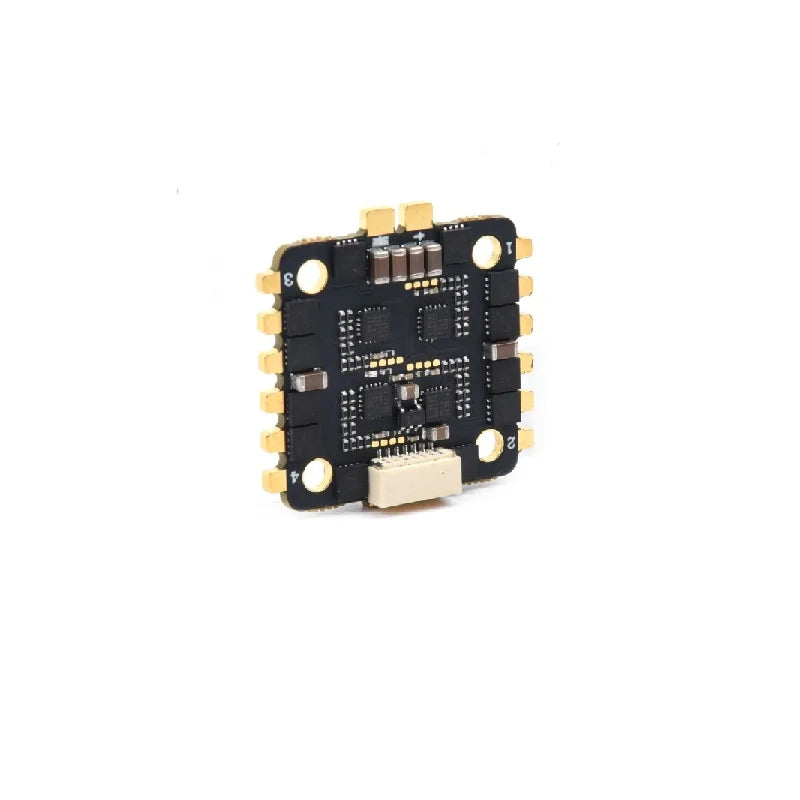

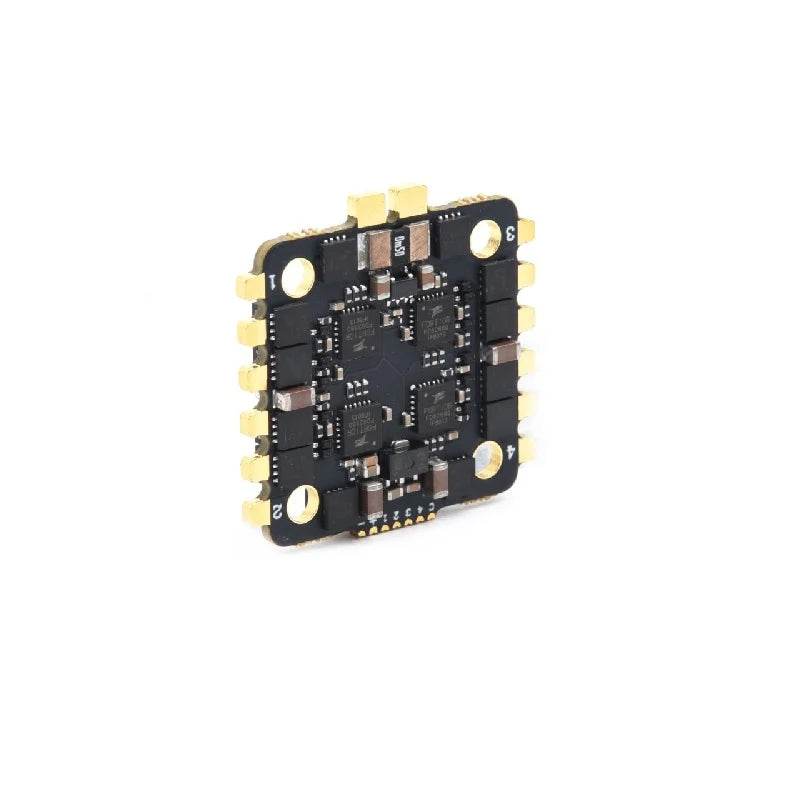

The BLHELI_S 4 in 1 ESC represents the evolution of brushless motor control technology, consolidating four independent motor controllers into a single compact PCB unit. Each channel operates at 35 amperes continuous current capacity, enabling the controller to handle high-performance brushless motors commonly found in racing drones and acrobatic quadcopters. The BLHELI_S firmware provides advanced features including active freewheeling, damped light mode, and programmable throttle curves that optimize motor response across varying flight conditions. The 2-5S LiPo compatibility ensures flexibility across battery configurations, from lightweight 2S setups for micro drones to power-intensive 5S builds for aggressive racing platforms.

This controller integrates four synchronized channels with individual current sensing and protection circuits per motor, preventing cascading failures during high-demand maneuvers. The BLHELI_S firmware supports multiple communication protocols including PWM, OneShot125, and OneShot42, allowing seamless integration with modern flight controllers from leading manufacturers. Built-in low voltage cutoff protection safeguards LiPo batteries from over-discharge damage, while thermal management circuitry monitors junction temperatures and implements progressive throttle limiting if heat thresholds are exceeded. The compact form factor fits standard 30x30mm flight controller mounting patterns, making it ideal for space-constrained racing drone builds.

Key Specifications

Key Features

• 35A Continuous Current per Motor Channel with 50A burst capacity enabling aggressive acceleration and sustained high-speed flight maneuvers without thermal throttling
• BLHELI_S Firmware with damped light mode and active freewheeling for reduced motor cogging, smoother throttle response, and improved flight stability during precision acrobatics
• Integrated 4 in 1 Design eliminating four separate ESCs, reducing total system weight by 40-50 percent and minimizing wiring failure points in compact racing drone builds
• 2-5S LiPo Compatibility providing voltage flexibility from 7.4V micro configurations to 18.5V high-performance racing setups with automatic cell count detection
• Per-Channel Current Sensing and Protection with individual thermal monitoring preventing single motor failure from affecting remaining three channels
• OneShot Protocol Support enabling 32kHz PWM refresh rates for ultra-responsive throttle control and reduced latency in competitive FPV racing scenarios

Applications and Use Cases

• FPV Racing Drones utilizing 35A ESC channels to power high-KV brushless motors in 5-inch racing frames requiring sub-millisecond throttle response and sustained 100+ ampere total current draw
• Freestyle and Acrobatic Quadcopters benefiting from BLHELI_S firmware optimization for smooth inverted flight, barrel rolls, and dynamic maneuver execution with consistent motor braking characteristics
• Lightweight 2S Micro Racing platforms leveraging the 2-5S voltage range to power 1104-1306 brushless motors in sub-250 gram drone configurations for indoor racing competitions
• Commercial Cinematography Drones requiring synchronized motor control across 4S-5S battery configurations with thermal protection ensuring reliable operation during extended aerial filming missions

How to Use

Begin by identifying your flight controller's motor output pins and connecting each ESC channel to the corresponding motor output using three-wire servo connectors. Ensure correct motor rotation direction by verifying the three-phase motor wires are connected in the proper sequence; reverse any two wires if a motor spins backward during the initial throttle test. Connect the power distribution board to the ESC's integrated power input, ensuring correct polarity with the red wire to positive and black wire to negative. Program your flight controller with the BLHELI_S configuration tool, selecting your specific ESC variant and setting the throttle protocol to match your flight controller's output format, typically OneShot125 for modern racing drones or standard PWM for older systems.

Calibrate the throttle range by connecting your battery with props removed, advancing the transmitter throttle stick to maximum, then powering on the ESC until you hear two confirmation beeps indicating successful calibration. Set your low voltage cutoff threshold in the flight controller firmware to 3.0V per cell to prevent LiPo over-discharge damage. Test motor response at low throttle levels before flying, listening for smooth motor startup without stuttering or grinding sounds. Monitor ESC temperature during the first few flights, particularly during sustained high-throttle maneuvers, and reduce motor KV or increase propeller size if thermal protection activates repeatedly. Update BLHELI_S firmware regularly using the configuration tool to access performance improvements and compatibility updates for newer flight controller variants.
