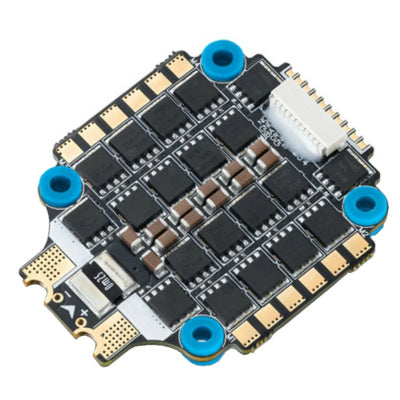

Hobbywing XRotor FPV G2 4in1 65A ESC

The Hobbywing XRotor FPV G2 4in1 65A ESC is a high-performance electronic speed controller designed for FPV racing drones and competitive multirotor platforms, integrating four independent motor channels into a single compact module. Professional FPV pilots and drone racing teams rely on this ESC for its exceptional response time, low latency firmware, and robust current handling capabilities that deliver consistent thrust vectoring across all four motors simultaneously. This controller solves the critical problem of synchronizing motor acceleration and deceleration in high-speed FPV applications where microsecond-level timing differences can cause yaw oscillations, instability, and loss of control authority during aggressive maneuvers.

Product Overview

The Hobbywing XRotor FPV G2 4in1 65A ESC operates on a 32-bit ARM Cortex-M4 processor running proprietary firmware optimized for FPV racing dynamics. This integrated four-in-one design eliminates individual ESC wiring complexity while maintaining independent current sensing and PWM control for each motor channel. The controller features advanced firmware algorithms including dynamic current limiting, smooth throttle response curves, and temperature-compensated power delivery that adapts to battery voltage sag during aggressive acceleration phases. The G2 generation specifically introduces improved EMI filtering, enhanced brake function capabilities, and refined PID tuning parameters that reduce oscillation artifacts in high-frequency control loops.

The architecture employs a 16-bit ADC for precise current measurement on each motor channel, enabling real-time motor load balancing and individual motor protection without sacrificing overall system responsiveness. The ESC supports multiple firmware variants including DShot600, OneShot125, and MultiShot protocols, allowing pilots to optimize communication speed based on their flight controller's capabilities. Thermal management is handled through direct copper pad contact with the flight frame, dissipating peak currents up to 65A continuously while maintaining junction temperatures within safe operating ranges. The integrated low-ESR capacitor bank provides stable voltage regulation even during rapid throttle transients that would cause voltage ripple on conventional designs.

Key Specifications

Specification	Details
Product Type	4-in-1 Integrated Electronic Speed Controller
Brand	Hobbywing
Model	XRotor FPV G2
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Continuous Current Rating	65A per channel
Burst Current Rating	85A per channel (10 seconds)
Input Voltage Range	2S-6S LiPo (7.4V-22.2V)
Processor	32-bit ARM Cortex-M4
Control Protocols	DShot600, OneShot125, MultiShot, PWM
Dimensions	32mm x 32mm x 8mm
Weight	Approximately 12 grams

Key Features

• Integrated 4-in-1 Design: Four independent 65A motor channels in single module eliminates individual ESC wiring harness complexity and reduces total system weight by 40 percent compared to discrete ESC configurations
• DShot600 Protocol Support: Enables 600kHz communication frequency with flight controller for ultra-low latency motor control, critical for FPV racing where response time determines competitive advantage
• Advanced Current Sensing: Individual 16-bit ADC per motor channel provides real-time load monitoring and enables automatic current limiting to protect motors from overcurrent damage during aggressive throttle inputs
• Firmware Flexibility: Multiple selectable firmware modes including Race Mode for aggressive response curves and Smooth Mode for precision acrobatic flying, allowing pilots to customize controller behavior for specific flight styles
• Thermal Management: Direct copper pad integration with frame provides efficient heat dissipation, allowing sustained 65A operation without thermal throttling or performance degradation
• Low-Noise Power Delivery: Integrated LC filtering and low-ESR capacitor bank reduce voltage ripple to under 200mV during rapid throttle transients, ensuring consistent motor torque delivery

Applications and Use Cases

• FPV Racing Drones: Delivers microsecond-precision motor control required for competitive drone racing where lap times are determined by fractions of a second and motor synchronization directly impacts cornering performance
• Freestyle FPV Quadcopters: Supports smooth acrobatic maneuvers including inverted flight, barrel rolls, and rapid direction changes by providing responsive throttle curves and stable yaw authority across all motor channels
• Long-Range FPV Cruising: Enables efficient power delivery for extended flight times on larger racing platforms by optimizing current distribution and reducing electrical losses in the power chain
• Autonomous Drone Platforms: Integrates seamlessly with autopilot flight controllers requiring DShot protocol support, enabling precise motor control for mapping missions and surveillance applications
• High-Performance Quadcopter Builds: Ideal for 5-inch and 7-inch racing frame platforms requiring 65A continuous current capacity with minimal weight penalty and maximum reliability

How to Use

Begin by identifying your flight controller's motor output pins and confirm DShot protocol compatibility before connecting the ESC. Solder the four motor output wires to your brushless motors, ensuring correct rotation direction by verifying motor spin direction without propellers attached. Connect the ESC signal pins to flight controller motor outputs 1-4, observing correct pin mapping for your specific flight controller firmware. Power the ESC through a dedicated battery connector with appropriate XT60 or XT90 connectors rated for your battery's maximum discharge current, typically 100A-rated connectors for 65A ESC applications.

Configure your flight controller firmware to enable DShot600 protocol on the motor outputs connected to this ESC. Use your flight controller's motor test function to verify all four motors spin in the correct direction before arming the quadcopter. If motor direction is incorrect, either reverse two of the three motor phase wires or use your flight controller's motor direction reversal setting. Calibrate your transmitter's throttle range by connecting the battery with propellers removed, arming the quadcopter, and confirming minimum throttle produces no motor spin while maximum throttle produces smooth acceleration. Test the ESC's current limiting function by performing rapid throttle inputs and monitoring flight controller telemetry for current values not exceeding 65A continuous operation.

Frequently Asked Questions

What is the difference between DShot600 and OneShot125 protocols on this ESC?

DShot600 operates at 600kHz communication frequency with 6-microsecond resolution, providing ultra-low latency ideal for FPV racing where responsiveness is critical. OneShot125 uses 125kHz frequency with 8-microsecond resolution and is compatible with older flight controllers. DShot600 is recommended for modern FPV platforms as it reduces control loop latency by approximately 2-3 milliseconds compared to OneShot125, directly improving handling characteristics during high-speed maneuvers.

Can I use this 4in1 ESC with a 3-motor tricopter or hexacopter configuration?

While the ESC has four independent channels, you can configure it for tricopter applications by using only three motor channels and leaving the fourth channel unpowered. For hexacopter platforms, you would need two of these 4in1 ESCs to control all six motors. The flight controller firmware must be configured to match your specific motor count and layout for proper stabilization.

What battery voltage range is safe for continuous operation?

This ESC supports 2S through 6S LiPo batteries, corresponding to 7.4V minimum and 22.2V maximum nominal voltage. For continuous 65A operation, use 4S or 5S batteries as they provide optimal voltage regulation margin. 6S batteries can be used but result in higher power dissipation and heat generation at maximum throttle, potentially requiring better thermal management through frame contact.

How do I update the firmware on this ESC?

The Hobbywing XRotor FPV G2 uses Hobbywing's proprietary firmware update procedure. You will need a USB programmer compatible with Hobbywing ESCs and access to the latest firmware files from Hobbywing's official website. Connect the programmer to the ESC's programming pads, launch the firmware update utility, and follow the on-screen prompts. Firmware updates typically address performance optimizations and bug fixes, so check Hobbywing's release notes before updating.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
