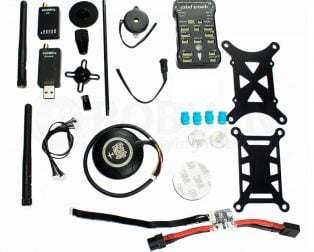

Pixhawk 2.4.8 Basic Flight Controller kit with GPS Module

The Pixhawk 2.4.8 is a professional-grade autopilot flight controller designed for autonomous aerial vehicles, multi-rotor drones, and fixed-wing aircraft requiring advanced stabilization and navigation capabilities. This kit is widely adopted by drone developers, roboticists, and aerospace engineers who need a reliable, open-source flight management system with real-time sensor fusion and GPS-based autonomous flight control. It solves critical challenges in autonomous flight including attitude stabilization, altitude hold, GPS waypoint navigation, and failsafe operations through its dual-redundant IMU architecture and comprehensive sensor integration ecosystem.

Product Overview

The Pixhawk 2.4.8 flight controller operates on the principle of real-time sensor data fusion, combining inputs from accelerometers, gyroscopes, magnetometers, and barometric pressure sensors to compute precise aircraft attitude and altitude estimates. The system runs the ArduPilot or PX4 firmware stack, which implements sophisticated control algorithms including PID-based attitude control, complementary filtering for orientation estimation, and Kalman filtering for sensor fusion. The dual-redundant IMU configuration provides exceptional reliability by continuously comparing sensor outputs and automatically switching to backup sensors if primary sensors fail, making it ideal for mission-critical applications where flight safety is paramount.

The integrated GPS module enables absolute position tracking with accuracy within 2-3 meters, enabling autonomous waypoint navigation, return-to-home functionality, and geofencing capabilities. The Pixhawk 2.4.8 distinguishes itself through its modular architecture, supporting up to 8 PWM output channels for motor/servo control, multiple communication interfaces including UART, I2C, and SPI for sensor expansion, and a robust power management system with integrated battery monitoring. The kit includes comprehensive documentation and community support through the ArduPilot and PX4 development communities, making it an excellent choice for both hobbyists scaling to professional applications and experienced developers requiring customizable flight control solutions.

Key Specifications

Specification	Details
Product Type	Autopilot Flight Controller with Integrated GPS
Brand	3DR Pixhawk
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Processor	STM32F427 ARM Cortex-M4 at 168 MHz
IMU Configuration	Dual redundant 6-axis IMU sensors
GPS Module	u-blox NEO-M8N with compass integration
PWM Output Channels	8 channels for motor and servo control
Communication Interfaces	UART, I2C, SPI, CAN bus support
Operating Voltage	4.75V to 5.25V with internal regulation
Current Draw	Approximately 850mA at full operation

Key Features

• Dual Redundant IMU Architecture: Continuous sensor comparison and automatic failover ensures uninterrupted flight stability even if primary sensors malfunction during critical flight phases
• High-Performance GPS Integration: u-blox NEO-M8N module with 10 Hz update rate provides precise global positioning for autonomous waypoint navigation and return-to-home functions with 2-3 meter accuracy
• Advanced Sensor Fusion: Complementary and Kalman filtering algorithms combine accelerometer, gyroscope, magnetometer, and barometric data for accurate real-time attitude and altitude estimation
• Modular I/O Expansion: Multiple communication buses including UART, I2C, and SPI enable seamless integration of additional sensors such as optical flow cameras, rangefinders, and airspeed sensors
• Open-Source Firmware Support: Compatible with ArduPilot and PX4 flight stacks, providing access to thousands of community-developed features and continuous firmware updates
• Integrated Power Management: Built-in battery monitoring with voltage and current measurement enables real-time power status telemetry and low-battery failsafe triggers

Applications and Use Cases

• Autonomous Quadcopter Development: Ideal for building custom multi-rotor platforms requiring stable hover, altitude hold, and GPS-guided autonomous missions for aerial photography and surveying applications
• Fixed-Wing UAV Systems: Supports fixed-wing aircraft control with advanced features like auto-takeoff, auto-landing, and cross-track error correction for long-range autonomous flights
• Agricultural Drone Mapping: Enables precision agriculture applications with autonomous grid-based flight patterns, real-time geolocation tagging, and return-to-home safety features for crop monitoring
• Research and Education: Widely used in robotics labs and aerospace engineering courses for teaching autonomous flight control, sensor fusion algorithms, and real-time embedded systems development
• Industrial Inspection: Supports payload integration for thermal imaging, LiDAR scanning, and visual inspection of infrastructure with autonomous flight planning and GPS-based position holding

How to Use

Begin by assembling the Pixhawk 2.4.8 kit by connecting the GPS module to the designated GPS port, mounting the flight controller on vibration-dampening foam to minimize sensor noise, and connecting your power distribution board to the power input connector. Install the appropriate firmware using the Mission Planner or QGroundControl software on your computer, then perform mandatory calibration procedures including accelerometer calibration on level ground, compass calibration using figure-eight maneuvers, and radio receiver calibration to establish correct control input mappings.

Once calibration is complete, configure your vehicle parameters including motor direction, servo output assignments, and failsafe behaviors through the ground control station interface. Before first flight, perform a comprehensive pre-flight check including GPS lock verification (minimum 10 satellites), radio link quality confirmation, and battery voltage validation. Start with manual flight mode to verify control responsiveness, then gradually transition to assisted modes like altitude hold before attempting fully autonomous missions. Always maintain visual line of sight during initial testing and use geofencing features to establish safe operational boundaries.

Frequently Asked Questions

What is the difference between Pixhawk 2.4.8 and earlier versions?

The Pixhawk 2.4.8 features improved thermal stability with better component selection, enhanced EMI filtering for cleaner sensor signals, and refined firmware compatibility with both ArduPilot and PX4 stacks. The dual redundant IMU configuration provides superior reliability compared to single-IMU designs, and the integrated GPS module eliminates the need for external GPS connections, reducing wiring complexity and potential connection failures.

Can I use Pixhawk 2.4.8 with my existing drone frame?

Yes, the Pixhawk 2.4.8 is frame-agnostic and compatible with any multi-rotor or fixed-wing platform that can accommodate a standard flight controller. You will need to configure motor assignments, calibrate your specific airframe parameters, and ensure your power distribution board can supply the required current. Consult the ArduPilot or PX4 documentation for your specific airframe type for detailed setup instructions.

What sensors are included in the basic kit?

The basic kit includes the Pixhawk 2.4.8 flight controller with dual IMU, barometric pressure sensor, compass, and the u-blox NEO-M8N GPS module. Additional sensors like optical flow cameras, rangefinders, or airspeed sensors can be added through the expansion ports if your application requires them.

How do I update the firmware on Pixhawk 2.4.8?

Connect the flight controller to your computer via USB cable and use Mission Planner or QGroundControl software to access the firmware update interface. Select your vehicle type, choose the latest stable firmware version, and click upload. The process typically takes 2-3 minutes. Always backup your current parameters before updating firmware.

What is the maximum flight time with Pixhawk 2.4.8?

Flight time depends entirely on your airframe, battery capacity, and payload weight, not on the flight controller itself. The Pixhawk 2.4.8 draws approximately 850mA during operation. For a typical quadcopter with a 5000mAh battery, you can expect 15-25 minutes of flight time depending on flying style and weather conditions.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
