Waveshare Industrial RS232/RS485 to Ethernet Converter - Modbus Support (With Power Adapter)
- Unit price
- / per
Waveshare Industrial RS232/RS485 to Ethernet Converter Modbus gateway, Websocket (webpage to serial)
The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.
Package Includes :
- RS232/485 TO ETH x1
- 5V power adapter (EU plug) x1
- Ethernet cable x1
- Male-to-Female serial cable x1
- Female-to-Female serial cable x1
Resources:
Features :
- -M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
- -10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
- -Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
- -Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
- -Multi indicators, for monitoring communicating and working status
- -Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
- -Supports Modbus, suit for industrial application
- -Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
- -Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
- -Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
- -Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
- -Supports customized webpage, allows user to customize the module configuration page
- -Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
- -KeepAlive mechanism, detects broken connection, auto re-connecting
- -Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
- -Supports DNS domain name resolution, configurable DNS server
- -Supports DHCP, auto-obtained IP or static IP
- -Firmware is upgradable via the network
- -Restore to factory settings via software and/or hardware
- -Comes with default MAC address, which is customizable
- -Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- -Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc
Specifications :
Ethernet:
Connector: 4-pin RJ45
Communication rate: 10/100Mbps
Interface protection: 2KV electromagnetic isolation
Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket
TX cache: 16Kbyte
RX cache: 16Kbyte
RS485/RS232:
Connector:
RS485: screw terminal (A+, B-, GND)
RS232: DB9 male
Data bit: 5bit, 6bit, 7bit, 8bit
Stop bit: 1, 2
Parity bit: None, Odd, Even, Mark, Space
Baudrate: 600bps~230.4Kbps
TX cache: 2Kbyte
RX cache: 2Kbyte
Hardware flow control: RTS/CTS
Interface protection:
RS485: 2KV ESD protection, lightning-proof, anti-surge, over-current protection
RS485 pull up/down registers: 2.2KΩ
Power:
Power supply: 5.0~36.0V (5V recommended)
Operating current: 86.5mA (@5V)
Power consumption: <1W
Interface protection: reverse-proof, ESD protection, anti-surge
Environment:
Operating temperature: -40~85°C
Storage temperature: -40~105
Waveshare Industrial RS232/RS485 to Ethernet Converter - Modbus Support (With Power Adapter)
- Unit price
- / per
Adding product to your cart
You may also like
Waveshare Industrial RS232/RS485 to Ethernet Converter Modbus gateway, Websocket (webpage to serial)
The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.
Package Includes :
- RS232/485 TO ETH x1
- 5V power adapter (EU plug) x1
- Ethernet cable x1
- Male-to-Female serial cable x1
- Female-to-Female serial cable x1
Resources:
Features :
- -M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable
- -10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
- -Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other
- -Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
- -Multi indicators, for monitoring communicating and working status
- -Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
- -Supports Modbus, suit for industrial application
- -Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly
- -Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
- -Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
- -Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
- -Supports customized webpage, allows user to customize the module configuration page
- -Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
- -KeepAlive mechanism, detects broken connection, auto re-connecting
- -Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
- -Supports DNS domain name resolution, configurable DNS server
- -Supports DHCP, auto-obtained IP or static IP
- -Firmware is upgradable via the network
- -Restore to factory settings via software and/or hardware
- -Comes with default MAC address, which is customizable
- -Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- -Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc
Specifications :
Ethernet:
Connector: 4-pin RJ45
Communication rate: 10/100Mbps
Interface protection: 2KV electromagnetic isolation
Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket
TX cache: 16Kbyte
RX cache: 16Kbyte
RS485/RS232:
Connector:
RS485: screw terminal (A+, B-, GND)
RS232: DB9 male
Data bit: 5bit, 6bit, 7bit, 8bit
Stop bit: 1, 2
Parity bit: None, Odd, Even, Mark, Space
Baudrate: 600bps~230.4Kbps
TX cache: 2Kbyte
RX cache: 2Kbyte
Hardware flow control: RTS/CTS
Interface protection:
RS485: 2KV ESD protection, lightning-proof, anti-surge, over-current protection
RS485 pull up/down registers: 2.2KΩ
Power:
Power supply: 5.0~36.0V (5V recommended)
Operating current: 86.5mA (@5V)
Power consumption: <1W
Interface protection: reverse-proof, ESD protection, anti-surge
Environment:
Operating temperature: -40~85°C
Storage temperature: -40~105
You may also like
You may also like
Recommended products
Industrial Grade Serial Server RS232/485 To WiFi and Ethernet, Modbus Gateway, MQTT Gateway, Support POE Function, Metal Case
Regular price
Rs. 5,200.00
Rs. 3,180.00
Save 39%
- Unit price
- / per
Regular price
Rs. 5,200.00
Rs. 3,180.00
Save 39%
- Unit price
- / per
In stock
Waveshare Industrial RS485 to Ethernet Converter (EU)- Power Supply Included
Regular price
Rs. 3,654.00
Rs. 2,412.00
Save 34%
- Unit price
- / per
Regular price
Rs. 3,654.00
Rs. 2,412.00
Save 34%
- Unit price
- / per
In stock
RS232 RS485 to RJ45 Ethernet Serial Server, RS232 And RS485 Dual Channels Independent Operation, Dual Ethernet Ports With POE Function
Regular price
Rs. 4,585.00
Rs. 3,180.00
Save 31%
- Unit price
- / per
Regular price
Rs. 4,585.00
Rs. 3,180.00
Save 31%
- Unit price
- / per
In stock
2-Ch RS485 to RJ45 Ethernet Serial Server, Dual channels RS485 independent operation, Dual Common Ethernet Ports
Regular price
Rs. 5,999.00
Rs. 2,940.00
Save 51%
- Unit price
- / per
Regular price
Rs. 5,999.00
Rs. 2,940.00
Save 51%
- Unit price
- / per
In stock
2-Ch RS485 to RJ45 Ethernet Serial Server, Dual channels RS485 independent operation With POE Ethernet Ports
Regular price
Rs. 6,999.00
Rs. 3,140.00
Save 55%
- Unit price
- / per
Regular price
Rs. 6,999.00
Rs. 3,140.00
Save 55%
- Unit price
- / per
In stock
Industrial serial server, RS232 to RJ45 Ethernet, TCP/IP to serial, rail-mount support
Regular price
Rs. 1,999.00
Rs. 1,904.00
Save 5%
- Unit price
- / per
Regular price
Rs. 1,999.00
Rs. 1,904.00
Save 5%
- Unit price
- / per
In stock
USR-TCP232-E2 Dual Serial UART TTL to Ethernet Converter Module
Regular price
Rs. 2,563.00
Rs. 1,597.00
Save 38%
- Unit price
- / per
Regular price
Rs. 2,563.00
Rs. 1,597.00
Save 38%
- Unit price
- / per
In stock

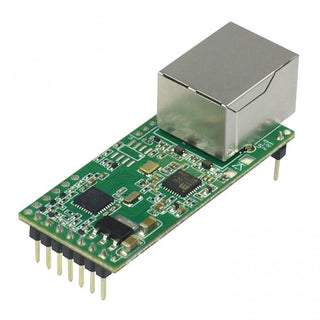

USR-TCP232-T2 - Serial UART TTL to Ethernet TCP/IP UDP Converter Module
