• Integrated digital FPV system.
• Ultra-lightweight: Camera (3.5g), Vista VTX (20.8g).
• High-resolution 720p at 120fps.
• Super low latency (21-28ms end-to-end).
• Switchable 4:3 / 16:9 aspect ratio.
• Wide 150° diagonal field of view (FOV).
• Compatible with DJI FPV Goggles (V1/V2).
• Max transmission distance up to 4km (FCC/SRRC).
• Supports 8 drones flying simultaneously.
• Adjustable power output (25mW to 700mW).

• Model: Nebula pro nano vista kit
• Weight: Vista Kit(camera included): 23g, Antenna: 1.5g
• Dimensions: Vista Kit: 30x29x13mm, Camera: 14x16x16.5mm, Coaxial Cable: 80mm
• Operating Frequency: 5.725-5.850GHz
• Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
• Min.latency(end-to-end): Low latency mode 720p 120fps: 21-28ms, High quality mode 720p 60fps: 30-40ms
• Max.Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
• I/O Interface: USB-C, IPEX, 3-in-1 port
• Supported Flight Control System: F3.F4.F7
• Operating Temperature Range: 32° to 104°F (0° to 40°C)
• Input Power: 7.4-26.4V
• Power Output: 25mW/200mW/500mW/700mW
• Hardware Included: Nebula pro nano vista kit /m2 screw/ 3-in-1 cable/antenna
• Goggles: Work with DJI goggles
• Camera: Sensor: 1/3 Inch sensor, aperture: F/2.0, Shutter: Rolling shutter, ISO: 100-25600, FOV: 150°(D); 122°(H); 93°(V)

• Manufacturer: CaddxFPV
• Brand: Caddx
• Generic Name: Digital FPV System || FPV Video Transmitter || Drone Camera & VTX Combo || Digital FPV Kit || HD FPV System || DJI Compatible FPV || Video Transmission Module || FPV Air Unit || Mini FPV System || Micro FPV System

• Ideal For: Micro FPV Drones || Toothpick Drones || 3-inch, 4-inch, 5-inch FPV Racing Drones || Freestyle FPV Flying || Cinematic FPV (lighter builds) || DJI Digital FPV Goggles Users || Custom Drone Builds where weight and size are critical || Pilots seeking low latency HD visuals for competitive or immersive flying.

Includes:

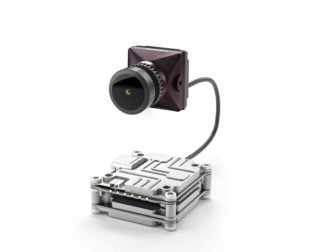

• 1 x Caddx Nebula Pro Nano Vista kit
• 1 x 3-in-1 Cable (for connecting to FC)
• 1 x User Manual
• Mounting Screws (M2 screws)

Q1. What FPV goggles are compatible with the Caddx Nebula Pro Nano Vista Kit?

Ans. This kit is fully authorized by DJI and is designed to be compatible with DJI FPV Goggles (both V1 and V2 models) for a digital high-definition FPV experience.

Q2. What are the main advantages of this kit for FPV drone pilots?

Ans. The key advantages include its ultra-lightweight design, high-resolution 720p/120fps video, incredibly low latency (21-28ms), long transmission range, and seamless integration with the DJI Digital FPV System, offering a superior FPV experience.

Q3. Can multiple drones equipped with the Caddx Nebula Pro Nano Vista Kit fly simultaneously?

Ans. Yes, the Vista system allows up to eight drones to fly simultaneously, with each operator having an exclusive channel to help reduce cross-interference and provide an optimal racing experience.
