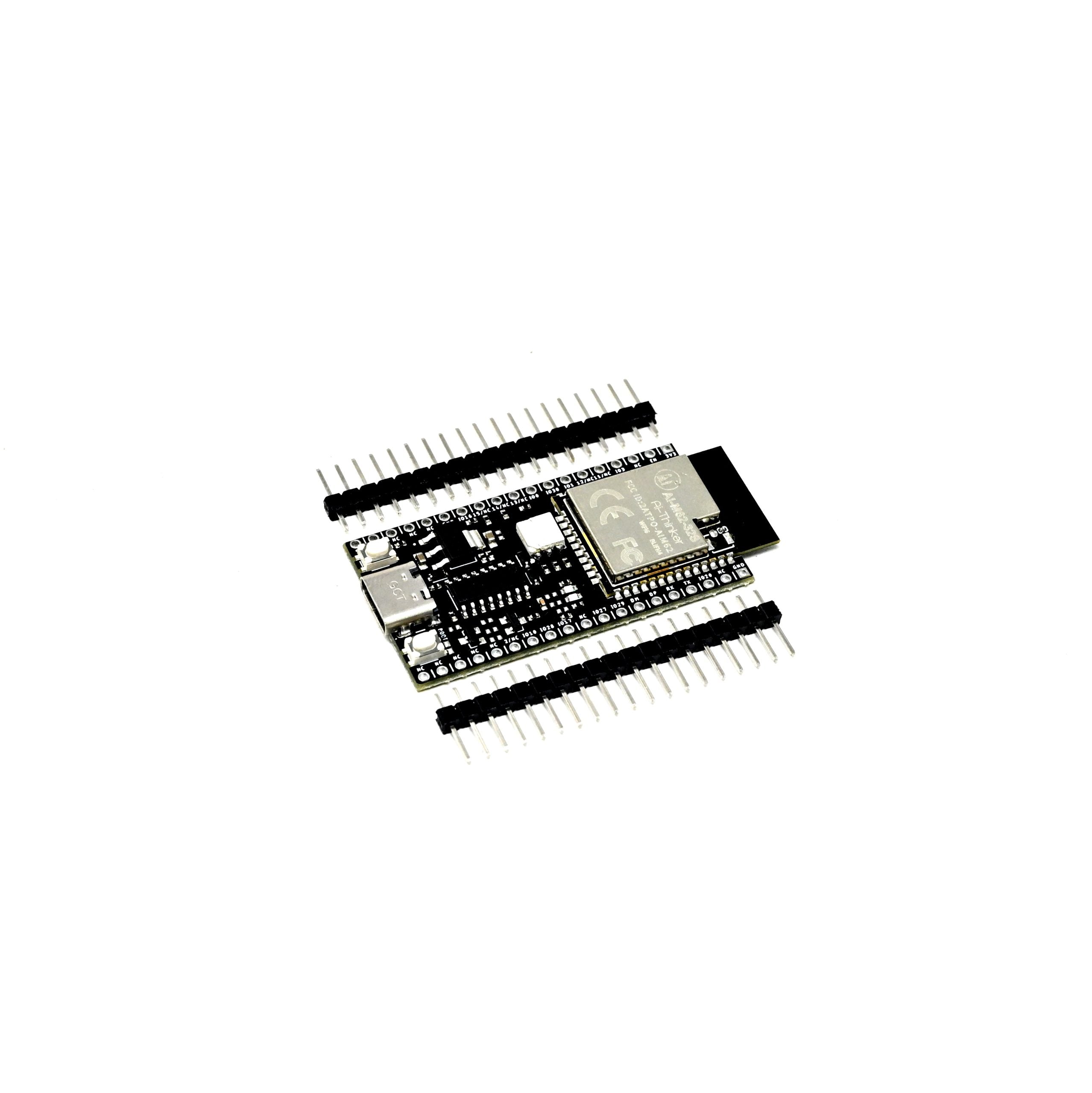

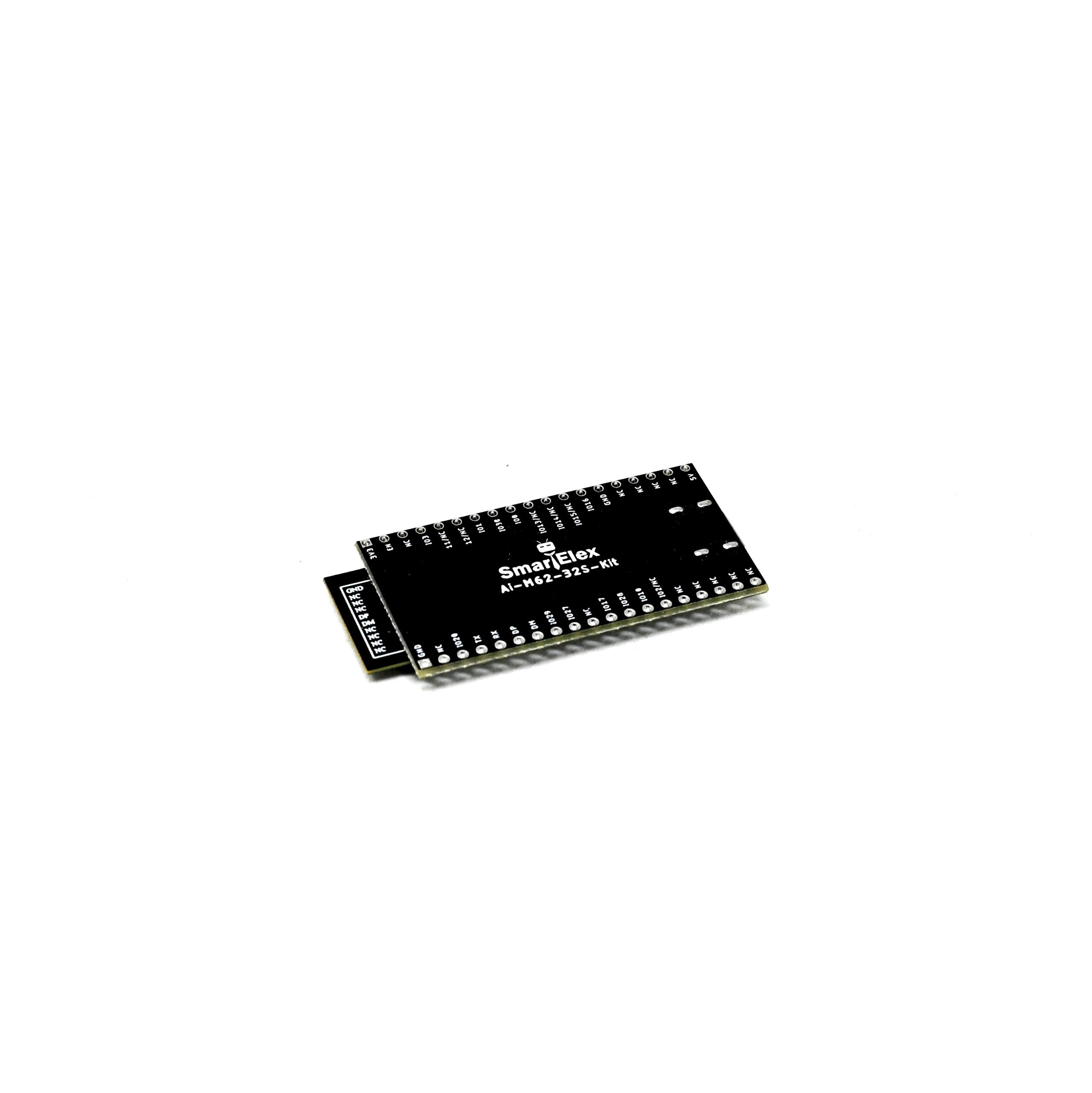

Ai-M62-32S is a Wi-Fi 6 + BLE5.3 module developed by Shenzhen Ai-Thinker TechnologyCo., Ltd. The module is equipped with BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320M. The Ai-M62-32S module has rich peripheral interfaces, including USB2.0, SDU, SD/ MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc. It can be widely used in audio and video multimedia, Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields. The Ai-M62-32S module Sec Eng module supports AES/SHA/PKA/TRNGand other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field.

Features:

•  Supports 2.4GHz operating frequency band
•  Support IEEE 802.11 B/g/n/ax
•  Support BLE5.3
•  Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
•  Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
•  Support STA, SoftAP, STA + SoftAP and sniffer modes
•  32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M
•  532KB SRAM,128KB ROM,4Kb eFuse
•  Support USB2.0, SDU, SD / MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc
