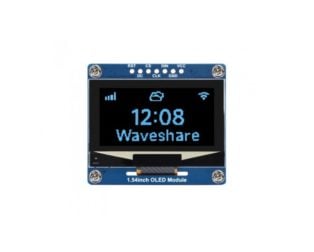

Waveshare 1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication white

The Waveshare 1.54inch OLED Display Module is a high-contrast monochrome display featuring 128x64 pixel resolution with dual communication interfaces (SPI and I2C), designed for embedded systems and IoT applications. Electronics engineers, hobbyists, and product developers use this module extensively in Arduino, Raspberry Pi, and STM32 microcontroller projects where compact, power-efficient visual feedback is critical. This module solves the challenge of integrating a crisp, fast-responding display into space-constrained applications while maintaining minimal power consumption and simple digital communication protocols.

Product Overview

The Waveshare 1.54inch OLED Display Module utilizes organic light-emitting diode technology where each pixel generates its own light independently, eliminating the need for a backlight. This self-emissive architecture delivers exceptional contrast ratios (typically 10000:1), true blacks, and wide viewing angles up to 160 degrees. The 128x64 pixel matrix provides sufficient resolution for displaying text, simple graphics, sensor readings, and status indicators in industrial monitoring, medical devices, and consumer electronics. The module operates at 3.3V logic levels with integrated voltage regulation, making it compatible with modern microcontroller ecosystems.

What distinguishes this Waveshare variant is its dual communication flexibility: the SPI interface enables high-speed data transmission for rapid screen updates (up to 10MHz clock speed), while the I2C interface provides a simplified two-wire connection for applications where pin count is limited. The white OLED variant produces bright, readable text and graphics against the dark background, ideal for battery-powered devices where the display can be selectively activated. Built-in charge pump circuitry manages the high voltages required for OLED operation, while the module includes all necessary decoupling capacitors and protection diodes for stable operation in noisy electrical environments.

Key Specifications

Specification	Details
Product Type	OLED Display Module
Brand	Waveshare
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Display Size	1.54 inches (diagonal)
Resolution	128 x 64 pixels
Display Type	Monochrome OLED (white on black)
Communication Protocols	SPI (4-wire) and I2C (2-wire)
Operating Voltage	3.3V DC
Power Consumption	Typically 20-30mA (varies with content)
Pixel Pitch	0.66mm
Viewing Angle	160 degrees (horizontal and vertical)
Response Time	Less than 10 microseconds
Operating Temperature	-30 to +70 degrees Celsius
Module Dimensions	27.3mm x 27.3mm x 4.3mm
PCB Dimensions	27.3mm x 27.3mm
Interface Connector	0.1 inch pitch header pins

Key Features

• High Contrast OLED Technology: Delivers exceptional contrast ratios with true blacks and bright white pixels, ensuring excellent readability in both bright and dark environments without requiring a backlight
• Dual Communication Interfaces: Supports both SPI (high-speed, up to 10MHz) and I2C (simplified two-wire) protocols, allowing flexible integration with various microcontroller platforms and pin configurations
• Low Power Consumption: Typical current draw of 20-30mA enables extended battery life in portable and IoT applications, with the ability to selectively power down the display module
• Wide Viewing Angles: 160-degree horizontal and vertical viewing angles ensure consistent image quality and readability from multiple perspectives without color shift or contrast degradation
• Fast Response Time: Sub-10 microsecond pixel switching enables smooth animation and real-time data visualization without ghosting or motion artifacts
• Compact Form Factor: 27.3mm x 27.3mm footprint with integrated controller and all necessary support circuitry, minimizing PCB space requirements in embedded designs
• 3.3V Logic Compatible: Direct compatibility with modern microcontroller platforms including Arduino, Raspberry Pi, STM32, ESP8266, and ESP32 without level shifting requirements

Applications and Use Cases

• IoT Environmental Monitoring: Display real-time temperature, humidity, and air quality sensor readings on battery-powered wireless nodes, with the OLED module consuming minimal power during standby periods
• Portable Medical Devices: Integrate into pulse oximeters, glucose monitors, and portable ECG devices where compact size, low power consumption, and high contrast are essential for patient safety and readability
• Arduino and Raspberry Pi Projects: Ideal for educational robotics, home automation dashboards, weather stations, and maker projects requiring visual feedback without complex display drivers
• Industrial Control Panels: Deploy in compact industrial equipment, PLC interfaces, and field instruments for displaying system status, error codes, and parameter values in harsh environments
• Wearable Electronics: Integrate into smartwatches, fitness trackers, and health monitoring wearables where ultra-low power consumption and small form factor are critical design constraints
• Vehicle Telematics: Use in automotive dashboards, GPS navigation displays, and vehicle diagnostic interfaces where sunlight readability and reliability in temperature extremes are required

How to Use

To integrate the Waveshare 1.54inch OLED Display Module into your project, first identify your preferred communication protocol: SPI offers faster refresh rates suitable for animations and dynamic content, while I2C requires fewer pins and is ideal for space-constrained applications. For SPI mode, connect the module's CLK, MOSI, CS, DC, and RST pins to your microcontroller's corresponding SPI pins (typically SPI0 on Raspberry Pi or hardware SPI pins on Arduino). For I2C mode, connect only SCL and SDA to your microcontroller's I2C bus, along with power and ground. Install the appropriate library for your platform: Waveshare provides official libraries for Arduino IDE, Raspberry Pi (Python), and other embedded systems. Initialize the display by specifying the communication protocol, then use the library functions to draw pixels, lines, text, and images to the frame buffer before calling the display update function to refresh the OLED panel.

For optimal performance, ensure proper decoupling of the 3.3V supply with a 100nF ceramic capacitor placed close to the module's power pins to minimize noise and prevent flickering. If experiencing communication issues, verify your I2C address (typically 0x3C or 0x3D) using an I2C scanner sketch, or confirm SPI clock polarity and phase settings match your microcontroller's configuration. The module supports partial updates, allowing you to refresh only changed regions of the display to reduce power consumption and improve responsiveness. For battery-powered applications, implement display sleep modes or selective activation to extend operational lifetime, as the OLED can consume 50-100mA when displaying full white content.

Frequently Asked Questions

What is the difference between SPI and I2C communication on this OLED module?

SPI (Serial Peripheral Interface) provides faster data transmission speeds up to 10MHz, enabling rapid full-screen refreshes and smooth animations, but requires four signal lines (CLK, MOSI, CS, DC) plus reset. I2C (Inter-Integrated Circuit) uses only two signal lines (SCL, SDA), simplifying wiring and reducing microcontroller pin usage, but operates at slower speeds (typically 100-400kHz), making it suitable for static content and periodic updates. Choose SPI for real-time graphics and video-like content, and I2C for simple text displays and sensor readouts where speed is not critical.

Can I use this OLED module with 5V microcontrollers like Arduino Uno?

The Waveshare 1.54inch OLED module is designed for 3.3V logic levels and should not be directly connected to 5V outputs without level shifting, as this can damage the module's input circuitry. For Arduino Uno and other 5V platforms, use a logic level shifter (such as a TXB0108 or similar bi-directional converter) on the SPI CLK, MOSI, DC, and CS lines, or the I2C SCL and SDA lines. Alternatively, use 3.3V-native microcontrollers like Arduino Due, Arduino MKR series, or Raspberry Pi for direct compatibility without additional components.

What is the typical power consumption and battery life for this display module?

The module consumes approximately 20-30mA during normal operation with mixed content (text and graphics), but this varies significantly based on pixel density: displaying full white consumes up to 100mA, while displaying mostly black content consumes as little as 5-10mA. For battery-powered applications, implement display sleep modes or selective activation to achieve weeks or months of runtime from standard lithium batteries. For example, a 2000mAh battery powering a microcontroller and this display with periodic 1-second updates every 10 seconds could provide 5-7 days of continuous operation.

Is this module compatible with Raspberry Pi and Python programming?

Yes, the Waveshare 1.54inch OLED module is fully compatible with Raspberry Pi (all versions) and includes official Python libraries. Install the required libraries using pip (typically Adafruit-SSD1306 or Waveshare's own library), then use Python to control the display via I2C or SPI. Waveshare provides comprehensive documentation and example code for displaying text, images, and real-time data from sensors, making it ideal for IoT and home automation projects on Raspberry Pi platforms.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
