11% off

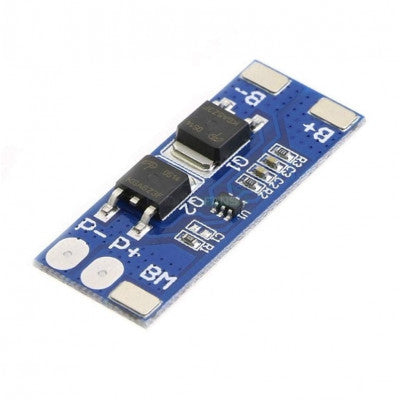

2 Series 8.4V Lithium Battery Protection Plate
2S 10A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB mounted Li-ion Lithium Battery charger protection module. This small and smart battery charger protection module comes with various features like Short circuit protection,Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.
Note: This module comes in two different colours Green and Blue. We will ship it randomly according to the availability.
Pin Descriptions:
B+ B-: The interface of battery core
P+ P-: The connector of the battery board
MB: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-
Caution:
The protection board cannot be used for lithium iron phosphate batteries, hernia lamps, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, buggy battery, 775 (4A) above the motor, 1W fisheye LED lamp.
Package Includes:
1 x 2S 10A 18650 7.4V-8.4V Lithium Battery Protection Board
Specifications:
| Charging Voltage |
8.4V-9V |
| Charging Voltage Range per Cell |
4.25-4.35V±0.05V |
| Discharge Voltage Range |
2.5-3V±0.05V |
| Maximum Working Current |
8A |
| Working Temperature |
-40~+50°C |
| Limit Instantaneous |
10A |
| Temperature Range for Storage |
-40~+80°C |
| Static Electricity |
<10uA |
| Useful Life |
>50000H |
| Internal Resistance |
<300mΩ |
| Length (mm) |
40.70 |
| Color |
Blue/Green |
| Width (mm) |
16 |
| Height (mm) |
4 |
| Weight (gm) |
6 |
