4G High Gain SMA Antenna, 4G/3G/2G/LPWA Support, SMA Inner Pin, 9DBI Gain
by
My Store
SKU: TES-EV4G High
79% off

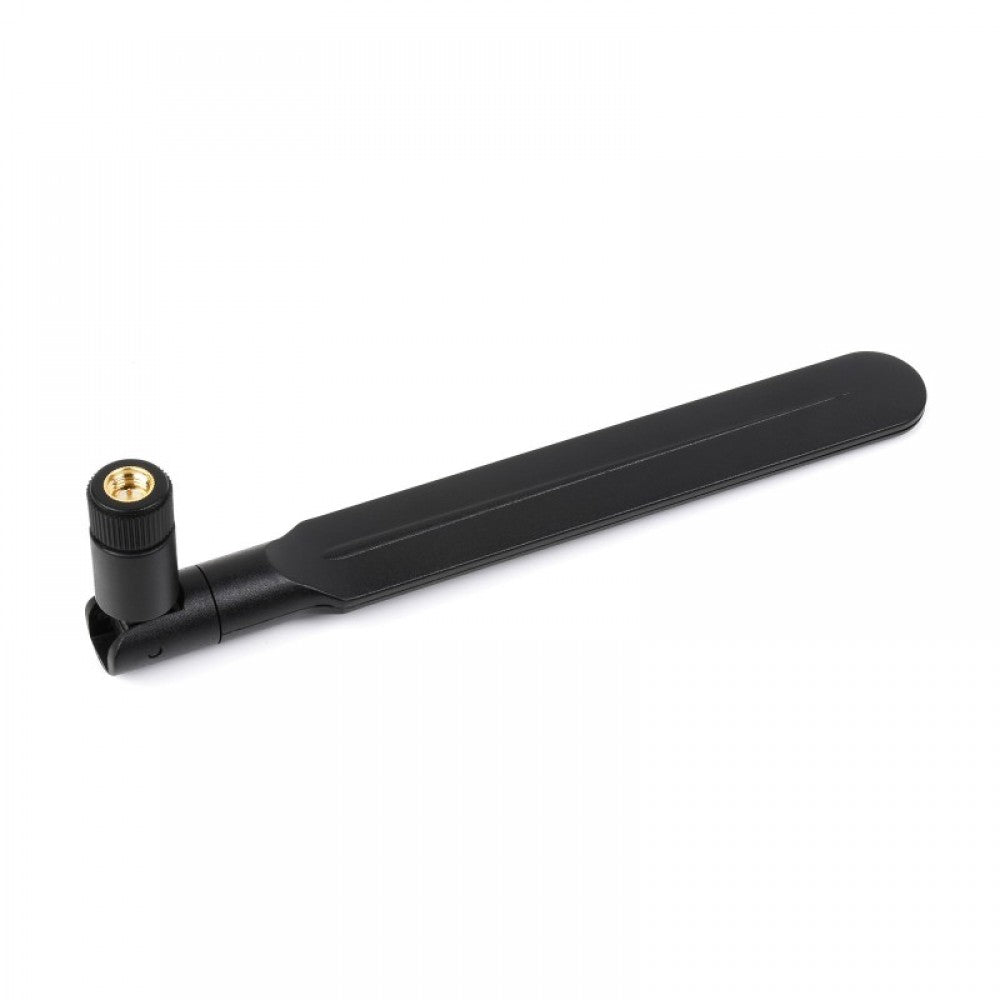

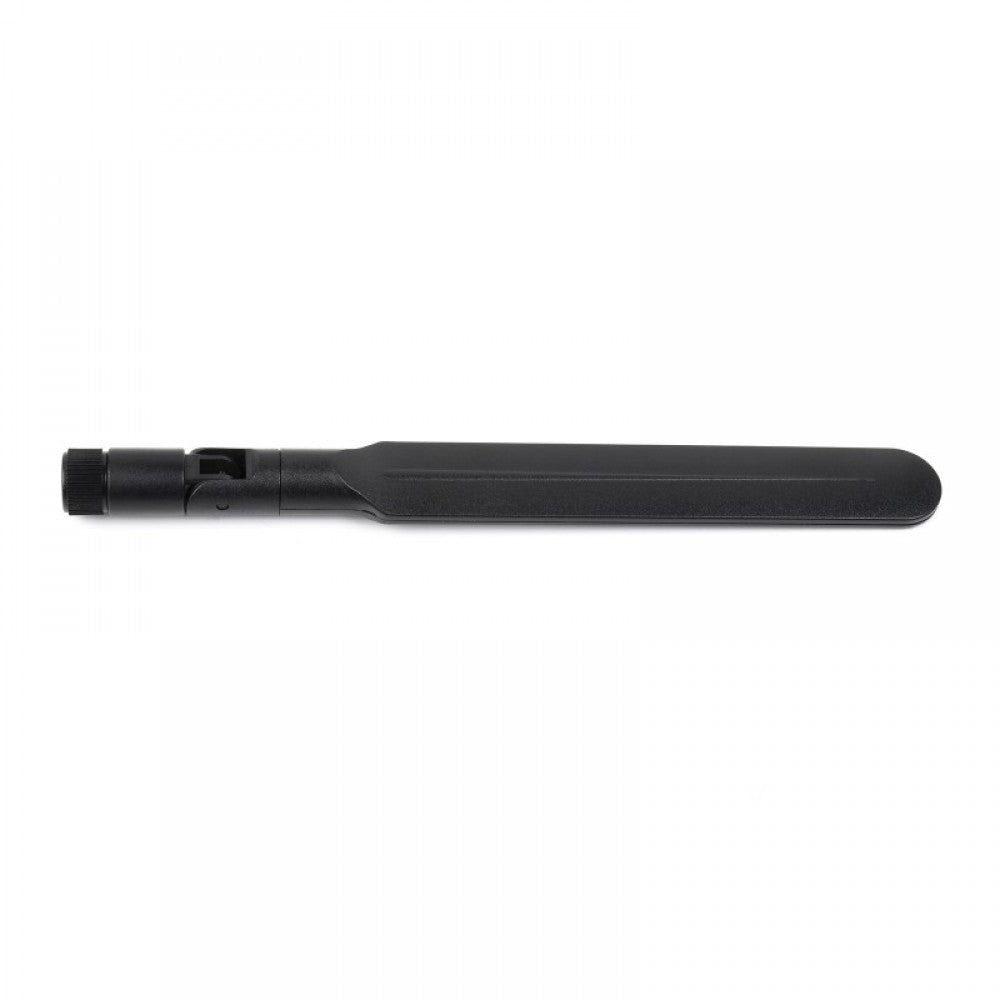

4G High Gain SMA Antenna, 4G/3G/2G/LPWA Support, 700~2700MHz Range, 90° Flexible Rotation
The 4G High Gain SMA Antenna is a versatile and high-performance antenna designed to boost signal reception across multiple cellular networks. With its high gain, broad compatibility, and compact design, it serves as an effective solution for enhancing connectivity in various applications, including those involving 4G, 3G, 2G, and LPWA technologies.
Specifications
- NETWORK SUPPORT : 4G/3G/2G/LPWA
- GAIN : 9DBI ± 0.7DBI
- FREQUENCY RANGE : 700~2700MHz
- CONNECTOR : SMA inner pin
- OUTPUT IMPEDANCE : 50Ω
- LENGTH : 17CM
- VSWR : ≤ 2.0
- MATERIAL : ABS
- POLARISATION : Vertical
- COLOR : Black
Dimensions
4G High Gain SMA Antenna, 4G/3G/2G/LPWA Support, 700~2700MHz Range, 90° Flexible Rotation
The 4G High Gain SMA Antenna is a versatile and high-performance antenna designed to boost signal reception across multiple cellular networks. With its high gain, broad compatibility, and compact design, it serves as an effective solution for enhancing connectivity in various applications, including those involving 4G, 3G, 2G, and LPWA technologies.
Specifications
- NETWORK SUPPORT : 4G/3G/2G/LPWA
- GAIN : 9DBI ± 0.7DBI
- FREQUENCY RANGE : 700~2700MHz
- CONNECTOR : SMA inner pin
- OUTPUT IMPEDANCE : 50Ω
- LENGTH : 17CM
- VSWR : ≤ 2.0
- MATERIAL : ABS
- POLARISATION : Vertical
- COLOR : Black
Dimensions
