DSServo DS3218SSG Pro Servo Motor High Torque 20KG Stainless Steel Gear Digital Servo Waterproof SSG RC Servo With 180°, 270° (Optional) Degree Rotation For 1/8, 1/10 and 1/12 Scale RC Cars
by
My Store
SKU: TES-EVDS3218SSG Pro
58% off
Description:
DSServo DS3218SSG Pro Servo Motor is High precision potentiometer and High-resolution digital chip, with stable performance, strong anti-interference ability, fast response, high precision, and control is more delicate and smooth operation.
High Torque 20KG Stainless Steel Gear Digital Servo is a high-speed stainless steel gear, accuracy and service life has been greatly increased Accuracy and linearity have been greatly improved. Accurate movement can satisfy the needs of making robots.
Specifications:
| Model | DS3218 |
| Material | Copper, Aluminum |
| Angle | 180°, 270° |
| Operating Voltage | 4.8 ~ 6.8 DC Volts |
| Working Frequency | 50-333Hz |
| Stall Torque (5V) | 21 kg/cm (291.5oz/in) |
| Stall Torque (6.8V) | 23.5 kg/cm (326.2 oz/in) |
| Speed | 180°= 0.12 sec/60°(5V) 270°= 0.09 sec/60°(6.8V) |
| Waterproof Performance | IP66 |
| Dead Brand | 3μs |
Features:
- Dual ball bearings.
- CNC aluminum middle Shell.
- High-performance digital standard servo.
- High-precision metal gears with hard anodizing.
Package Included:
1 x DS3218 20KG Large Torque Digital Servo

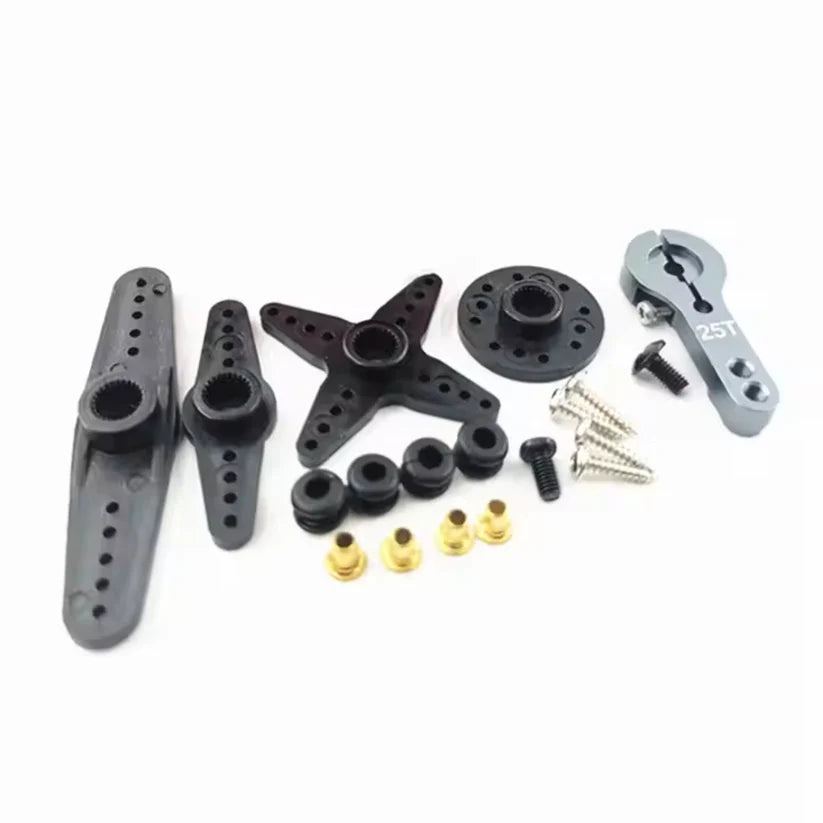

1 x 25T Adjustable metal servo arm
1 x Accessories pack
Description:
DSServo DS3218SSG Pro Servo Motor is High precision potentiometer and High-resolution digital chip, with stable performance, strong anti-interference ability, fast response, high precision, and control is more delicate and smooth operation.
High Torque 20KG Stainless Steel Gear Digital Servo is a high-speed stainless steel gear, accuracy and service life has been greatly increased Accuracy and linearity have been greatly improved. Accurate movement can satisfy the needs of making robots.
Specifications:
| Model | DS3218 |
| Material | Copper, Aluminum |
| Angle | 180°, 270° |
| Operating Voltage | 4.8 ~ 6.8 DC Volts |
| Working Frequency | 50-333Hz |
| Stall Torque (5V) | 21 kg/cm (291.5oz/in) |
| Stall Torque (6.8V) | 23.5 kg/cm (326.2 oz/in) |
| Speed | 180°= 0.12 sec/60°(5V) 270°= 0.09 sec/60°(6.8V) |
| Waterproof Performance | IP66 |
| Dead Brand | 3μs |
Features:
- Dual ball bearings.
- CNC aluminum middle Shell.
- High-performance digital standard servo.
- High-precision metal gears with hard anodizing.
Package Included:
1 x DS3218 20KG Large Torque Digital Servo
1 x 25T Adjustable metal servo arm
1 x Accessories pack
