A7600E LTE Cat-1 HAT for Raspberry Pi, Low Speed 4G Module, 2G GSM / GPRS
द्वारा
My Store
SKU: TES-EVHUBMODULES006
48 % छूट

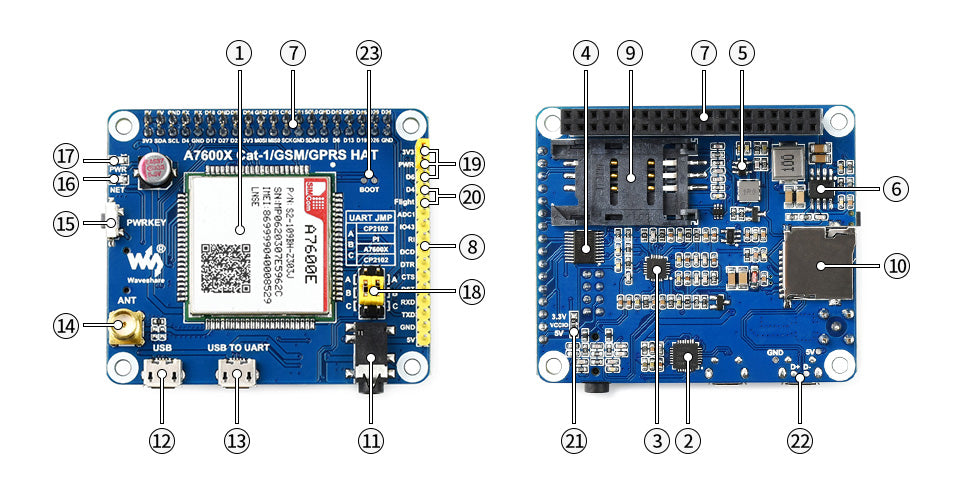

This is a LTE Cat-1/2G HAT for Raspberry Pi, Based on A7600X.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.
- Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL.
- Supports dial-up, telephone call, SMS.
- Supports LBS base station positioning, it is able to get the approximate position info via mobile network.
- TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words.
- Onboard USB interface, for testing AT Commands, network communication, and so on.
- Onboard audio jack for sound recording, making telephone call, listening the TTS resulting speech, etc.
- Onboard USB to UART converter, for serial debugging, or accessing the Raspberry Pi.
- Breakout common used control pins of the A7600X module, make it easy to connect with hosts boards like Arduino/STM32
- SIM card slot, supports 1.8V/3V SIM card.
- TF card slot for storing data like files, audio data, etc.
- 2x LED indicators, easy to monitor the operating status.
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via 0Ω resistor jumper.
- Baudrate: 300bps ~ 4Mbps (default: 115200bps).
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).
