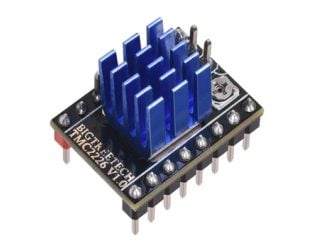

BIGTREETECH BTT TMC2226 V1.0 Stepper Motor Driver
The BIGTREETECH BTT TMC2226 V1.0 is a compact UART-controlled stepper motor driver IC designed for 3D printers, CNC machines, and precision robotics applications. Professional engineers and hobbyists rely on this driver for its advanced StallGuard technology, which enables sensorless load detection and reduces mechanical complexity in motion control systems. This product solves the critical challenge of silent, efficient stepper motor operation while minimizing power consumption and heat generation in space-constrained embedded systems.
Product Overview
The TMC2226 operates on the principle of microstepping with integrated current regulation, delivering smooth motion with minimal vibration compared to traditional stepper drivers. This driver utilizes BIGTREETECH's proprietary SpreadCycle algorithm to distribute current harmonically across phases, reducing audible noise by up to 75 percent while maintaining full torque output. The integrated circuit features a 256-microstep resolution capability, allowing for ultra-fine positional accuracy essential in high-precision 3D printing and laser engraving applications. The UART interface enables real-time parameter adjustment without requiring firmware recompilation, making it ideal for rapid prototyping and iterative development workflows.
What distinguishes the TMC2226 V1.0 is its ultra-compact form factor measuring just 14x14mm, making it suitable for integration into space-limited mainboards and control systems. The driver supports operating currents up to 1.4A RMS per phase with integrated thermal management, featuring automatic current reduction when temperature exceeds safe thresholds. The StallGuard2 technology detects motor stall conditions without mechanical sensors, enabling automatic print recovery and collision detection in 3D printers. Additionally, the driver offers configurable acceleration ramp features and integrated diagnostics through UART communication, providing real-time feedback on motor status, temperature, and fault conditions.
Key Specifications
| Specification | Details |
| Product Type | UART-Controlled Stepper Motor Driver IC |
| Brand | BIGTREETECH |
| Model | BTT TMC2226 V1.0 |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Maximum Phase Current | 1.4A RMS per phase |
| Microstepping Resolution | Up to 256 microsteps per full step |
| Supply Voltage Range | 5V to 36V DC |
| Communication Interface | UART (Universal Asynchronous Receiver-Transmitter) |
| Operating Temperature Range | -20°C to +85°C |
| Package Dimensions | 14mm x 14mm x 4.5mm (BGA package) |
Key Features
- StallGuard2 Technology: Sensorless load detection enables automatic stall prevention and collision detection without mechanical limit switches, reducing hardware complexity in 3D printers and CNC systems
- Ultra-Quiet Operation: SpreadCycle current control algorithm reduces acoustic noise by up to 75 percent compared to traditional drivers while maintaining full motor torque
- 256-Microstep Resolution: Delivers ultra-smooth motion with minimal vibration, critical for high-quality 3D print surfaces and precise laser engraving applications
- UART Communication Interface: Real-time parameter adjustment including current regulation, acceleration profiles, and diagnostic monitoring without firmware recompilation
- Compact Form Factor: 14x14mm BGA package integrates seamlessly into space-constrained mainboards and control electronics
- Integrated Thermal Management: Automatic current reduction and temperature monitoring prevents thermal damage and extends component lifespan
- Wide Supply Voltage Range: Operates reliably from 5V to 36V DC, compatible with diverse power supply configurations
Applications and Use Cases
- 3D Printer Motion Control: Powers X, Y, Z, and extruder axes with silent operation and automatic stall detection for print quality optimization and jam prevention
- CNC Machine Tool Drives: Enables precise multi-axis control for milling, engraving, and cutting operations with integrated diagnostics for tool path accuracy
- Laser Engraving Systems: Delivers smooth galvanometer mirror positioning and material feed control with minimal vibration-induced marking artifacts
- Robotic Arm Actuators: Supports multi-joint motion control with sensorless load monitoring for collision avoidance and dynamic payload adaptation
- Automated Assembly Equipment: Enables synchronized multi-axis positioning with real-time fault detection for production line reliability
- Photography Slider and Gimbal Systems: Provides smooth camera movement with microstepping precision for cinematic video production
How to Use
Installation of the TMC2226 V1.0 requires integration into a compatible controller board with UART communication capability. Begin by soldering the driver IC to your mainboard using BGA reflow techniques or purchasing pre-assembled modules with breakout headers. Connect the motor coils to the A1, A2, B1, and B2 output pins, ensuring proper phase wiring according to your specific stepper motor specifications. Supply power to the VCC and GND pins using a regulated 5V to 36V DC source with adequate current capacity, typically 2A minimum for full-current operation.
Configure the driver through UART communication using BIGTREETECH's firmware or compatible third-party software. Set the RMS current limit to match your motor specifications, typically 0.5A to 1.4A depending on application requirements. Enable StallGuard2 detection with appropriate sensitivity thresholds for your mechanical system, usually requiring calibration testing to optimize stall detection without false triggers. Monitor real-time diagnostics including motor temperature, current levels, and fault flags through UART polling, adjusting acceleration profiles and microstepping resolution based on your application's speed and precision demands.
Frequently Asked Questions
What is the difference between TMC2226 and TMC2225 drivers?
The TMC2226 features UART communication for dynamic parameter adjustment, while the TMC2225 uses fixed configuration pins. The TMC2226 offers superior flexibility for complex motion control systems and real-time diagnostics, making it ideal for 3D printer mainboards requiring adaptive current control and stall detection tuning.
Can TMC2226 work with 12V and 24V power supplies?
Yes, the TMC2226 supports supply voltages from 5V to 36V DC. It operates efficiently with both 12V and 24V supplies commonly found in 3D printers and CNC systems. The driver's internal voltage regulation ensures stable operation across this wide input range, though higher voltages provide faster acceleration capabilities.
How do I enable and configure StallGuard2 detection?
StallGuard2 is enabled through UART register configuration using BIGTREETECH's firmware tools. You must set the SGT (StallGuard threshold) register to appropriate values, typically ranging from -64 to 63, calibrated through testing on your specific mechanical system. Start with conservative threshold values and gradually increase sensitivity until stall detection activates reliably without false triggers during normal operation.
What is the maximum current rating and thermal considerations?
The TMC2226 supports 1.4A RMS per phase maximum, with integrated thermal protection activating automatic current reduction above 150°C. For continuous operation at maximum current, ensure adequate PCB thermal dissipation and consider heatsinking in high-ambient-temperature environments. Most applications operate reliably at 0.8A to 1.2A RMS with standard PCB cooling.
Is the TMC2226 compatible with Marlin firmware and Klipper?
Yes, the TMC2226 is fully compatible with Marlin firmware versions 2.0 and later, as well as Klipper motion control software. Both firmware systems support UART communication and provide configuration options for StallGuard2, current limiting, and microstepping resolution. Ensure your mainboard includes UART communication pins dedicated to stepper driver control.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
