Industrial 8-Ch Digital Input & Output Module, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol

Industrial 8-Ch Digital Input & Output Module, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol

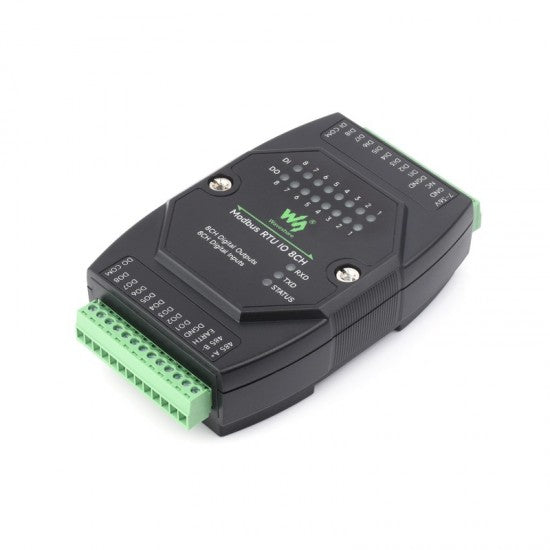

This is an industrial grade 8DI / 8DO digital isolated input & output module with RS485 control interface. Supports passive / active input, adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

User Manual / Datasheet / Example Codes Etc.

Features

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus
• Onboard voltage regulator, supports 7~36V wide range power supply
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
• Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. Supports DI/DO linkage control or DO toggle control
• The output utilizes Darlington transistors with optocoupler isolation, provides stronger driving capability with up to 500mA sinking current, built in flyback diode protection
• Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the output for a while and then close it automatically
• Rail-mount case design, support stacking combination, easy to install and safer to use
• Multiple LEDs for indicating the input & output status, MCU status and signal transceiving status

Specifications

• Communication Interface :RS485
• Baud Rate : 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
• Default Communication Format :9600, N, 8, 1
• Modbus Protocol :Standard Modbus RTU Protocol
• Power Supply :DC 7~36V
• Digital Input : 8DI, 5~36V, passive input/active input (NPN or PNP) Built-in bidirectional optocoupler isolation
• Digital output :8DO, 5~40V, open-drain output, output load, output load 500mA/ch (MAX)
• Set the device address range :1~255 (1 by default, corresponds to the hexadecimal value of 0x01

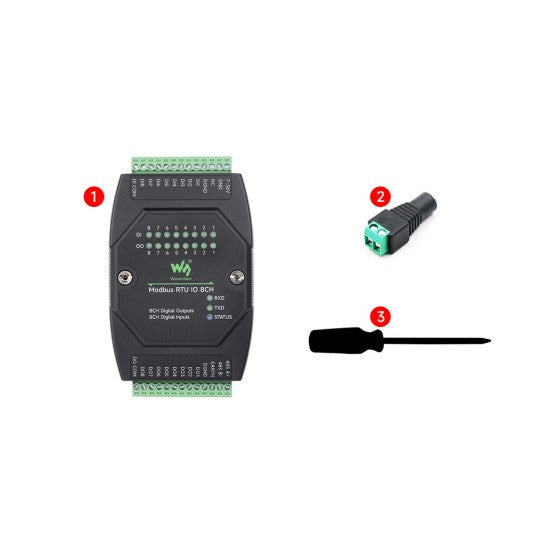

Package Incudes

Primary Function

Industrial Grade Isolated Protection

Interface Introduction

Full Isolation For Digital Input & Output

Multiple Modes For Various Automation Scenarios

Wide Voltage Power Supply, Isolated RS485 Interface

Dimensions
