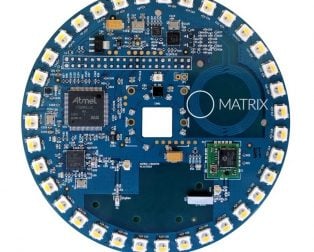

Matrix Creator IoT Development Board

The Matrix Creator is a comprehensive IoT development board featuring an ARM Cortex-A7 processor, integrated sensors (temperature, humidity, pressure, UV), and a 8-microphone array for voice recognition and spatial audio processing. Professional IoT developers, embedded systems engineers, and smart home automation specialists use this board to prototype voice-activated applications, environmental monitoring systems, and distributed sensor networks. It solves the complexity of integrating multiple sensor inputs, audio processing, and wireless connectivity into a single unified platform for rapid IoT product development.

Product Overview

The Matrix Creator IoT Development Board is built on advanced heterogeneous computing architecture, combining a quad-core ARM Cortex-A7 processor running at 1.2 GHz with dedicated DSP cores for real-time audio processing. The board features an integrated 8-microphone circular array optimized for beamforming and voice activity detection, enabling far-field voice recognition at distances up to 2 meters. The onboard sensor suite includes BME680 environmental sensor (temperature, humidity, pressure, air quality), UV sensor, and accelerometer, all accessible through I2C and SPI interfaces. The board runs a customized Linux distribution with full support for Python, Node.js, and C++ development environments, making it ideal for rapid prototyping of intelligent IoT applications.

What distinguishes the Matrix Creator is its purpose-built architecture for audio-centric IoT applications. The DSP subsystem handles complex signal processing tasks independently from the main CPU, reducing computational overhead and enabling real-time voice processing without latency. The board includes 1GB LPDDR3 RAM, 4GB eMMC storage, and dual-band WiFi (802.11ac) with Bluetooth 4.2 for seamless wireless connectivity. The HAL (Hardware Abstraction Layer) provides standardized APIs for sensor access and audio processing, significantly reducing development time. Power consumption is optimized at approximately 2.5W during active operation, making it suitable for always-on IoT deployments with external power or battery backup solutions.

Key Specifications

Specification	Details
Product Type	IoT Development Board with Integrated Audio and Sensor Suite
Brand	Matrix Labs
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Processor	Quad-core ARM Cortex-A7 @ 1.2 GHz
RAM	1GB LPDDR3 Memory
Storage	4GB eMMC Flash Storage
Microphone Array	8-element circular array with beamforming support
Integrated Sensors	BME680 (temperature, humidity, pressure, air quality), UV sensor, 3-axis accelerometer
Wireless Connectivity	Dual-band WiFi 802.11ac, Bluetooth 4.2, optional cellular module support
Power Consumption	2.5W typical active operation
Operating System	Custom Linux distribution with HAL abstraction layer
Development Support	Python, Node.js, C++, MQTT, REST API frameworks

Key Features

• 8-Microphone Circular Array: Integrated beamforming and voice activity detection enables accurate far-field voice recognition up to 2 meters, eliminating need for external audio modules and reducing system complexity
• Dedicated DSP Cores: Independent digital signal processing handles real-time audio algorithms without burdening the main CPU, ensuring low-latency voice processing and concurrent sensor data acquisition
• Comprehensive Sensor Integration: BME680 environmental sensor provides simultaneous temperature, humidity, pressure, and air quality measurements with I2C interface, eliminating the need for multiple discrete sensors
• Dual-Band WiFi and Bluetooth: 802.11ac WiFi supports high-bandwidth data transfer for cloud synchronization, while Bluetooth 4.2 enables local device communication and low-power peripheral connectivity
• HAL-Based API Framework: Hardware Abstraction Layer provides standardized interfaces for sensor access and audio processing, significantly reducing development time and enabling code portability across different hardware configurations
• Linux-Based Development Environment: Full support for Python, Node.js, and C++ enables rapid prototyping with access to extensive open-source libraries and frameworks for IoT applications

Applications and Use Cases

• Voice-Activated Smart Home Hubs: Deploy intelligent voice assistants with local processing capabilities using the 8-microphone array and DSP cores, enabling privacy-focused voice control without cloud dependency for critical commands
• Environmental Monitoring Systems: Integrate BME680 sensor data with WiFi connectivity to create distributed air quality monitoring networks for industrial facilities, smart buildings, or research applications with real-time cloud synchronization
• Acoustic Event Detection and Analysis: Utilize the microphone array for sound classification, anomaly detection in machinery monitoring, or acoustic pattern recognition in smart security and industrial IoT applications
• Gesture and Motion-Based Interfaces: Leverage the 3-axis accelerometer combined with audio processing to create multimodal human-machine interfaces for robotics, interactive installations, or accessibility-focused IoT devices
• Edge AI and Machine Learning Deployment: Process sensor data and audio streams locally using TensorFlow Lite or similar frameworks, enabling real-time inference without cloud latency for time-critical IoT applications
• Connected IoT Prototyping: Rapidly develop and test IoT concepts with integrated wireless connectivity, sensors, and audio processing in a single compact form factor, reducing development complexity and time-to-market

How to Use

Begin by connecting the Matrix Creator to a stable power source (5V/2A minimum recommended) and establishing WiFi connectivity through the onboard dual-band antenna. Access the board via SSH using the default credentials and update the system packages to ensure you have the latest HAL libraries and sensor drivers. Install your preferred development environment (Python 3 with pip is recommended for beginners) and clone the Matrix Labs GitHub repository containing example code for sensor access, microphone array processing, and WiFi communication. Test basic functionality by running the provided sensor calibration scripts to verify that the BME680 environmental sensor, accelerometer, and microphone array are functioning correctly.

For audio processing applications, configure the microphone array parameters including beamforming direction, voice activity detection sensitivity, and audio capture sample rate (typically 16 kHz for voice recognition). Leverage the HAL abstraction layer to access sensor data through standardized function calls rather than low-level register manipulation, which simplifies code maintenance and enables future hardware upgrades. Implement your application logic in Python or Node.js using MQTT or REST API protocols for cloud integration, and utilize the onboard storage for local data logging during connectivity interruptions. Enable the watchdog timer and implement proper shutdown sequences to ensure data integrity and graceful handling of power failures in production deployments.

Frequently Asked Questions

Can the Matrix Creator run machine learning models locally for voice recognition?

Yes, the Matrix Creator supports TensorFlow Lite and other lightweight machine learning frameworks optimized for embedded systems. You can deploy pre-trained voice recognition models or train custom models using your specific vocabulary and acoustic environment. The DSP cores handle real-time audio preprocessing, while the ARM Cortex-A7 processor executes the inference engine. For optimal performance, quantized models (INT8) are recommended to fit within the 1GB RAM constraint while maintaining acceptable latency for interactive voice applications.

What is the maximum range for voice recognition with the 8-microphone array?

The circular microphone array achieves reliable voice recognition at distances up to 2 meters under typical indoor acoustic conditions with ambient noise levels below 60dB SPL. Performance degrades gracefully beyond this range depending on room acoustics and background noise. The beamforming algorithm can be tuned to prioritize specific directions, and voice activity detection sensitivity can be adjusted in software to optimize for your deployment environment. In high-noise industrial settings, effective range may reduce to 1-1.5 meters.

How do I integrate the Matrix Creator with cloud platforms like AWS IoT or Azure?

The Matrix Creator supports standard IoT protocols including MQTT, CoAP, and REST APIs, enabling seamless integration with major cloud platforms. AWS IoT Core integration is achieved through the MQTT protocol using certificate-based authentication, while Azure IoT Hub requires the Azure IoT SDK for Python or Node.js. The board includes pre-configured examples for both platforms in the GitHub repository. Ensure your WiFi network has outbound access to cloud endpoints, and store certificates securely in the eMMC storage or external secure element if available.

Can I use the Matrix Creator with Raspberry Pi or other single-board computers?

The Matrix Creator is a standalone development board with its own processor and operating system, not designed as a HAT or expansion module for Raspberry Pi. However, you can integrate it with other boards via WiFi or Bluetooth for distributed IoT applications. If you need a microphone array solution for Raspberry Pi, Matrix Labs offers separate HAT modules, but the Creator board itself functions as an independent intelligent edge device.

What programming languages are supported for application development?

The Matrix Creator supports Python 3, Node.js, and C++ for application development. Python is recommended for rapid prototyping and machine learning applications due to extensive library support. Node.js is ideal for web-based interfaces and real-time communication. C++ should be used for performance-critical components requiring low-latency processing. The HAL abstraction layer provides bindings for all three languages, and you can mix languages within a single project using inter-process communication mechanisms.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
