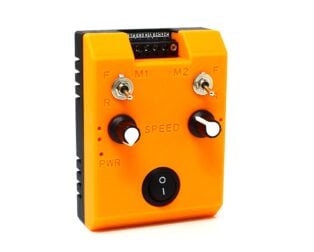

SmartElex – Industrial Grade 15D Motor Driver
The SmartElex Industrial Grade 15D Motor Driver is a robust DC motor control module engineered for high-torque applications requiring precise speed and direction regulation in industrial automation systems. Professional engineers and automation technicians rely on this driver for CNC machines, robotic arms, conveyor systems, and manufacturing equipment where reliable motor commutation and current limiting are critical. This product solves the challenge of controlling high-inertia motors with smooth acceleration profiles while protecting against overcurrent faults and thermal runaway conditions.
Product Overview
The SmartElex 15D Motor Driver operates on the principle of PWM (Pulse Width Modulation) based motor control, delivering variable voltage to DC motors while maintaining constant torque characteristics across load variations. The driver integrates a dual H-bridge topology with integrated MOSFET protection, enabling bidirectional motor control with independent speed adjustment and direction reversal. The 15D designation indicates a 15-ampere continuous current rating with dynamic braking capability, making it suitable for motors ranging from 12V to 24V DC with power outputs up to 360W. The onboard microcontroller monitors motor current in real-time, implementing intelligent soft-start algorithms that reduce mechanical stress during startup and extend motor lifespan in repetitive duty cycles.
What distinguishes the SmartElex 15D from standard motor drivers is its industrial-grade thermal management system featuring a large aluminum heatsink with temperature-compensated current limiting that automatically reduces duty cycle if junction temperature exceeds safe thresholds. The driver features isolated logic inputs compatible with TTL and CMOS signals, allowing seamless integration with PLC controllers, microcontrollers, and industrial relay logic systems. Built-in diagnostic LEDs provide real-time feedback on motor status, fault conditions, and power supply health, eliminating the need for external monitoring equipment during commissioning and troubleshooting phases.
Key Specifications
| Specification | Details |
| Product Type | Industrial Grade DC Motor Driver Module |
| Brand | SmartElex |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Continuous Current Rating | 15 Amperes |
| Peak Current Rating | 20 Amperes (5 second burst) |
| Input Voltage Range | 12V to 24V DC |
| Motor Power Output | Up to 360W at 24V |
| Control Signals | TTL/CMOS compatible logic inputs |
| Operating Temperature | -10°C to +60°C ambient |
Key Features
- Dual H-Bridge Configuration: Independent control of two DC motors simultaneously or single motor with enhanced torque capability through parallel operation
- PWM Speed Control: Variable frequency PWM (1kHz to 20kHz selectable) enables smooth speed adjustment from 0-100% without cogging effects
- Integrated Overcurrent Protection: Automatic current limiting at 15A continuous with electronic foldback to prevent MOSFET destruction during stalled motor conditions
- Dynamic Braking: Regenerative braking capability allows motors to decelerate rapidly without external resistors, ideal for vertical load applications
- Thermal Management: Temperature-compensated current limiting with automatic duty cycle reduction above 80°C junction temperature
- Industrial Signal Compatibility: Isolated logic inputs accept standard TTL, CMOS, and relay contact signals from PLC and industrial controllers
- Diagnostic Status Indicators: RGB LED array displays power status, motor direction, fault conditions, and thermal warnings in real-time
Applications and Use Cases
- CNC Machine Tool Control: Precision spindle motor drivers for milling and turning centers requiring repeatable speed profiles and directional control with soft-start acceleration
- Robotic Arm Actuators: Joint servo motors in industrial robots benefit from the driver's smooth torque delivery and dynamic braking for safe emergency stops
- Conveyor System Management: Multi-motor conveyor lines use parallel SmartElex drivers for synchronized speed control and load-sharing across drive rollers
- Automated Door and Gate Systems: Reliable bidirectional control for sliding and rolling gates with integrated limit switch interfacing and stall detection
- Printing and Labeling Equipment: Paper feed motors and label advance systems require the precise PWM control and low-noise operation this driver provides
- Medical Device Actuators: Sterilizable motor control for surgical tables and diagnostic equipment where thermal stability and fault diagnostics are mandatory
How to Use
Installation begins with secure mounting of the SmartElex 15D on a DIN rail or flat surface with the heatsink facing downward for optimal thermal dissipation. Connect the 12V or 24V DC power supply to the designated power terminals, ensuring polarity is correct as reverse voltage will damage the onboard rectifier. The motor connections are labeled M1+ and M1- for single motor operation; use both M1 and M2 pairs for dual motor control. Connect your control signals (direction and speed) to the isolated logic input terminals, which accept 5V TTL signals from microcontrollers or 24V signals from industrial PLCs without additional conditioning.
Before energizing the system, verify all connections using a multimeter and confirm motor shaft rotates freely without mechanical binding. Power on the driver and observe the green power LED confirmation. Apply a low-speed test signal (approximately 30% PWM) to verify motor rotation direction matches your application requirements; use the onboard direction switch to reverse polarity if needed. For applications requiring soft-start, enable the acceleration ramp feature via the configuration jumpers on the rear panel, which will gradually increase motor speed over 2-5 seconds to reduce mechanical shock. Monitor the temperature indicator LED during initial operation; if the yellow thermal warning activates, reduce ambient temperature or improve heatsink airflow. Consult the technical datasheet for advanced features including current limiting adjustment and PWM frequency selection.
Frequently Asked Questions
Can the SmartElex 15D control motors larger than 360W?
The SmartElex 15D is rated for 15A continuous current, which limits it to approximately 360W at 24V input. For larger motors exceeding 500W, we recommend the SmartElex 30D model with 30A rating. However, you can operate the 15D at reduced duty cycle (intermittent mode) for peak power applications; contact our technical team for specific motor specifications to confirm compatibility.
What is the difference between PWM frequency settings and how do I choose the right one?
The SmartElex 15D offers selectable PWM frequencies: 1kHz for high-torque low-speed applications (reduces audible motor noise), 5kHz for general purpose use, and 20kHz for applications requiring silent operation such as medical devices. Higher frequencies reduce electromagnetic interference but generate more heat in the driver. For most industrial applications, 5kHz provides the optimal balance between efficiency and noise characteristics.
How do I interface the driver with my PLC controller?
The SmartElex 15D accepts standard industrial control signals: connect your PLC's digital output (0-5V TTL or 24V) to the direction input terminal, and connect an analog output (0-10V) or PWM signal to the speed control input. The isolated logic inputs feature optocoupler protection, allowing safe connection to 24V industrial systems without ground loops. Consult the pinout diagram in the technical manual for exact terminal assignments.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Why Buy from The Engineer Store
- Genuine Products: Sourced directly from authorized distributors with authentication
- Expert Team: Our technical team validates every product before listing
- Fast Shipping: Dispatched within 1-5 days from our Bengaluru warehouse
- Pan-India Delivery: 7-8 days to Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata
- Payment Options: COD, UPI, credit/debit cards, net banking, EMI available
- Technical Support: 24/7 expert guidance via email and WhatsApp
- Returns: 7-day return policy on manufacturing defects only
Buy SmartElex – Industrial Grade 15D Motor Driver Online in India
Purchase the SmartElex – Industrial Grade 15D Motor Driver online at The Engineer Store, India's trusted source for genuine electronics. We deliver across Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on SmartElex – Industrial Grade 15D Motor Driver with fast shipping and expert support.
Our team in Bengaluru is available 24/7 to support your journey from product selection to project completion.
