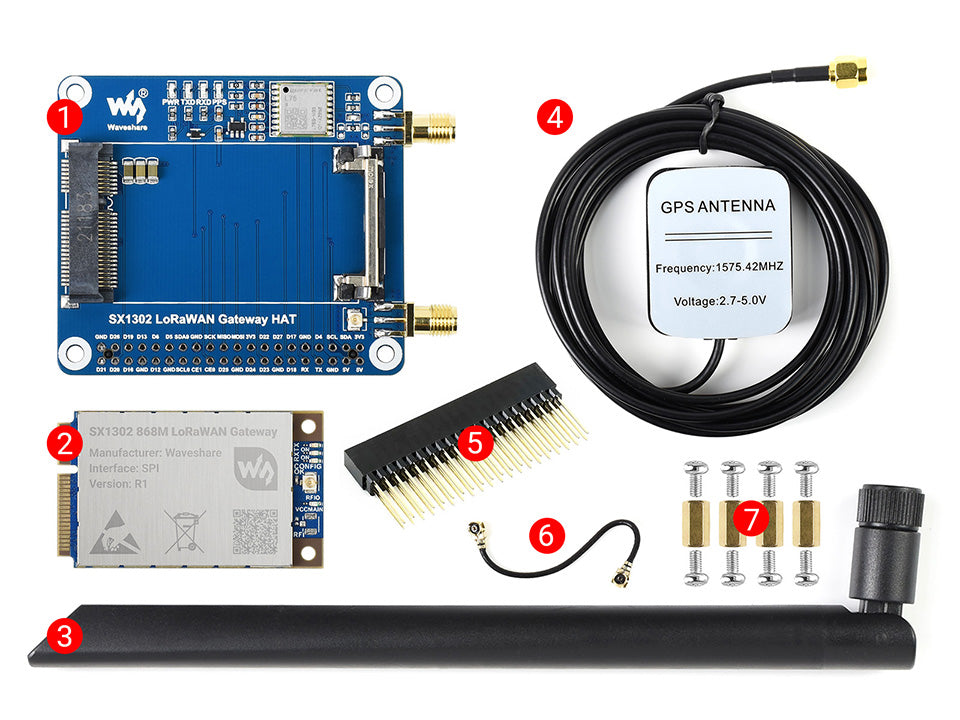

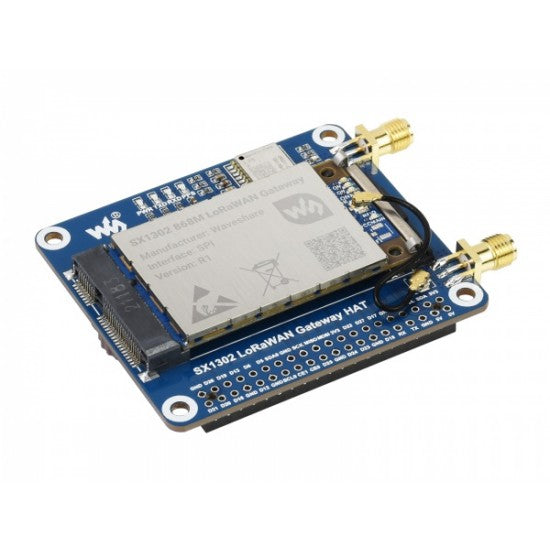

This is a communication HAT for Raspberry Pi with LoRaWAN protocol support, which incorporates the core LoRa gateway module SX1302 868M LoRaWAN Gateway. It has lots of advantages including long-range transmission, concurrent communication, large capacity node, and high receiving sensitivity. There are L76B GNSS module and Mini-PCIe socket on the baseboard for easy integration, along with our rich development resources, you can attach it to Raspberry Pi and build the LoRa network fast.

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Incorporate L76B module with GPS/BD support, Gateway module for providing accurate clock and location info
Comes with development resources and manual

Resources:

User Guide and Datasheet

Features:

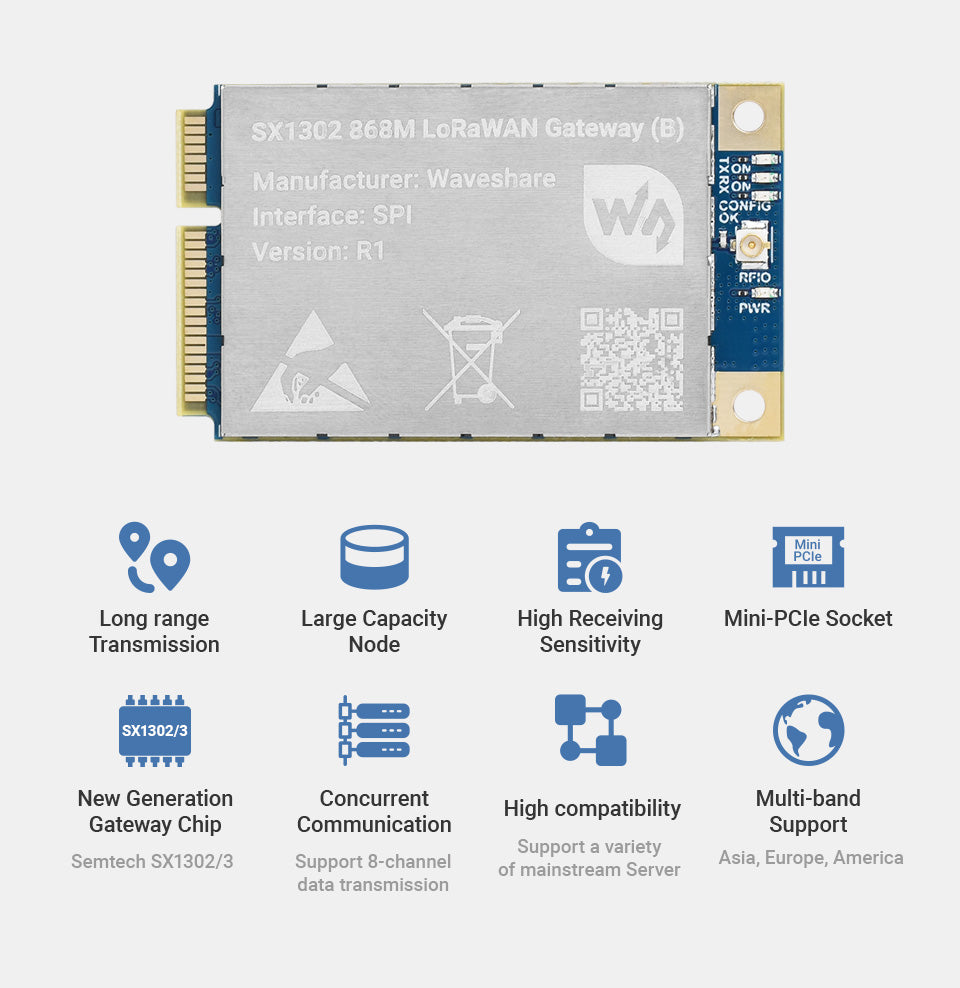

Integrates Semtech SX1302 normal band and SX1250 radio RF frond-end chip, EU868 band
Onboard PA and LNA, feature 26dBm emit power and -141dBm high sensitivity receiving gain
10x signal channel supports multiple nodes concurrent communication and FEC (Forward Error Correction) algorithm
Supports SF5~SF12 spreading factor, 19Kbps MAX (SF5/BW125KHz) data rate
Utilizing SPI communication protocol and standard Mini-PCIe socket, for easy integration into sorts of embedded systems
