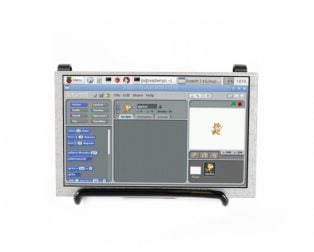

Waveshare 5inch Display for Raspberry Pi, 800×480, DPI Interface, IPS, No Touch

द्वारा My Store
SKU: TES-EV0882797
नियमित रूप से मूल्य Rs. 3,198.00 Rs. 2,698.00 16 % छूट
यूनिट मूल्य
प्रति
कोई समीक्षा नहीं

Waveshare 5inch Display for Raspberry Pi, 800×480, DPI Interface, IPS, No Touch

Waveshare 5inch Display for Raspberry Pi 800×480 DPI Interface IPS No Touch

Hardware connection

  1. Connect the RGB LCD HAT to the JP1 socket on RGB 50P TO 40/50P adapter with an FFC cable (white).
  2. Connect the FPC cable (golden) on LCD to the JP3 socket on RGB 50P TO 40/50P adapter.
Note: Please first unlock the ZIF connector then gently remove/insert the cable. As shown below

Waveshare 5Inch Lcd For Pi 4


Features:

  1. 5 inch IPS screen, 800×480 hardware resolution
  2. Compatible with Raspberry Pi 2B/3B/3B+/3A+/Zero/Zero W/Zero WH
  3. The LCD is directly driven by Raspberry Pi DPI interface, refresh rate up to 60Hz
  4. Support Raspbian, Ubuntu, OSMC, etc.
  5. Backlight can be turned off to lower power consumption
  6. Compact size, suit for various projects

Note:  This item can be used for displaying ONLY, if a touch panel is required, please consider 5inch HDMI Capacitive Touch LCD OR 5 inch HDMI Resistive Touch LCD.


Useful Link:

https://www.waveshare.com/wiki/5inch_LCD_for_Pi


The Case:

  1. Material: high-quality bicolour Acrylic, black and white
  2. Comes with bottom holder, optional tilt angle, 45° or 60°
  3. Features mounting holes for Raspberry Pi A+/B+/2B/3B/3B+

Package Includes:

1 x 5inch 800×480 IPS LCD
1 x RGB LCD HAT (B)
1 x LCD stand (small size)
