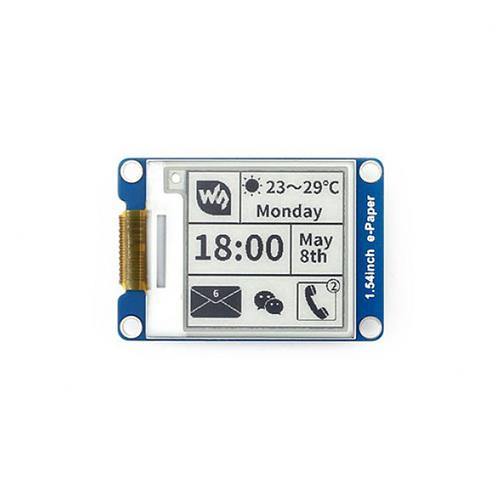

1.54 inch E-ink Display Module, three colour 200X200
Waveshare 1.54 inch e-Ink Paper Display Module with SPI Interface comes with 200×200 resolution and embedded controller module. It is communicating via SPI interface and it supports partial refresh. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features:
- No backlight so keeps displaying last content for a long time even when the power is down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
- Wide viewing angle, great viewing effect under sunlight.
Interface:
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V/5V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, high active |
