1 Channel 12V Relay Module with Optocoupler

1 Channel 12V Relay Module with Optocoupler

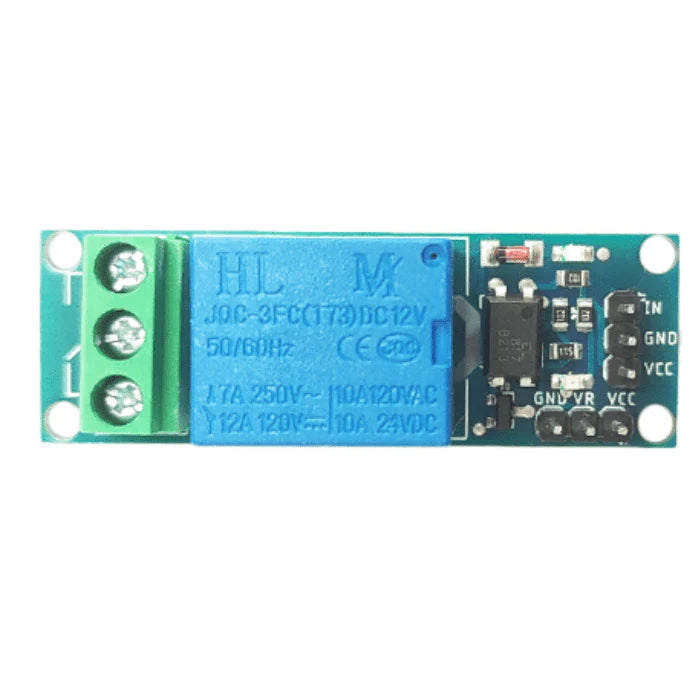

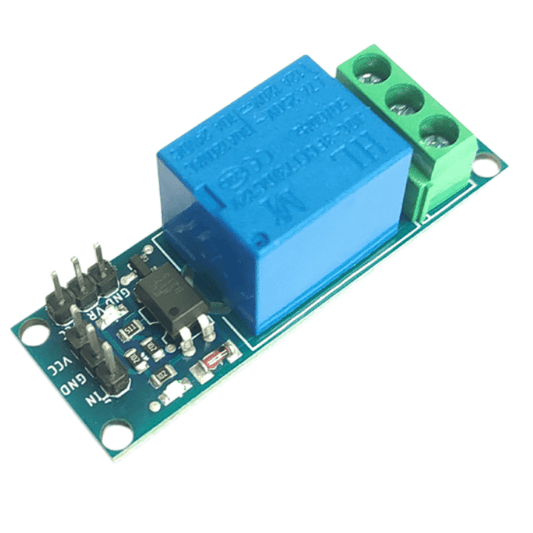

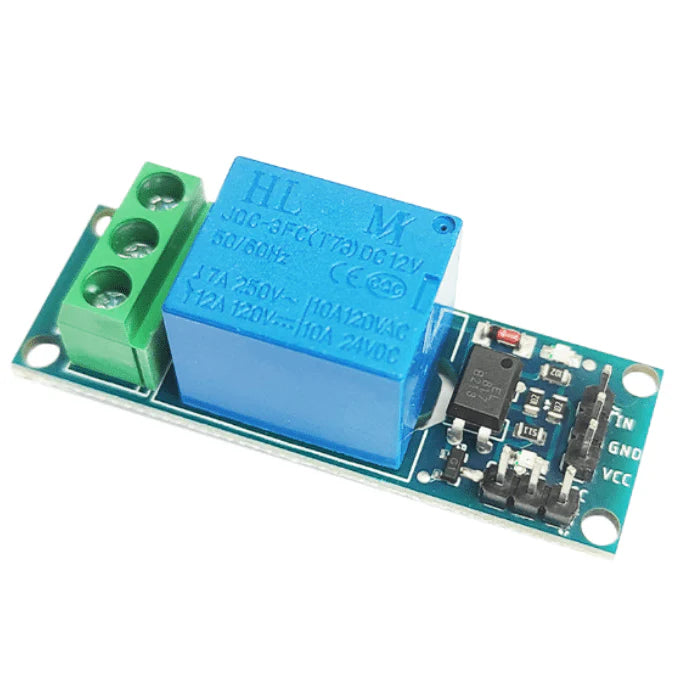

The ADIY 1-Channel Relay Module with Optocoupler operates on a 12V power supply. This module offers bidirectional isolation and enables control of the relay pull through a choice of high or low levels, based on user requirements. It features a genuine high-quality power relay, a subminiature package optocoupler, a high-power high-voltage transistor, and red and blue signal indicators. The module's layout board is thoughtfully designed to ensure comprehensive stability and reliable performance, making it suitable for a wide range of power control applications. The maximum load for the normally open interface is AC 250V/10A and DC 30V/10A. Moreover, it utilizes high-quality ultra-small optocouplers with excellent anti-interference capabilities and stable performance, requiring only a trigger current of 3mA.

Features:

• Equipped with high-current relay 10A@250VAC / 10A@30VDC
• It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc.
• High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
• A freewheeling diode to protect your microcontroller
• Input Signal Pin connected to Burg stick for easy accessibility
• LED status indicators to indicate the relay ON/OFF status
• Mounting holes provided
• Signal input with a high-level signal, the common and often start conduction;
• The relay can directly control all kinds of equipment and load;
• One often opened a normally closed contact;
• Blue KF301 terminal line more convenient.
