1206B102K102CT – WALSIN – MLCC SMD Capacitor – 1000 pF, 1 kV, 1206 ( Pack of 10)

The middle and high voltage series capacitors from Walsin are X7R dielectric multilayer ceramic chip capacitors (MLCC) that provide high stability and reliability. The middle and high voltage series MLCC are designed by a special internal electrode pattern that can reduce voltage concentrations by distributing voltage gradients throughout the entire capacitor. This special design also affords high capacitance values in a given case size and voltage rating. These MLCC capacitors are used as snubbers in high-frequency power converters, high voltage coupling / DC blocking, DC to DC converters, and backlighting inverters.

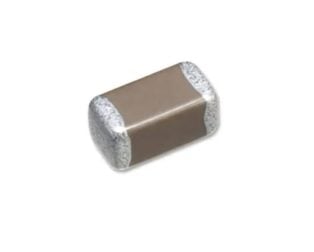

Note: Product Images are shown for illustrative purposes only. It may differ from the actual product.

Features:

1. Capacitance values range from 1000pF
2. 1206 case sizes available
3. Available voltage ratings are 1KV
4. Operating temperature range from -55°C to 125°C
5. Available in ±10% tolerance
6. Chips size 1206 to use on reflow soldering process only
7. Capacitors may require a protective surface coating to prevent external arcing
8. Cu/Ni/Sn termination
