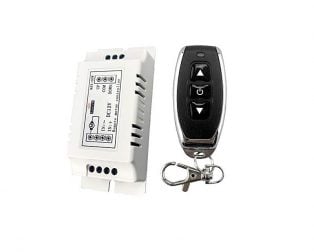

12V DC Wireless Motor Control Switch with 433MHz Keychain Remote with Forward Reverse and Stop button

This is a 12V DC Wireless Motor Control Switch with 433MHz Keychain Remote with Forward Reverse and Stop button.

The controller converts the positive and negative directions of the output port according to the remote command. Achieve steering and switching of the motor. It can provide the range to operate remotely is around 20 Meters barrier-free and with a barrier like a wall it can be controlled from around 10 meters

Switching control:

• Press the button ▲, the Motor Forward, Press Button ■ is Stop.
• Press the button ▼, the Motor Reverse, Press Button ■ is Stop.
• Please don’t hold control “▲ “and “▼” button at the same time
• Sight distance, control range over 0 meters, RF signal can be controlled through the wall.
• The controller reserves the limit switch installation port can externally connect the limit switch.
• The controller reserves the learning function button. Used to add configuration remote control.
• When the limit switch function is not used, the 3 ports of the limit switch function need to be shorted.
• Use the limit switch function, please use the limit switch with “NC” “COM” pin.
• The maximum load of the motor to be controlled cannot exceed 60 watts.

When the motor is rotating, please do not directly control the reverse direction to avoid exceeding the maximum value of the controller. The small motor can be freely converted.
