1M Cermet(Pack of 5)

SKU: TES-EV103196
Regular price Rs. 22.00 Rs. 19.00 14% off
Unit price
per
No Reviews

1M Cermet(Pack of 5)

5K ohm Cermet Preset Potentiometer (Pack of 5)

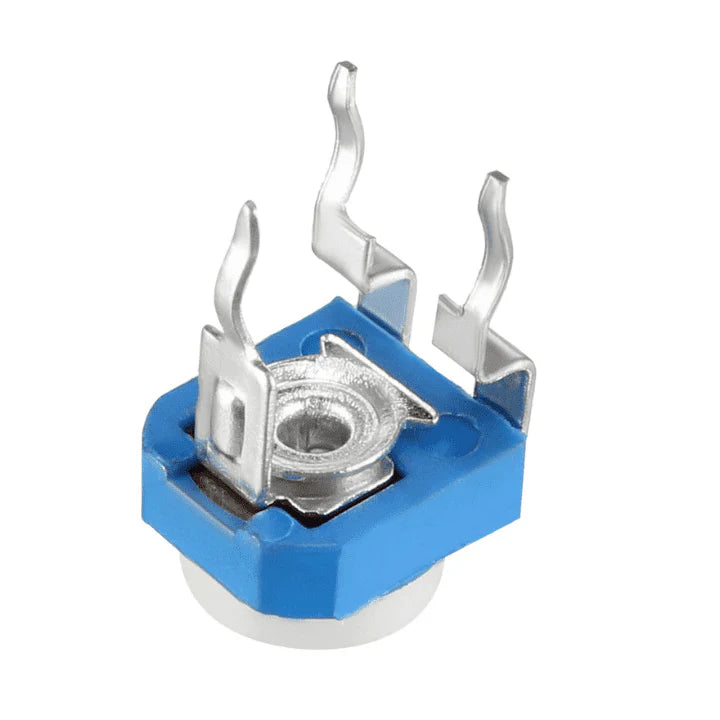

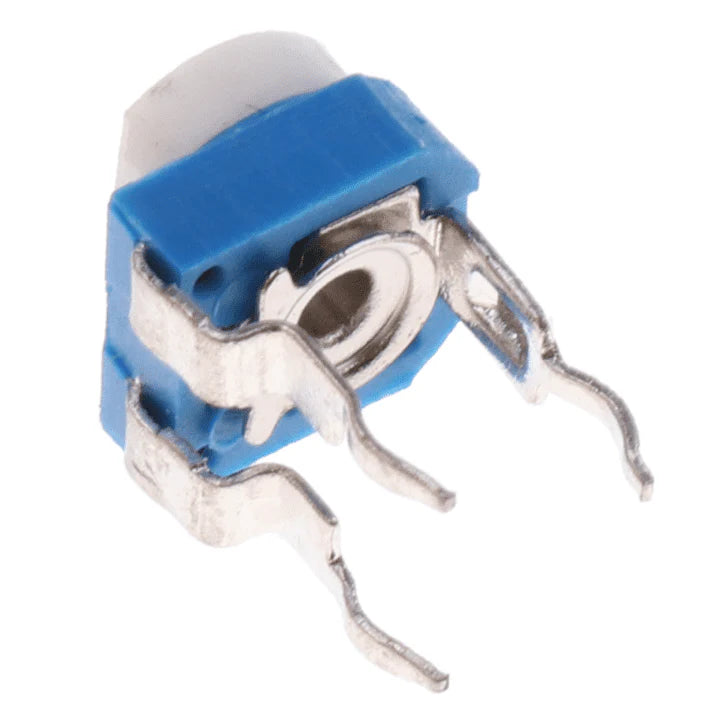

Cermet preset is a compact variable resistor and PCB mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated.

The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated.

Applications:

  • Can be used as a Voltage divider
  • Can use it to obtain an adjustable output voltage

Also check 2K ohm Cermet Potentiometer sold in a pack of 5 by Robocraze. It is a compact variable resistor and PCB mountable with 3 terminal pins. The voltage between the terminals varies as the preset is rotated. The outer two pins are connected to Vcc and 0V, while the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated.

Package includes:

  • 5 x 5K ohm Cermet Potentiometer

Specifications:

Resistance 5K
No. of Turns
Resistance Tolerance ± 10%
Potentiometer Mounting Through Hole
Lead Diameter 0.5mm
