1M ohm ( ? ) single turn trimpot variable resistors 3296W-1-105LF

SKU: TES-EV8102536
Regular price Rs. 22.00 Rs. 12.00 45% off
Unit price
per
No Reviews

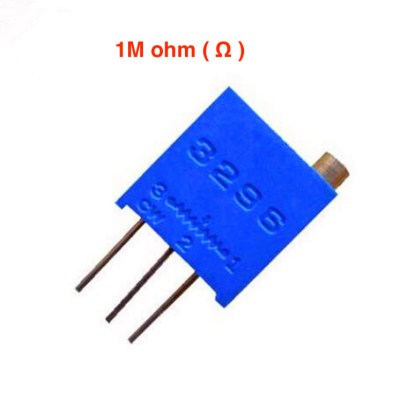

1M ohm ( ? ) single turn trimpot variable resistors 3296W-1-105LF

Trimpot is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated.

The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.



Specifications:-



  • Track Resistance: 1M ohm
  • Resistance Tolerance: ± 5%
  • Temperature Coefficient: ± 50ppm/°C
  • Potentiometer Mounting: Through Hole
  • Adjustment Type: Top
  • Contact Resistance Variation +: 1%
  • Full Power Rating Temperature: 85°C
  • Lead Diameter: 0.5mm
  • Operating Temperature Range: -55°C to +125°C
  • Resistance: 1M ohm
  • Resistor Element Material: Variable Rotary Trimmer
