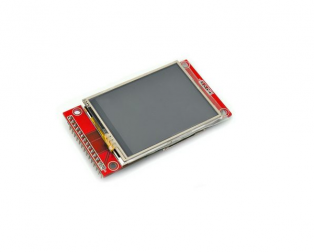

2.4-inch SPI Interface 240×320 TFT Display Module

2.4-inch SPI Interface 240×320 TFT Display Module

The 2.4-inch TFT Display Module with SPI Interface, boasting a resolution of 240×320, has consistently remained a sought-after product within the DIY industry. LCD screens are indispensable components for a myriad of projects, providing essential visual output. Similarly, serial port modules enjoy popularity due to their minimal IO requirements and straightforward usage. This particular 2.4-inch TFT LCD combines these desirable features, offering compactness, a SPI interface, and seamless integration.

Pin Description:

1. SDO: Serial clock output
2. LED: 3.3V IO and Power Supply pin
3. SCL: Serial clock input
4. SDA / SDI: Serial data input
5. DC: Data / Command selection
6. RST: Reset, Low level active.
7. CS: Chip Selection, Low level active
8. GND: Ground
9. VDD33: 3.3V Power Supply pin
10. UTFT Support

Features:

1. It is a 2.4″ SPI TFT LCD Screen Module
2. 10pins interface.
3. Not just an LCD break but include SD card (2GB),
4. The LCD drive ic is ILI9341.
5. It’s a 240 * 320 (resolution),
6. 2.4-inch TFT LCD screen.
7. The LCD has a wide viewing angle, the contrast is also very suitable.
8. The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
9. SD cards use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.
