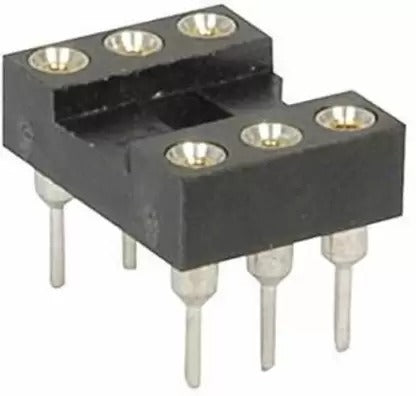

2pcs 6 Pin - Machine Tooled IC Socket (Round IC Base)
High-precision machine tooled 6-pin IC sockets featuring round, gold-plated turned-pin contacts for superior connectivity and reliable IC insertion/removal. This pack of 2 sockets is ideal for prototyping, testing, and production applications where frequent chip swapping or protection of expensive ICs is required. Available at The Engineer Store, Bengaluru with fast shipping and full technical support.
Specifications
| Product Type | Machine Tooled IC Socket (Turned Pin / Round Pin) |
| Pin Count | 6 Pins |
| Quantity | 2 pcs per pack |
| Contact Type | Round / Turned Pin (Precision Machined) |
| Contact Material | Copper Alloy with Gold or Tin Plating |
| Body Material | High-temperature thermoplastic (UL94V-0 rated) |
| Pin Pitch | 2.54mm (0.1 inch) standard DIP spacing |
| Row Spacing | 7.62mm (0.3 inch) standard narrow DIP |
| Contact Resistance | <=20 mOhm |
| Insulation Resistance | >=1000 MOhm |
| Rated Current | Up to 1A per pin |
| Rated Voltage | Up to 250V AC/DC |
| Operating Temperature | -40 degreesC to +105 degreesC |
| Insertion/Removal Cycles | Minimum 1000 cycles |
| Mounting Type | Through-Hole (THT) / PCB Mount |
| Soldering Compatibility | Wave solder and hand solder compatible |
| RoHS Compliant | Yes |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Precision Machine Tooled Contacts: Round turned-pin sockets provide significantly better grip and lower contact resistance compared to stamped leaf-spring (flat pin) sockets, ensuring rock-solid electrical connections.
- Gold/Tin Plated Pins: Plated contacts resist corrosion and oxidation, maintaining reliable conductivity over hundreds of insertion cycles.
- 6-Pin DIP Configuration: Standard 2.54mm pitch and 7.62mm row spacing fits all standard 6-pin DIP ICs, op-amps, timers, and microcontrollers in DIP-6 packages.
- High Insertion Life: Rated for 1000+ insertion/removal cycles - far superior to economy sockets - making them perfect for test jigs, development boards, and lab environments.
- Low-Profile Design: Minimal added height above the PCB, keeping your overall board profile compact.
- Heat-Resistant Body: UL94V-0 rated thermoplastic housing withstands soldering temperatures without warping or deformation.
- Breadboard & PCB Compatible: Standard through-hole pin dimensions allow direct use on solderless breadboards as well as custom PCBs.
- Pack of 2: Convenient quantity for small projects, prototypes, or as spares for your component inventory.
Why Choose Machine Tooled (Round Pin) Over Standard IC Sockets?
- Superior Contact Reliability: Turned-pin sockets grip IC leads with a precision cylindrical contact sleeve, providing 360 degrees contact versus the 2-point contact of flat-spring sockets. This dramatically reduces intermittent connection issues.
- Lower Contact Resistance: Typically <=20 mOhm versus 50-100 mOhm for stamped sockets, critical for sensitive analog circuits, precision op-amps, and high-frequency applications.
- Longer Service Life: Machined sockets maintain their spring tension and contact integrity over 1000+ cycles, whereas stamped sockets may lose grip after 50-100 cycles.
- Better for Expensive ICs: When working with costly or rare chips (vintage ICs, precision instrumentation amplifiers, specialty microcontrollers), machine tooled sockets protect your investment by allowing safe removal without soldering.
- Professional Grade: Preferred in aerospace, military, medical, and industrial applications where connection reliability is non-negotiable.
Common 6-Pin ICs Compatible with This Socket
- Op-Amps: Various single op-amps in DIP-6 packages
- Voltage Regulators: Select fixed and adjustable regulators in 6-pin DIP form
- Optocouplers: 6-pin DIP optoisolators (e.g., 4N25, MOC3021, MOC3041)
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy 2pcs 6 Pin - Machine Tooled IC Socket (Round IC Base) Online in India
Purchase the 2pcs 6 Pin - Machine Tooled IC Socket (Round IC Base) online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on 2pcs 6 Pin - Machine Tooled IC Socket (Round IC Base) with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy 2pcs 6 Pin - Machine Tooled IC Socket (Round IC Base) at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
