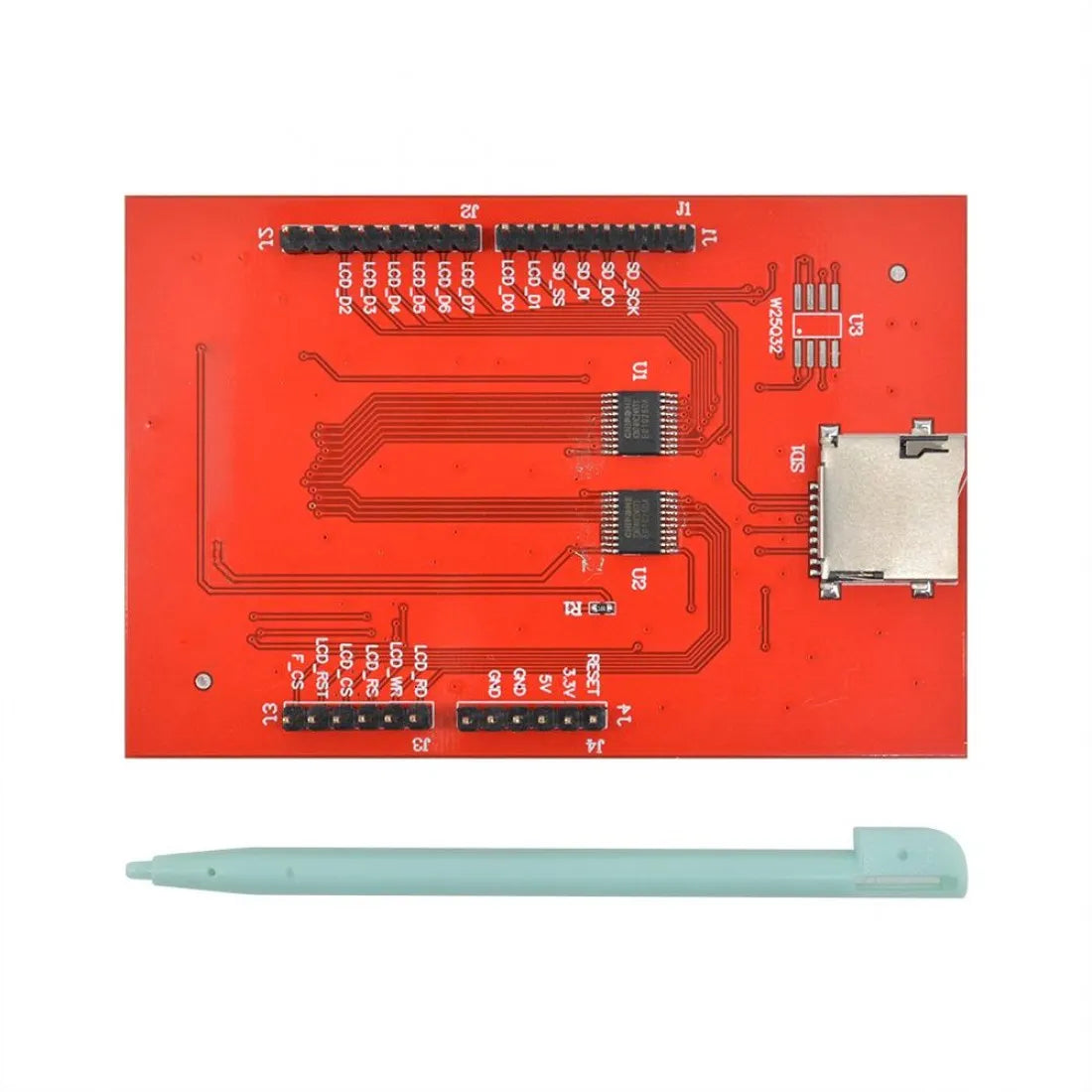

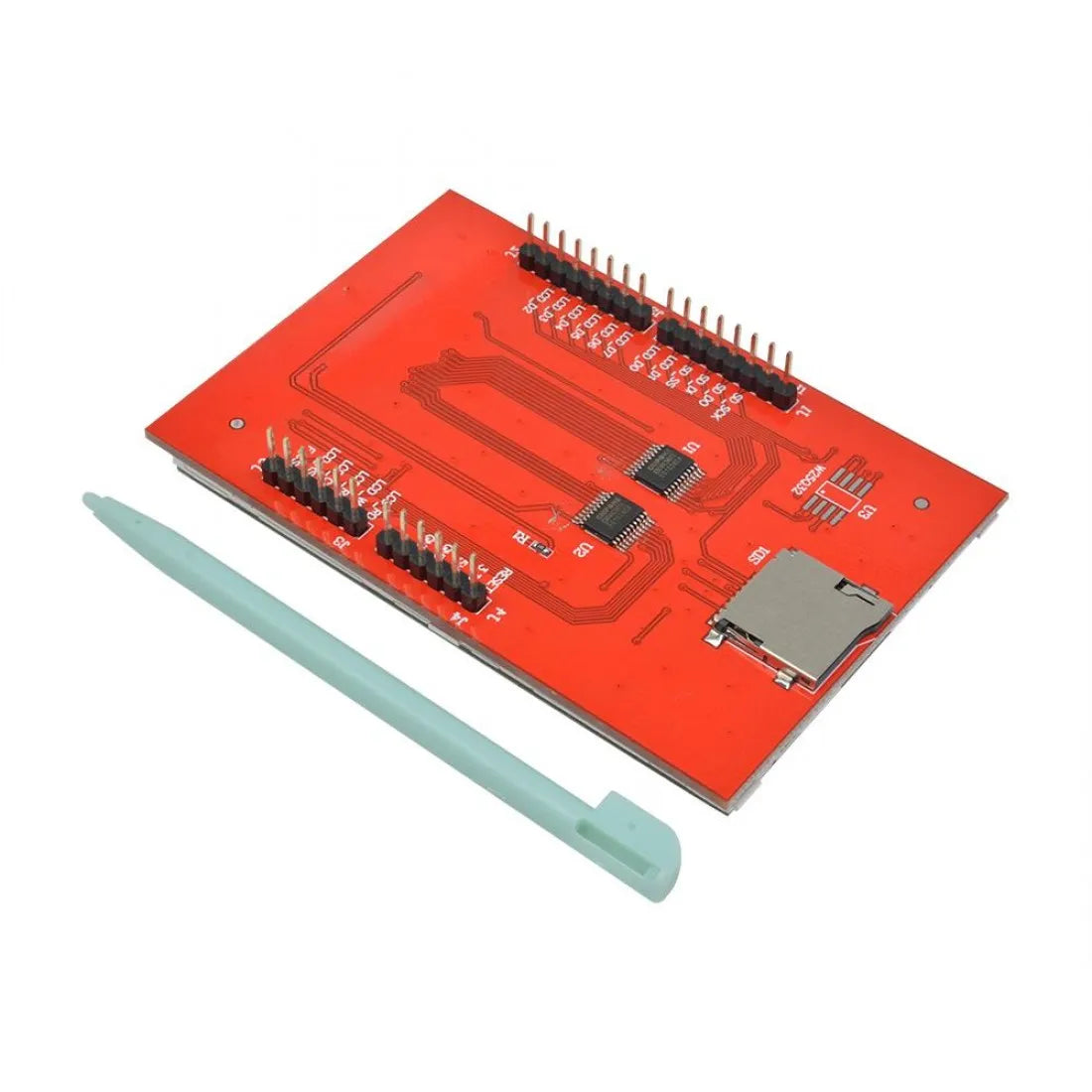

3.5 inch TFT 480×320 Ultra HD LCD Touch Screen Display for Arduino
by
My Store
SKU: TES-EV8102621
1% off
3.5 inch TFT 480×320 Ultra HD LCD Touch Screen Display for Arduino
3.5 inch TFT 480×320 Ultra HD LCD Touch Screen Display for Arduino is big (3.5″ diagonal) bright and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT.
As a bonus, this display has a resistive touchscreen sensor allowing you to control your application simply by touching any area of the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.
Features :
- 3.5-inch color screen,support 65K color display,display rich colors
- 480X320 resolution, optional touch function
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Product Parameters
| Name | Parameter |
| Display Color | RGB 65K color |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9486 |
| Resolution | 480*320 (Pixel) |
| Module Interface | 8-bit parallel interface |
| Active Area | 73.44*48.96(mm) |
| Module PCB Size | 85.49*55.63(mm) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Operating Voltage | 5V/3.3V |
