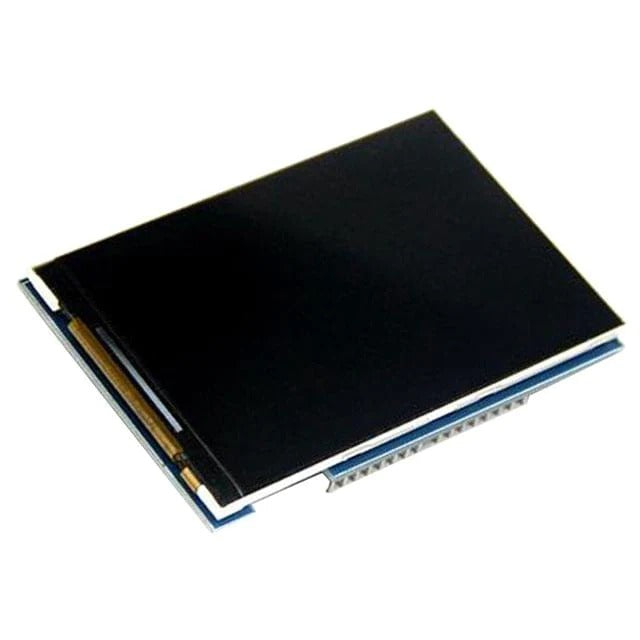

3.5 Inch TFT LCD Display for Arduino - Non-Touch Color Screen Module
Upgrade your Arduino projects with this vibrant 3.5-inch TFT LCD display from The Engineer Store, Bengaluru. This non-touch color screen module delivers sharp, full-color visuals with a 480x320 pixel resolution, making it ideal for data dashboards, graphical interfaces, image viewers, and real-time monitoring systems. Designed to plug directly into Arduino Uno and Mega boards, this display eliminates complex wiring and gets you up and running in minutes. Whether you're building a weather station, a home automation panel, or a portable instrument, this display brings your project to life with rich, readable graphics. Fast shipping across India with a 7-day warranty on manufacturing defects and dedicated technical support.
Specifications
| Display Size | 3.5 inches (diagonal) |
| Resolution | 480 x 320 pixels (HV) |
| Display Type | TFT LCD, full-color (65K colors) |
| Touch Functionality | No (non-touch version) |
| Driver IC | ILI9486 / ILI9488 (compatible) |
| Interface | 8-bit parallel data via Arduino shield header |
| Compatible Boards | Arduino Uno, Arduino Mega 2560, and compatible boards |
| Operating Voltage | 3.3V / 5V (onboard level shifting) |
| Backlight | LED backlight (always on) |
| Form Factor | Plug-in shield style (direct pin-to-pin mounting) |
| Display Area | Approximately 73.44mm x 48.96mm |
| Module Dimensions | Approximately 85mm x 55mm x 10mm |
| Viewing Angle | Wide viewing angle, full direction |
| Supported Libraries | MCUFRIEND_kbv, Adafruit GFX, UTFT, LCDWIKI |
| SD Card Slot | Yes - onboard micro SD card slot for image loading |
| Weight | Approximately 35g |
| Type | Electronics Display Module |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Vivid 3.5-Inch Color Display: 480x320 resolution with 65K colors delivers crisp text, smooth graphics, and vibrant images for any Arduino project.
- Direct Arduino Shield Plug-In: No breadboard or jumper wires needed - simply align the pins and press the display directly onto your Arduino Uno or Mega for instant connection.
- No Touch Panel - Simplified Design: Without a touch layer, this version offers a cleaner display, fewer library conflicts, and simpler code, making it perfect for output-only applications.
- Onboard Micro SD Card Slot: Load and display bitmap images directly from a micro SD card, enabling photo viewers, splash screens, and graphical menus.
- Wide Library Support: Fully compatible with popular Arduino libraries including MCUFRIEND_kbv, Adafruit GFX, and UTFT for fast development and extensive community resources.
- 5V and 3.3V Compatible: Built-in level shifting circuitry ensures safe operation with both 5V Arduino boards and 3.3V logic-level systems.
- Bright LED Backlight: High-brightness backlight ensures readability in various lighting conditions, from indoor labs to well-lit environments.
- Compact and Lightweight: At just 35 grams, the shield-style form factor keeps your project compact and portable without adding bulk.
Why Choose This 3.5 Inch TFT LCD Display?
- 100% Authentic: Sourced directly from trusted and authorized component suppliers - no clones or substandard parts.
- Plug-and-Play Convenience: Shield-style design means zero soldering and zero complex wiring - mount it and start coding immediately.
- Ideal for Output-Only Projects: Without touch overhead, you get a simpler, more reliable display solution for dashboards, meters, and status monitors.
- Extensive Community Resources: Thousands of tutorials, example sketches, and forum discussions available online for rapid prototyping and troubleshooting.
- Fast 1-5 days shipping: Dispatched from our Bengaluru warehouse with same-day delivery available within Bengaluru city.
- Expert Technical Support: Our engineering team provides hands-on guidance via email and WhatsApp to help you integrate the display into your project.
- 7-day warranty on manufacturing defects: Full manufacturer warranty covers defects in materials and workmanship with hassle-free replacement.
- Versatile Compatibility: Works seamlessly with Arduino Uno R3, Arduino Mega 2560, and numerous
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy 3.5 TFT LCD Display for Arduino without touch Online in India
Purchase the 3.5 TFT LCD Display for Arduino without touch online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on 3.5 TFT LCD Display for Arduino without touch with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy 3.5 TFT LCD Display for Arduino without touch at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
