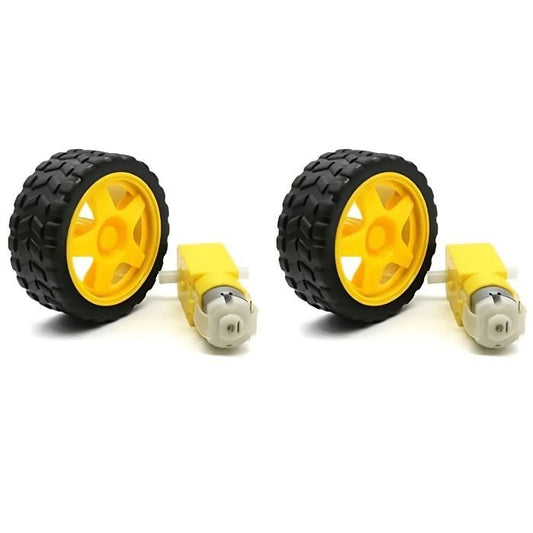

300 RPM Dual Shaft BO Motor + Wheel (2 pcs)
Build your next robotics project with this combo pack of two 300 RPM dual-shaft BO motors paired with matching wheels. Ideal for line-following robots, obstacle-avoiding bots, and DIY smart cars, these motors deliver reliable torque and balanced speed right out of the box. Available at The Engineer Store, Bengaluru with fast shipping and full technical support.
Specifications
| Motor Type | Dual Shaft BO (Battery Operated) DC Geared Motor |
| RPM (No Load) | 300 RPM @ 6V |
| Operating Voltage | 3V - 9V DC |
| Rated Voltage | 6V DC |
| Stall Current | ~800 mA @ 6V |
| No-Load Current | ~150 mA @ 6V |
| Shaft Configuration | Dual-sided output shaft (D-shaped) |
| Shaft Diameter | ~5.5 mm (D-cut) |
| Motor Body Dimensions | ~70 x 22 x 18 mm |
| Wheel Diameter | ~65 mm |
| Wheel Width | ~28 mm |
| Wheel Material | Plastic hub with rubber tire tread |
| Gear Type | Plastic spur gearbox (enclosed) |
| Weight (per motor + wheel) | ~45 g |
| Package Quantity | 2 Motors + 2 Wheels |
| Compatibility | Standard 2WD / 4WD robot chassis, L298N, L293D, TB6612 motor drivers |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose This?
- Dual-shaft versatility: Output shafts on both sides let you mount a wheel on one end and an encoder disc on the other for speed feedback.
- Matched wheel included: Each motor ships with a press-fit 65 mm rubber-grip wheel - no extra sourcing needed.
- 300 RPM sweet spot: Balanced speed-to-torque ratio perfect for small to mid-size robotic platforms and smart cars.
- Wide voltage range: Operates from 3V to 9V, compatible with common battery packs (4xAA, Li-ion, 9V).
- Plug-and-play with popular drivers: Solder two wires and connect to L298N, L293D shield, or any H-bridge module.
- Lightweight & compact: Minimal footprint fits standard 2WD and 4WD chassis cutouts without modification.
- 100% authentic from trusted suppliers
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse
- Expert technical support included
Project Ideas
- Line-Following Robot: Pair with IR sensors and an Arduino to build a bot that tracks black lines on a white surface at a smooth, controllable pace.
- Obstacle-Avoiding Car: Combine with an ultrasonic sensor (HC-SR04) and L298N driver to create an autonomous vehicle that navigates around objects.
- Bluetooth / Wi-Fi Controlled Car: Use an HC-05 module or ESP32 to drive the motors wirelessly from a smartphone app.
- Encoder-Based Odometry: Attach encoder discs to the rear shafts and measure distance traveled for precise navigation and PID speed control.
- Sumo Bot: Mount on a compact chassis with edge-detection sensors for mini sumo robot competitions.
- STEM Classroom Kit: Ideal hands-on component for teaching DC motor principles, gear ratios, and basic embedded programming to students.
What's in the Box
- 2 x 300 RPM Dual Shaft BO Geared DC Motors
- 2 x 65 mm Rubber-Grip Wheels (press-fit onto motor shaft)
- Documentation and support materials
Frequently Asked Questions
Is this 100% authentic?
Yes, sourced directly from authorized distributors. Authentication verified before dispatch.
What warranty is provided?
7-day warranty on manufacturing defects covering manufacturing defects. Replacement guaranteed within warranty period.
How fast is shipping?
1-5 business days to most pin codes in India from our Bengaluru warehouse. Same-day dispatch available for orders within Bengaluru.
Buy 300 RPM Dual Shaft BO Motor + Wheel (2 pcs) Online in India
Purchase the 300 RPM Dual Shaft BO Motor + Wheel (2 pcs) online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on 300 RPM Dual Shaft BO Motor + Wheel (2 pcs) with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy 300 RPM Dual Shaft BO Motor + Wheel (2 pcs) at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
