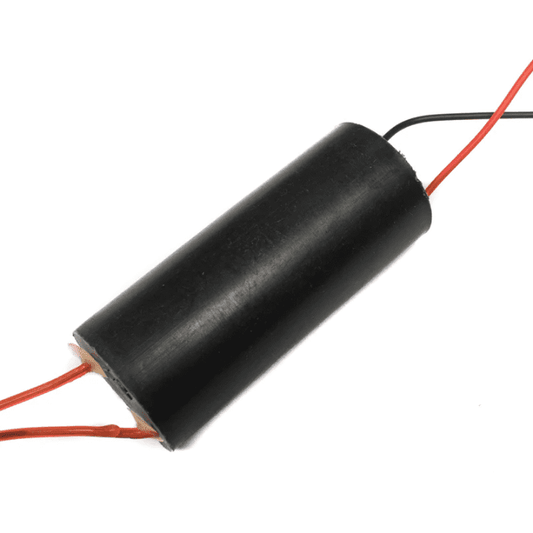

40kV High Voltage Generator 3-6V DC High Voltage Pulse Generator
400kV High Voltage Generator 3-6V DC High Voltage Pulse Generator
The 400kV High Voltage Generator offers reliable and powerful performance for your electrical projects. This 3-6v DC pulse generator is ideal for use in automotive, communication, medical or industrial applications that require high voltage levels to be generated. The device has a built-in safety protection feature which prevents it from overloading or damage caused by incorrect connections. Its highly efficient cooling system allows effective generation of power even at higher temperatures while the compact size makes this unit perfect for tight spaces and restricted locations . Additionally , its robust construction ensures durability backed up with warranted reliability resulting in outstanding long term performance without any service interruptions due to faulty components during operation time periods. With all these features combined together , the High Voltage Generator promises top notch quality product guarantees hassle free operations every single time!
This is a high-voltage step-up power supply module or boost converter that is often used in electronics demonstrations and experiments. Where a 3-6V input from a standard Li-ion battery can create a voltage of up to 400KV. The Tesla coil principle is used in this high-voltage module.
Wiring Instructions:
- Input: Red(+) and Black(-)

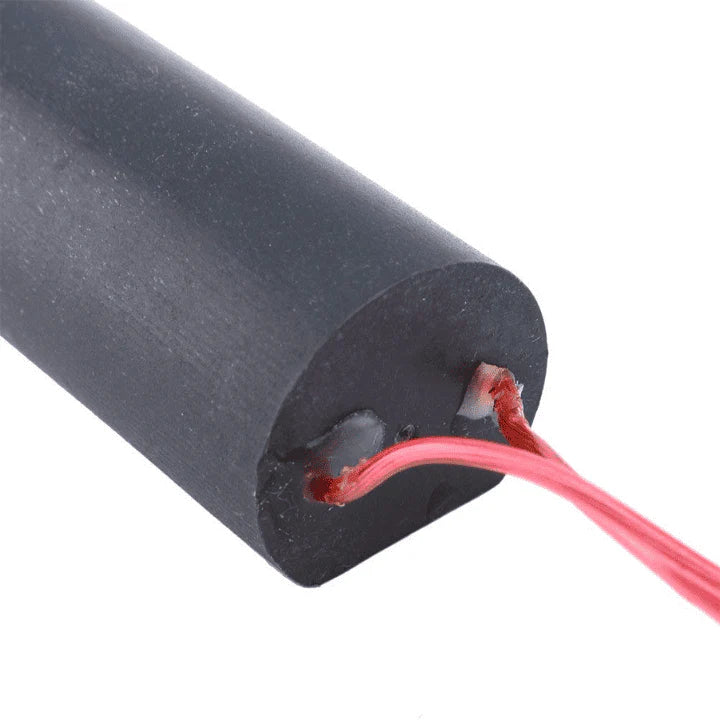

- Output: Same Colour wires on Opposite side.
Note:
- Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity.
- The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily.
- The module has high power and inner heat is not easily dissipated, so it can not work continuously for long time (<10 seconds each time)
Package includes:
- 1 x 40kV High Voltage Generator 3-6V DC High Voltage Pulse Generator
Specifications:
| Input Voltage | DC 3V-6V |
| Input Current | 2A-5A |
| Output Voltage | DC 400kV |
| Output Current | 0.5A |
| Discharge Time | 10s |
| Input line Colour Code | Red +, Black - |
| Size | 56.5x24mm |
