30% off

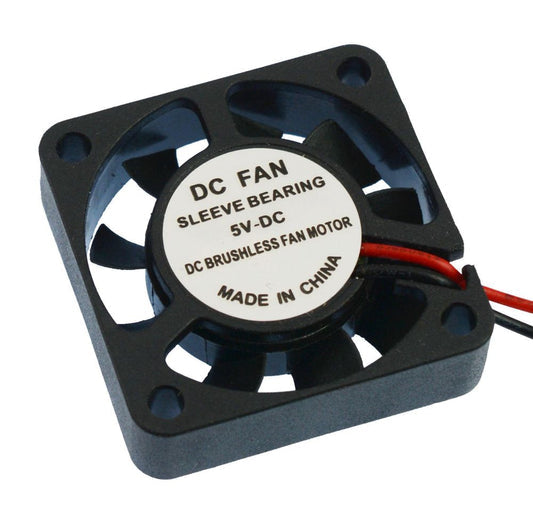

5V 4010 DC Fan
Compact and reliable 5V 4010 DC brushless cooling fan, ideal for electronics cooling, 3D printers, Raspberry Pi, and embedded systems. Measuring 40mm x 40mm x 10mm, this fan delivers efficient airflow in a slim form factor, keeping your components cool and performing at their best. Available at The Engineer Store, Bengaluru with fast shipping and full technical support.
Specifications
| Fan Size | 40mm x 40mm x 10mm |
| Operating Voltage | 5V DC |
| Voltage Range | 3.5V - 5.5V DC |
| Current Draw | ~0.1A - 0.2A (typical) |
| Fan Type | Brushless DC Axial Fan |
| Bearing Type | Sleeve Bearing |
| Connector | 2-Pin JST / Bare Wire (varies) |
| Airflow Direction | Axial (label side intake, open side exhaust) |
| Noise Level | ~20-25 dBA (low noise operation) |
| Speed | ~5000-7000 RPM (typical) |
| Mounting Holes | 4x corner holes (32mm hole-to-hole spacing) |
| Wire Length | ~15-20 cm |
| Weight | ~8-10 grams |
| Lifespan | ~30,000 hours continuous operation |
| Operating Temperature | -10 degreesC to +70 degreesC |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Ultra-Compact 40mm Design: The slim 10mm profile fits easily into tight enclosures, project boxes, and slim electronics housings where space is at a premium.
- 5V USB-Compatible Operation: Runs directly from 5V power sources including USB ports, Raspberry Pi GPIO headers, Arduino 5V pins, and standard USB power banks - no additional voltage regulators needed.
- Brushless DC Motor: Maintenance-free brushless design ensures long service life, smooth operation, and consistent airflow over thousands of hours of continuous use.
- Low Noise Performance: Engineered for quiet operation at approximately 20-25 dBA, making it suitable for desktop projects, bedroom setups, and noise-sensitive environments.
- Efficient Thermal Management: Delivers focused axial airflow to dissipate heat from processors, voltage regulators, motor drivers, LED arrays, and other heat-generating components.
- Easy Mounting: Four corner mounting holes with standard 32mm spacing allow secure attachment using M3 screws or self-tapping screws to enclosures and heatsinks.
- Lightweight Construction: Weighing under 10 grams, this fan adds virtually no weight to portable or drone-based projects.
- PWM Speed Control Compatible: Can be paired with a simple transistor circuit (e.g., 2N2222, MOSFET) for variable speed control via Arduino or microcontroller PWM output.
Why Choose This?
- 100% authentic from trusted suppliers - no counterfeit or recycled components
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse to most Indian cities
- Perfect 5V compatibility eliminates the need for voltage conversion circuitry
- Industry-standard 40mm form factor fits universal mounting points
- Expert technical support included for wiring, integration, and troubleshooting
- Tested and verified for consistent airflow and reliable startup
Project Ideas
- Raspberry Pi Cooling: Mount directly onto a Raspberry Pi case or heatsink to prevent thermal throttling during intensive tasks like video streaming, gaming emulation, or running AI models.
- 3D Printer Part Cooling: Use as a part-cooling fan on 3D printers such as Ender 3, CR-10, or custom builds to improve print quality by rapidly cooling freshly extruded filament layers.
- Arduino & Microcontroller Projects: Add active cooling to motor driver shields (L298N, L293D), voltage regulators, or high-power LED circuits that generate excess heat.
- Custom PC & Electronics Enclosures: Integrate into project boxes, server enclosures, or networking equipment housings to maintain optimal internal temperatures.
- Power Supply Cooling: Extend the lifespan of bench power supplies, battery chargers, and DC-DC converters by adding forced-air cooling.
- Ventilation & Air Circulation: Build mini fume extractors for soldering stations, small air purifiers with activated carbon filters, or desktop air circulators.
- Robotics & Drones: Cool ESCs, flight controllers, and onboard processors in compact
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy 5V 4010 DC Fan Online in India
Purchase the 5V 4010 DC Fan online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on 5V 4010 DC Fan with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy 5V 4010 DC Fan at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
