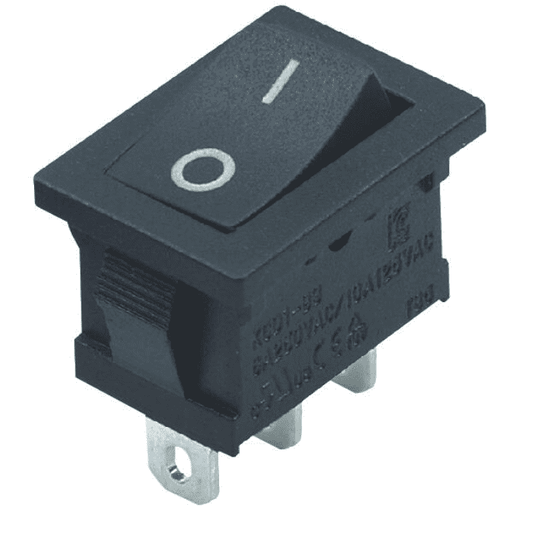

6A 250V 3-Pin SPDT ON-OFF Rocker Switch (JL MRS 102 BK)
A compact and reliable SPDT rocker switch rated at 6A 250V, featuring a clean black actuator and snap-in mounting design. Ideal for power control, mode selection, and circuit switching in DIY electronics, appliances, and industrial panels. Premium electronics from The Engineer Store, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Switch Type | SPDT (Single Pole Double Throw) Rocker Switch |
| Model | JL MRS 102 BK |
| Configuration | ON-OFF (2-position) |
| Current Rating | 6A at 250V AC / 10A at 125V AC |
| Number of Pins | 3 (Common, Normally Open, Normally Closed) |
| Contact Form | SPDT - 1 Common terminal switches between 2 output terminals |
| Actuator Color | Black |
| Mounting Style | Snap-in panel mount |
| Panel Cutout | Approximately 19.2mm x 13mm (standard MRS-102 footprint) |
| Body Dimensions (approx.) | 21mm x 15mm x 16mm (L x W x H) |
| Terminal Type | Solder lug / PCB through-hole pins |
| Insulation Resistance | >=100 MOhm |
| Dielectric Strength | 1500V AC for 1 minute |
| Contact Resistance | <=30 mOhm |
| Mechanical Life | >=10,000 cycles |
| Electrical Life | >=6,000 cycles at rated load |
| Operating Temperature | -25 degreesC to +85 degreesC |
| Housing Material | PA66 (Nylon) - flame retardant UL94 V-0 |
| Contact Material | Silver alloy |
| Weight (approx.) | ~3g per unit |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- SPDT 3-Pin Configuration: Common terminal can switch between two circuits - enables ON-OFF control as well as circuit selection when wired accordingly.
- 6A 250V AC Rating: Handles substantial loads safely, suitable for mains-voltage appliances, power tools, lighting, and motor control circuits.
- Compact Snap-In Design: Standard rectangular cutout for quick, tool-free panel mounting - retaining clips hold the switch securely in place.
- Tactile Rocker Action: Positive click feel with clear ON/OFF positions for confident switching and reliable user feedback.
- Flame-Retardant Housing: PA66 nylon body rated UL94 V-0 ensures safety in high-temperature and high-voltage environments.
- Silver Alloy Contacts: Low contact resistance (<=30 mOhm) delivers efficient current transfer with minimal heat generation and arcing.
- Long Mechanical Life: Rated for 10,000+ switching cycles, ensuring years of dependable service in regular-use applications.
- Wide Temperature Range: Operates reliably from -25 degreesC to +85 degreesC, suitable for indoor and outdoor enclosures.
- Versatile Wiring Options: Solder lug terminals accept direct wire soldering or quick-connect methods for flexible installation.
- Clean Black Aesthetic: Neutral black actuator blends seamlessly into instrument panels, enclosures, and consumer products.
Pin Configuration & Wiring Guide
| Pin 1 | Normally Closed (NC) - Connected to Common when switch is OFF |
| Pin 2 (Center) | Common (COM) - Input/output terminal |
| Pin 3 | Normally Open (NO) - Connected to Common when switch is ON |
For simple ON-OFF operation: Connect your load between the Common (center pin) and the NO pin. When the rocker is toggled ON, the circuit completes. Leave the NC pin unconnected or use it for an indicator LED / secondary circuit.
For circuit selection: Wire two different loads to the NO and NC pins respectively, with the power source on the Common pin. The rocker toggles between the two circuits.
