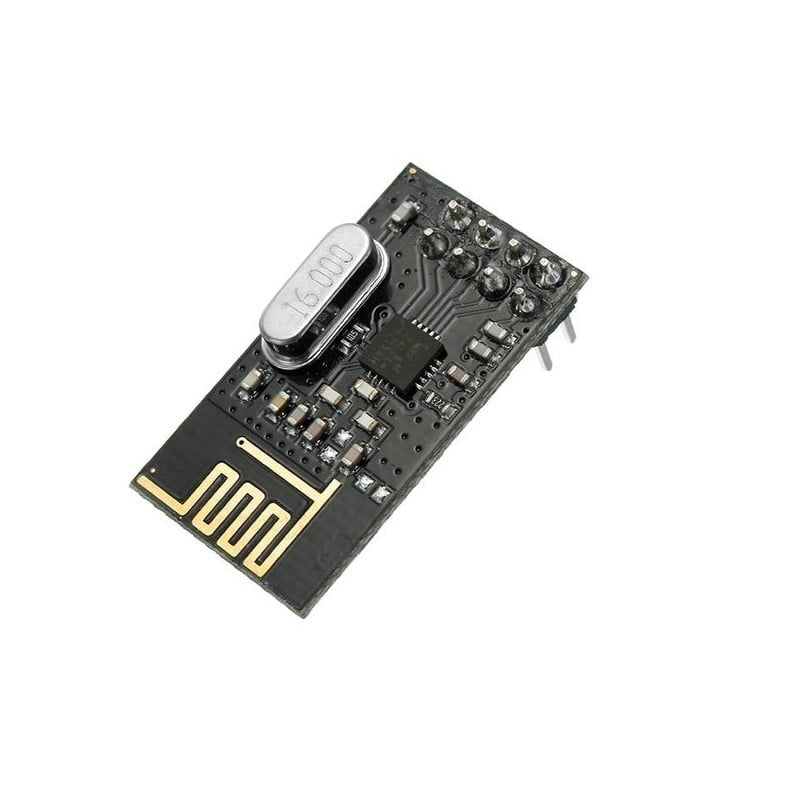

Ai Thinker NF-01-S Wireless Transceiver Module
The Ai Thinker NF-01-S is a compact, low-power 2.4GHz wireless transceiver module based on the nRF24L01+ chipset. Designed for reliable short-range wireless communication, it's ideal for IoT devices, remote controls, sensor networks, and Arduino/ESP-based projects. Available now at The Engineer Store, Bengaluru with fast shipping and full technical support.
Specifications
| Module | Ai Thinker NF-01-S (nRF24L01+ based) |
| Frequency Band | 2.4 GHz ISM Band (2400-2525 MHz) |
| Data Rate | 250 kbps / 1 Mbps / 2 Mbps selectable |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Operating Voltage | 1.9V - 3.6V (3.3V recommended) |
| I/O Tolerance | 5V tolerant on logic pins |
| Communication Interface | SPI (Serial Peripheral Interface) |
| Output Power | Up to 0 dBm (1 mW) |
| Receive Sensitivity | -85 dBm at 1 Mbps |
| Communication Range | Up to 100 meters (open air, line of sight) |
| Channels | 126 RF channels |
| Addressing | 6 data pipes with unique addresses |
| Packet Handling | Auto acknowledgement & auto retransmit |
| FIFO | 3-level 32-byte TX and RX FIFO |
| Current Consumption (TX) | ~11.3 mA at 0 dBm |
| Current Consumption (RX) | ~13.5 mA at 2 Mbps |
| Standby Current | ~26 uA |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Module Dimensions | ~15 mm x 29 mm (compact SMD form factor) |
| Pin Count | 8 pins (2x4 header: VCC, GND, CE, CSN, SCK, MOSI, MISO, IRQ) |
| Antenna | On-board PCB antenna |
| Type | Wireless Transceiver Module |
| Origin | Original Ai Thinker - Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- nRF24L01+ Core: Built on the proven Nordic Semiconductor nRF24L01+ transceiver IC for rock-solid 2.4GHz wireless communication
- Ultra-Low Power: Micro-amp standby current makes it perfect for battery-powered and energy-harvesting applications
- Multi-Data Rate: Selectable 250kbps, 1Mbps, or 2Mbps data rates to balance range versus throughput
- 126 Channels: Wide channel selection minimizes interference in crowded 2.4GHz environments
- 6 Data Pipes: Supports 1-to-6 star network topology with unique addressing per pipe - no external networking stack needed
- Auto ACK & Retransmit: Hardware-level automatic acknowledgement and retransmission ensures reliable packet delivery without software overhead
- SPI Interface: Standard 4-wire SPI for easy integration with Arduino, STM32, ESP32, Raspberry Pi, and other microcontrollers
- 5V Logic Tolerant: Operates at 3.3V but logic pins safely accept 5V signals - directly compatible with Arduino Uno/Nano/Mega
- Compact PCB Antenna: On-board antenna eliminates the need for external antenna hardware while maintaining up to 100m range
- Industrial Temperature Range: Rated from -40 degreesC to +85 degreesC for deployment in harsh environments
- Ai Thinker Quality: Manufactured by Ai Thinker, a trusted name in wireless modules (ESP8266, ESP32, LoRa series)
Pin Configuration
| Pin | Name | Function |
| 1 | GND | Ground |
| 2 | VCC | Power Supply (1.9V-3.6V, |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
