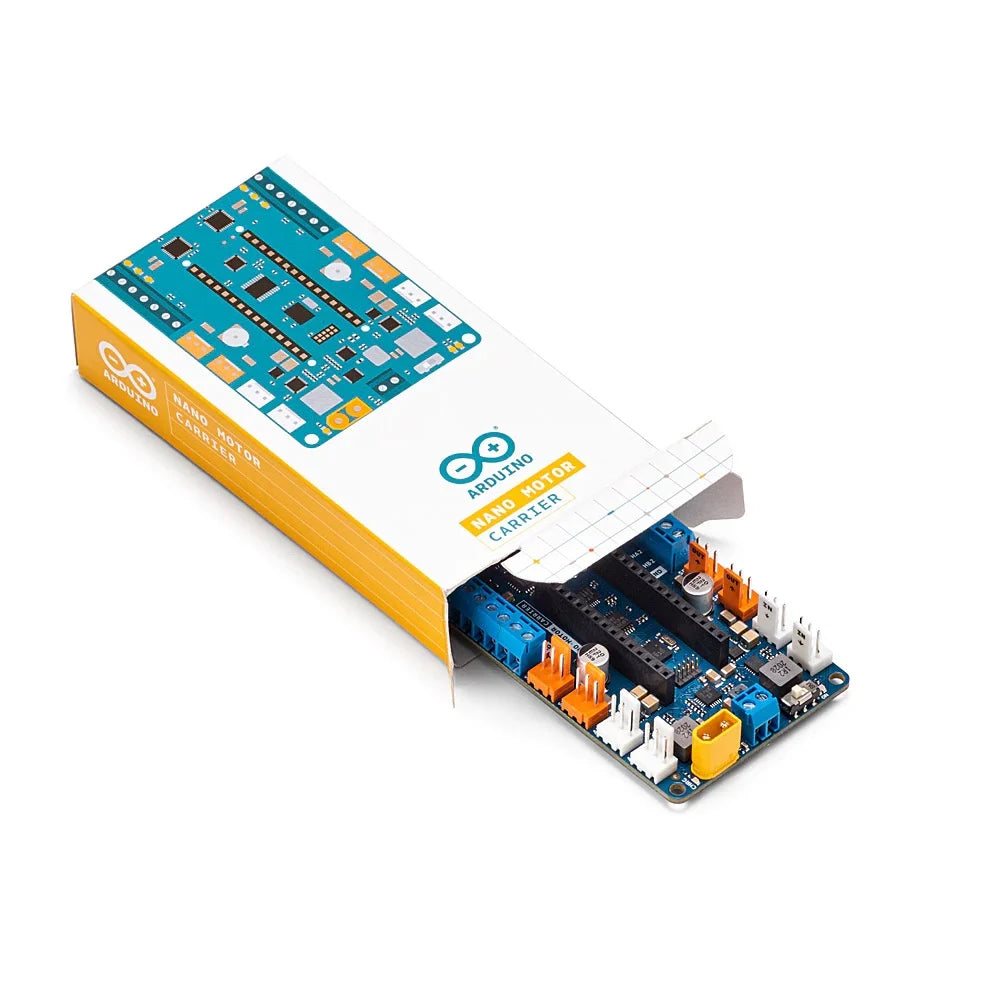

Arduino Nano Motor Carrier
Drive DC motors, servo motors, and encoders directly from your Arduino Nano - the Arduino Nano Motor Carrier is a compact, purpose-built expansion board that transforms your Nano into a powerful robotics controller. Available now at The Engineer Store, Bengaluru with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Board Type | Motor Driver / Carrier Board for Arduino Nano |
| Compatible Boards | Arduino Nano 33 IoT, Arduino Nano 33 BLE, Arduino Nano Every |
| DC Motor Channels | 4 (H-bridge driven, bidirectional) |
| Servo Motor Outputs | 4 (PWM-controlled) |
| Encoder Inputs | 2 quadrature encoder channels |
| Battery Connector | 3-cell LiPo (3S, 11.1 V nominal) with onboard battery monitoring |
| Motor Driver IC | Dual DRV8837 (or equivalent integrated H-bridges) |
| Motor Voltage Range | Up to 11.1 V (via LiPo battery input) |
| Max Continuous Current per Motor | ~1.8 A per channel |
| Onboard IMU | 6-axis IMU (accelerometer + gyroscope) for motion sensing |
| Communication | I2C bus for sensor expansion |
| Additional Features | Onboard voltage regulator, interrupt-capable encoder pins, LED indicators |
| Board Dimensions | Compact form factor matching Arduino Nano footprint |
| Operating Voltage (Logic) | 3.3 V (regulated from battery) |
| Weight | Approx. 15 g (without Nano board) |
| Software Library | Arduino_MotorCarrier library (Arduino IDE compatible) |
| Origin | Original / Authentic Arduino product |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Product Overview

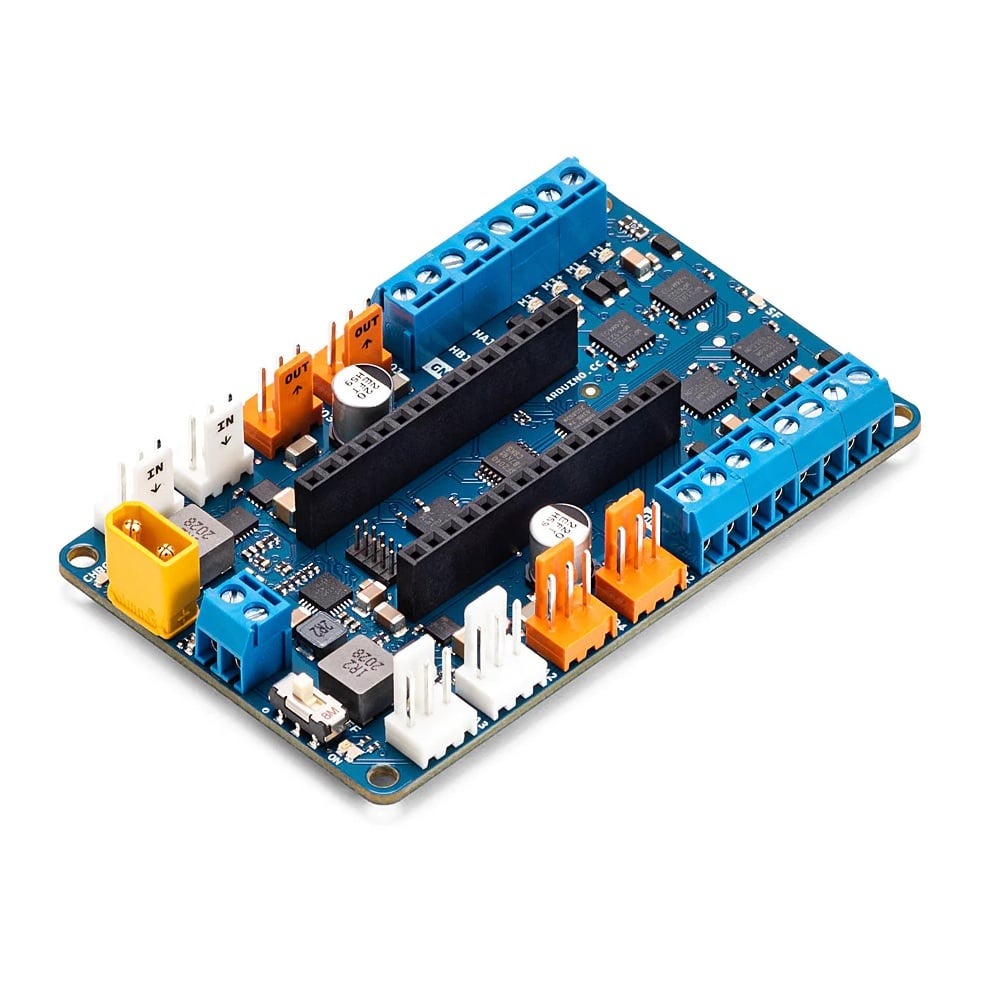

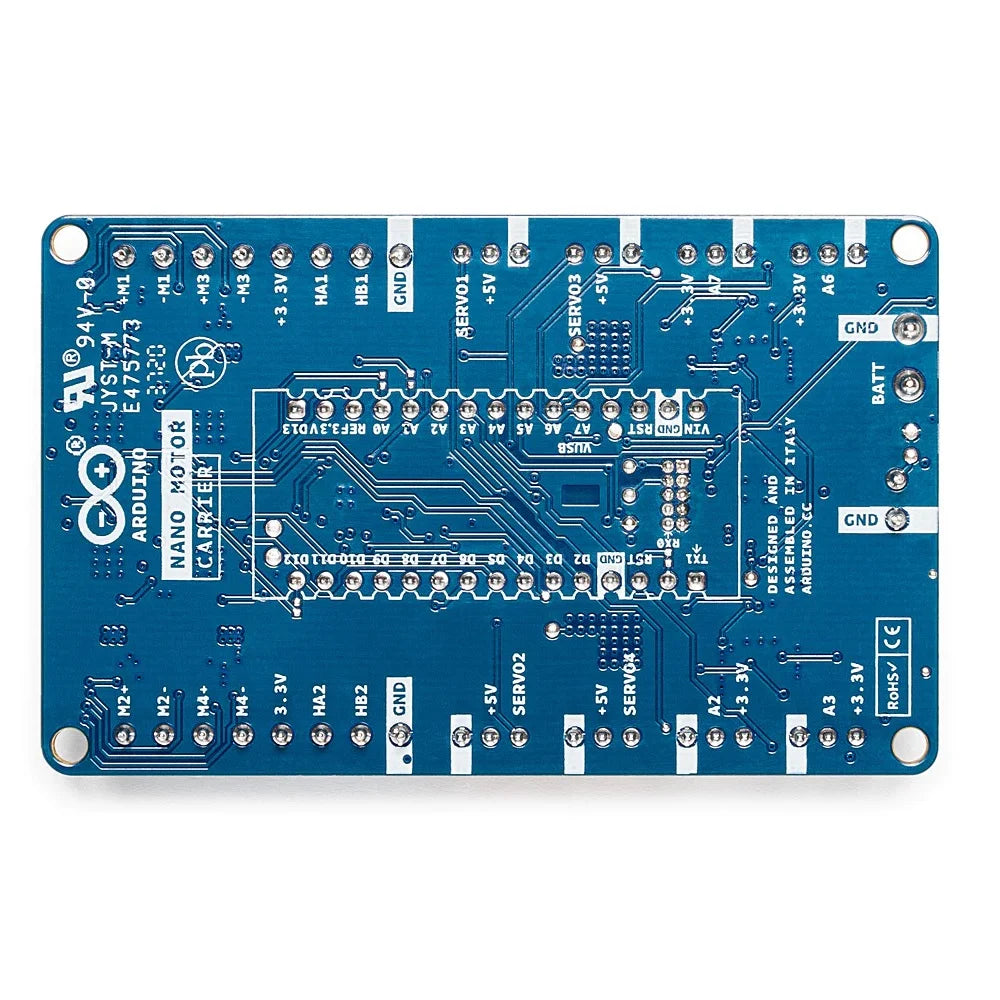

The Arduino Nano Motor Carrier is an official Arduino expansion board designed to sit directly beneath a compatible Arduino Nano, creating a self-contained motor control system in an incredibly small package. Whether you are building a line-following robot, a self-balancing vehicle, or an autonomous rover, this carrier board provides everything you need to control up to four DC motors and four servo motors simultaneously - all powered from a single LiPo battery.
At the heart of the board are dual H-bridge motor drivers capable of delivering up to 1.8 A continuous current per channel, enabling smooth bidirectional control of small to medium DC gear motors. Two dedicated quadrature encoder inputs allow precise speed and position feedback, making closed-loop PID control straightforward. The onboard 6-axis IMU adds accelerometer and gyroscope data for orientation-aware robotics projects like balancing robots and drone-style platforms.
The integrated battery management circuit accepts a standard 3-cell LiPo battery and provides regulated power to both the motors and the Nano board, eliminating the need for separate power supplies or messy wiring. Voltage monitoring lets your code track battery levels in real time, so your robot can alert you or safely shut down before the battery is depleted.
Programming is simple thanks to the official Arduino_MotorCarrier library, which abstracts low-level motor control into clean, intuitive functions. Set motor speed and direction, read encoder ticks, configure PID loops, and read IMU data - all with just a few lines of code in the Arduino IDE.
Key Features
- 4-Channel DC Motor Control: Drive up to four brushed DC motors independently with full forward/reverse capability and PWM speed control.
- 4 Servo Outputs: Connect standard hobby servos for pan-tilt mechanisms, grippers, steering assemblies, and articulated joints.
- Dual Quadrature Encoder Inputs: Read high-resolution encoder feedback for precise wheel odometry and closed-loop speed regulation.
- Onboard 6-Axis IMU: Built-in accelerometer and gyroscope for tilt sensing, orientation tracking, and motion-based control algorithms.
- LiPo Battery Powered: Single 3S LiPo connector powers the entire system - motors, servos, and microcontroller - with onboard voltage regulation and battery level monitoring.
- Nano-Compatible Form Factor: Plugs directly onto Arduino Nano 33 IoT, Nano 33 BLE, or Nano Every headers for a clean, stackable design with no breadboard required.
- Dedicated Arduino Library: The Arduino_MotorCarrier library provides ready-made functions for motor control, encoder reading, PID tuning, servo positioning, and IMU data access.
- I2C Expansion: Accessible I2C bus allows you to add external sensors such as ultrasonic rangefinders, ToF distance sensors, or OLED displays.
- Compact & Lightweight: At roughly 15 g, the carrier adds minimal weight - ideal for weight-sensitive applications like mini sumo bots and micro rovers.
