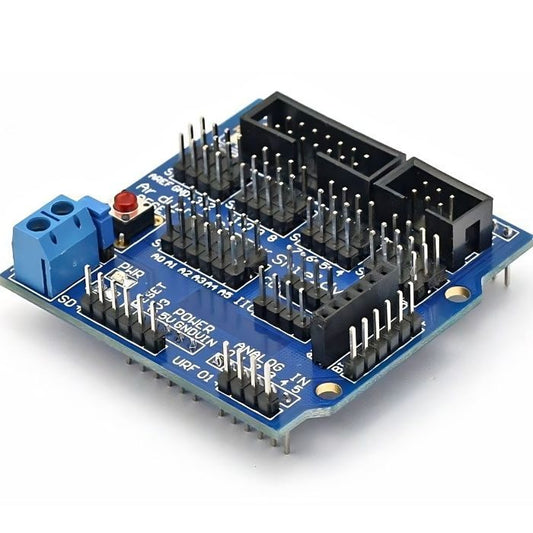

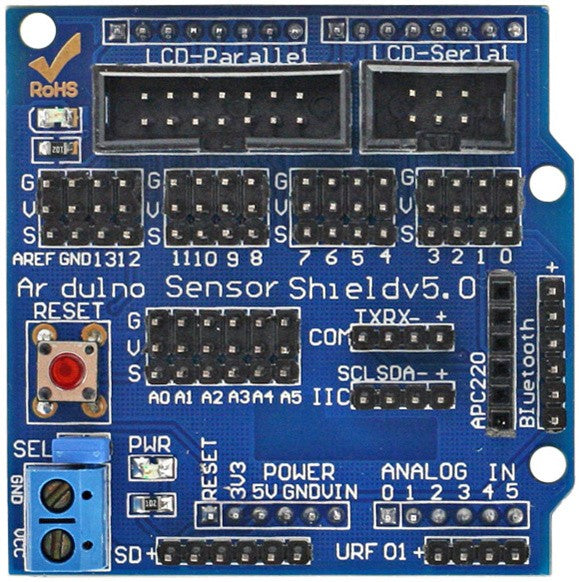

Arduino UNO Sensor Shield Expansion board V5

UNO Sensor Shield for Arduino Expansion board V5

This sensor shield for UNO board compatible with Arduino is the latest shield V5 model. This sensor shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers and many more directly to your Arduino through this Arduino Sensor Shield. Each functional module has buckled port with VCC, GND, and Output, which has the corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

You can easily connect with usual analog sensors by using this expansion board, such as ray sensor. If you support by this expansion board and the corresponding circuit module, you only need to combine Arduino and sensors module by using special cables, because concrete circuit details achieve by corresponding sensors module, so you only need to consider that how to read data coming from the sensor by the program in Arduino.

check out : Arduino UNO R3, Leonardo Multifunctional Expansion Board

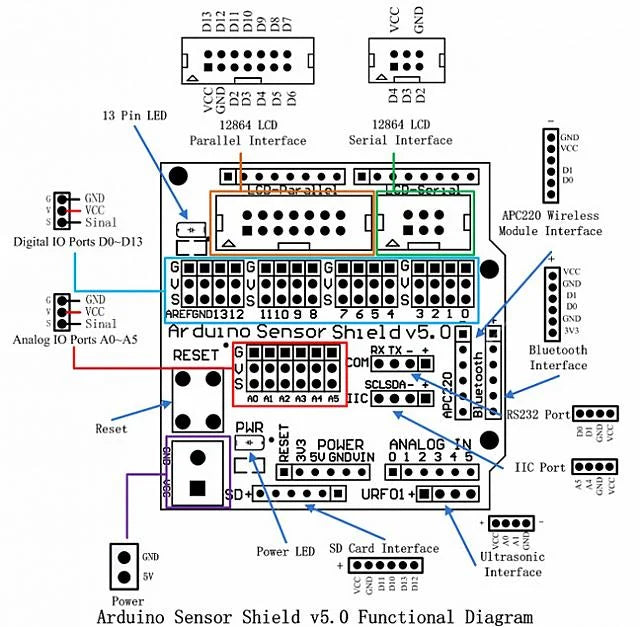

Features:

• Laminated design
• PCB immersion gold processing technology
• IIC interface
• Bluetooth module communication interface
• SD card module communication interface
• APC220 wireless rf modules communication interface
• RB URF v1.1 ultrasonic sensors interface
• 12864 LCD string of line and parallel interface
• 32 servo controller interface

Package Includes

• 1 x UNO Sensor Shield for Arduino
