Atal Tinkering Laboratory (ATL) Setup Kit

Atal Tinkering Lab ATL

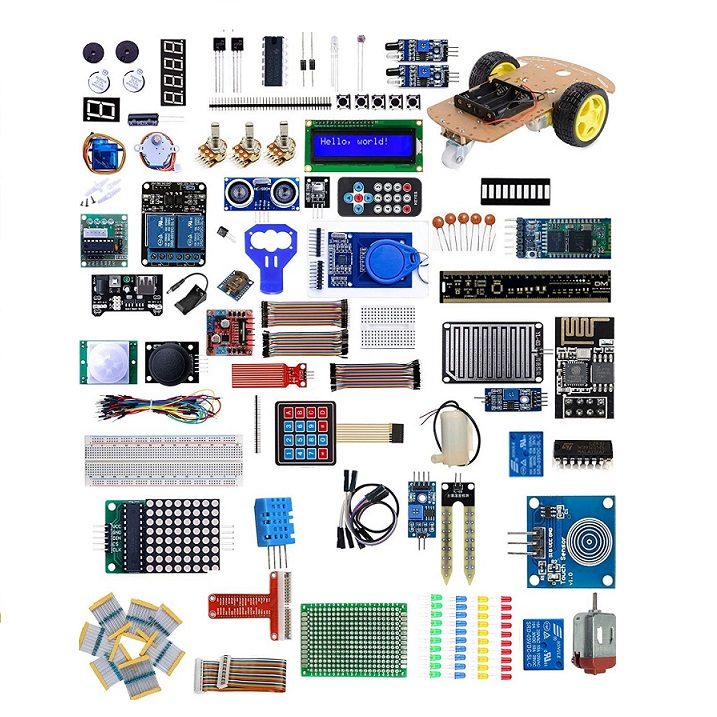

Atal Tinkering Lab ATL Package 1 for 60 Students class containing below items:

• 30 x Arduino UNO R3 SMD
• 10 x Arduino Nano
• 10 x Arduino MEGA Ch3405 x Raspberry Pi 3Model B+
• 30 x Solderless Breadborad 400 Pin
• 20 x Solderless Breadborad 800 Pin
• 20 x Self Adhesive Proto Shield
• 30 x Solderable Board FR2 A(140X90 MM)
• 30 x Solderable Board FR2 A(80X55 MM)
• 30 x Female Berg Strip 2.54mm pitch, 40 pin
• 30 x Male Berg Strip 2.54mm pitch, 40 pin
• 20 x Dot matrix (LCD display 16 character x 2line, 12C)
• 10 x USB Cable A to B, 12 inch
• 10 x USB cable Mini 12 inches
• 10 x Battery 9-12V to 2500mAh rechargeable battery
• 20 x Resistor Kit (Resistor Kit values: 0, 1.5, 4.7, 10, 47, 100, 220, 330, 470, 680, 1K, 2,2K, 3,3K, 4,7K, 10K, 22K, 47K, 100K, 330K, 1M ohm)
• 20 x Capacitor Kit (Capacitor kit values: 10pF, 22pF, 100pF, 1nF, 10nF, 100nF, 1uF, 10uF, 100uF, 1000uF)
• 30 x Linear Voltage Regulator (7805,7809,7812 – 10 Pc Each)
• 4 x Water Pump DC12V 3W Submersible
• 30 x Piezoelectric copper base Plate 4cm diameter
• 10 x 8×8 LED Matrix 7219 with MCU Controle LED display Mobule
• 15 x Bluetooth module HC 05, 5V
• 20 x 7 segment LED Display (4 digit display 2.4-5.5V) GND, Data, clock
• 4 x GSM (Sim 900 core TTL Port module)
• 4 x GPS (GY-NEO6M V2 module)
• 10 x Laser Diode Emitter 650 nm 5mW mini dot laser
• 30 x LDR light sensor Module 5mm/12mm photosensitive
• 10 x Keypad 16 key switch
• 10 x Joystick 2-axis with push button
• 40 x Active Buzzer (Small 5V)
• 40 x Active Buzzer (Small 12V)
• 10 x Motor Driver Module L293D
• 10 x Sound Play Back Module (ISD 1820 voice recording)
• 40 x DC Plastic Gear Motor with wheel (12V, 150RPM side BO shaft)
• 6 x Node MCU (ESP 8266, 12C)
• 6 x WeMos D1 R2 with Wifi ESP 8266, 5V
• 20 x Vibrating Motor 1.5-3V
• 200 x Alligator Connector 12inch Multi colour
• 40 x 9V Battery Clip with DC Jack
• 4 x Hookup Wire Red & Black Set 100Mt each
• 2000 x Jumper Cable(1000 x Jumper M-M, 600 x Jumper Cable M-F, 400 x Jumper Cable F-F)
• 5000 x LED 5mm, 3-5V ( 1000 x Red, 1000 x Blue, 1000 X Yellow, 1000 x White, 1000 x Green)
• 30 x Timer IC LM-555 (4.5-16V)
• 10 x Atmega 16u2 Microcontroller
• 3 x Diode and Transistor kit (25 assorted basic Diode 4 different type NPN)
• 3 x Button Switch Kit ( 1 x 100 set Push, 1 x 100 set Toggle, 1 x 100 set Slide Switch)
• 20 x Capacitative Touch Module 2.5-3.6V DC (MPR 121 with I2C)
• 10 x Capacitative touch switch module TTP223B 2-5V DC
• 20 x IR obstacle avoider Sensor module LM393
• 10 x Triple axis magnetometer 160Hz 12bit ADC
• 10 x Humidity sensor (20-95% RH, 1.5V AC, 500Hz-2Khz
• 24 x MQ Series Sensor ( MQ2,MQ3,MQ4,MQ5,MQ6,MQ7,MQ8,MQ9,MQ135 – 3Pc Each)
• 10 x IR Transmitter /Receiver (TSOP 1738, 38Khz)
• 40 x Ultra sonic Sensor Module HC-SR-04
• 10 x Triple Axis Accelerometer 350uA, 1.8-3.6V
• 20 x PIR Motion Detector Module 5-12V
• 4 x Pulse rate sensor finger based 3-5V
• 20 x Relay Module 5V, 10A (2 channel Relay)
• 20 x Relay Module 5V, 10A (1 channel Relay)
• 10 x Big Sound Microphone capsule type
• 6 x Soil Moisture Sensor Module (FC-28 with LM293, 3.3-5V)
• 6 x Touch Sensor (TTP22X series, 2.4-5.5V)
• 6 x Metal Touch Sensor Module (KY-036)
• 6 x Rain Drop Sensor 3.3-5.5V
• 6 x Flex Sensor 2.2inch
• 6 x Temperature Sensor (LM35, 4-30V)
• 10 x Humidity Sensor (DHT 11, 3-5V)
• 4 x Force Pressure Sensor
• 4 x Colour Recognition Sensor (TCS3200 )
• 4 x Water Flow Sensor 5V
• 10 x Sound Sensor microphone module
• 10 x IR sensor array module for Line following
• 5 x 10000mAh 5V power bank
• 10 x RFID Reader range 20cm to 1mt
• 10 x RF Module Tx & Rx 315 Mhz ASK
• 10 x Stepper motor with driver board (28BYJ-48, ULN2003, 5V motor with driver board)
• 20 x DC Motor (12V DC Gear 150RPM)
• 70 x Servo Motor ( 10 x MG995 180degree, 10 x MG90S Metal Servo, 10 x MG996 360degree, 40 x SG90 Plastic Gear Servo)
• 10 x 150 RPM BO Motor
• 10 x L298P Motor Driver
• 4 x CCPM 3 channel servo tester
• 3 x Robotics DIY kit programmable
• 5 x Mechanical construction Kit compatible with electronic equipment
• 1 x Drone Kit
• 1 x Aerospace Kit
• 1 x Automobile Kit
• 1 x Biomedical Kit
• 1 x Biotech Kit
• 1 x Agritech Kit
• 1 x Water/Sanitization Kit
• 1 x Other Potential Stem Kit
