Compatible Antenna for Raspberry Pi Compute Module 4 CM4, 2.4G/5G WiFi
by
My Store
SKU: TES-EVHUBWIRELESS009
71% off
Compatible Antenna For Raspberry Pi Compute Module 4, Supports 2.4G/5G WiFi Frequency Band

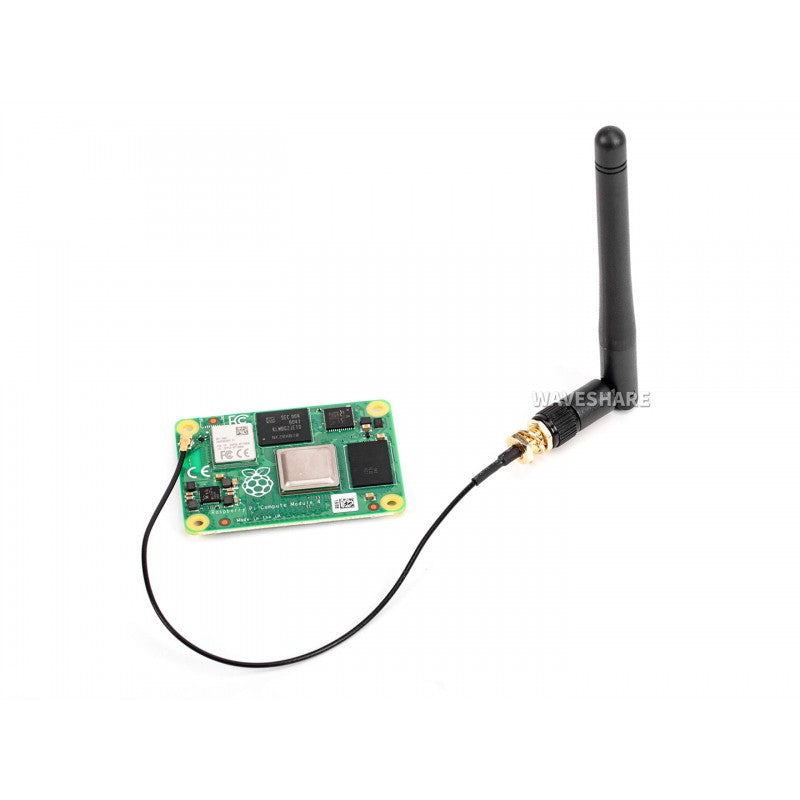

This is a ORD CM4 Antenna, Which make by waveshare electronics. The ORD CM4 Anteena compatibile with Raspberry Pi Compute Module 4.
Specifications
- FREQUENCY RANGE : 2400-2500/5150-5850 MHz
- MAXIMUM POWER : 10 W
- BANDWIDTH : 100–700 MHz

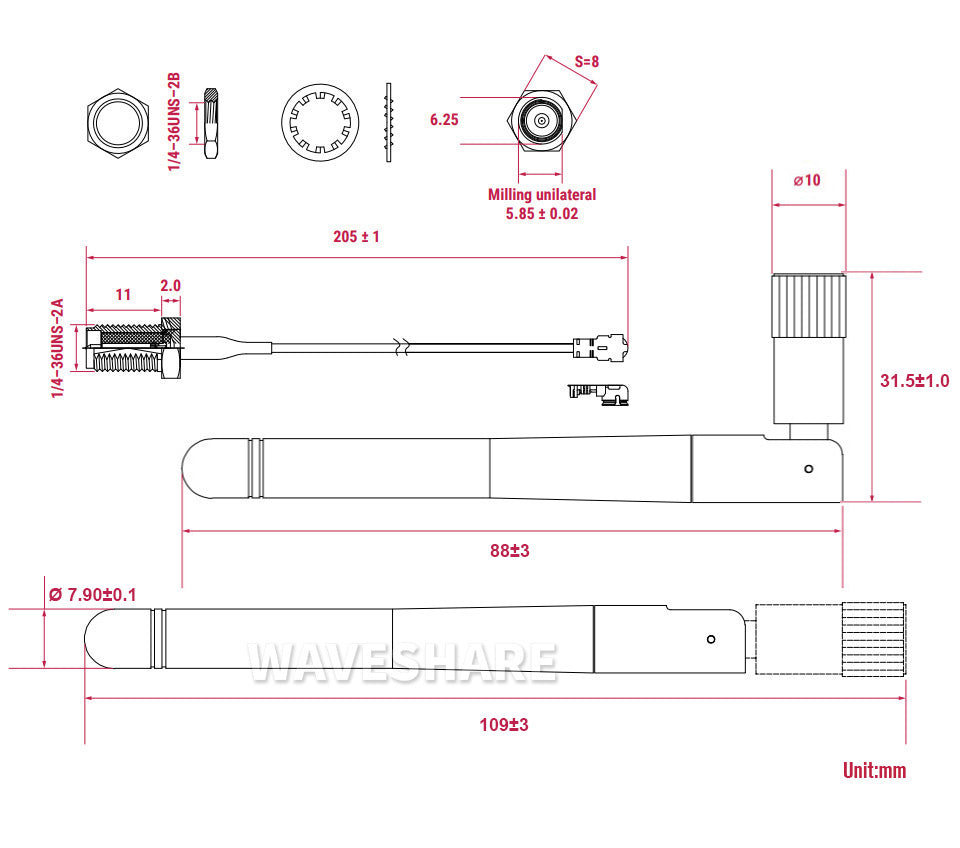

- DIMENSIONS : 109 × 10 mm
- VSWR : ≤1.92
- CONNECTOR : SMA male central pin
- PEAK GAIN : 2±0.5 dBi
- BODY MATERIAL : TPEE
- OUTPUT IMPEDANCE : 50 Ω
- OPERATING VOLTAGE : -20˚C ~ + 70˚C
- POLARISATION : Vertical
- RADIATION : Omnidirectional
