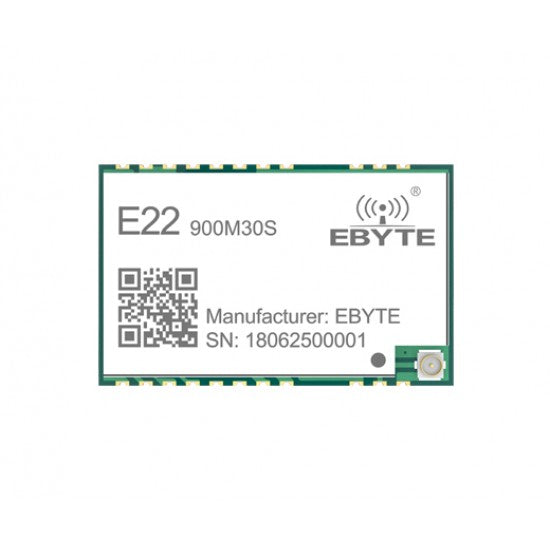

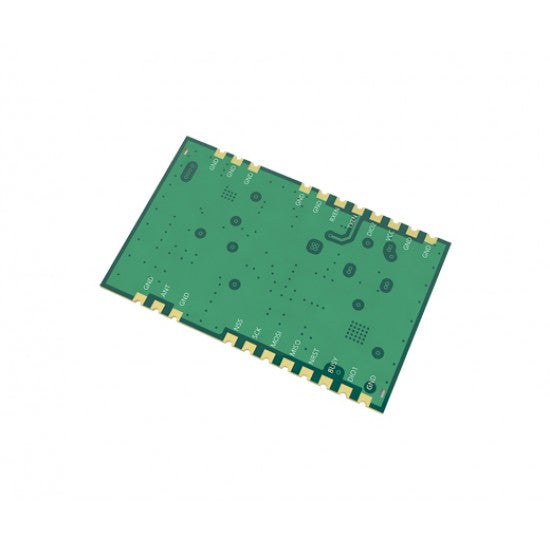

Ebyte E22-900M30S SX1262 868/915MHz 30dBm 12Km SPI LoRa Transceiver Module
by
My Store
SKU: TES-EVHUBWIRELESS013
42% off
Ebyte E22-900M30S SX1262 868/915MHz 30dBm 12Km SPI LoRa Transceiver Module
The E22-900M30S is based on the SX1262, a new generation of LoRa TM RF chip manufactured by Semtech, USA. It is an ultra-small and self-developed 868MHz、915MHz SMD LoRa TM wireless module.
Specifications
- IC ：SX1262
- Frequency ：850~930MHz
- Power ：30dBm
- Distance ：12km
- Interface：SPI
Features
- Communication distance tested is up to 12km
- Maximum transmission power of 1W, software multi-level adjustable
- Support the global license-free ISM 868/915MHz band
- Support air date rate of 0.018-62.5kbps in the LoRa TM mode
- Support 300kpbs in the FSK mode
- Compatible with the transceiver of SX1278/SX1276
- With large capacity, FIFO supports 256Byte data cache.
- New SF5 spreading factor to support dense networks
- Support 2.5V~5.5V power supply, more than 5.0V power supply can guarantee the best performance
- Industrial grade standard design, support -40 ~ 85 °C for working over a long time
- IPEX and stamp hole are optional, which is convenient for secondary development and integration.
Applications
- Home security alarm and remote keyless entry
- Smart home and industrial sensors
- Wireless alarm security system
- Building automation solutions
- Wireless industrial-grade remote control
- Health care products
- Advanced Meter Reading Architecture(AMI)
- Automotive industry applications
