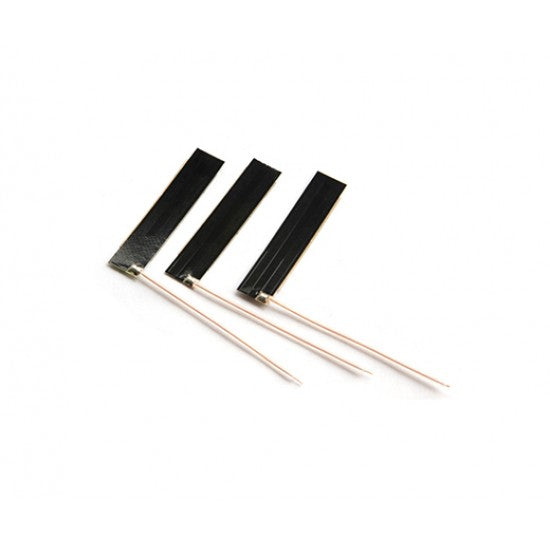

Ebyte TX433-PCB-4310 433MHz 3dBi 50 Ohm Flexible PCB Antenna

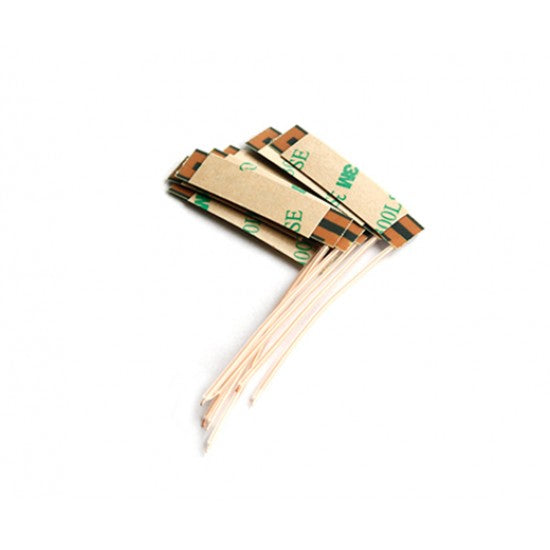

The antenna has been tested by our company's precision instruments and meets the requirements of our wireless module. It is recommended to purchase this antenna to use with our module. FPC substrate design Comes with 3M adhesive.

Specifications

• Frequency : 433MHz
• Bandwidth : 410-450MHz
• Gain : 3dBi
• SWR : ≤1.5
• Polarization : Linear
• Radiation Direction : Omnidirectional
• Input Impedance : 50Ω
• Power Capacity : 5W
• Material : PCB
• Connector : Welding

• Working Temperature : -40℃～+85℃
• Storage Temperature : -40℃～+85℃
