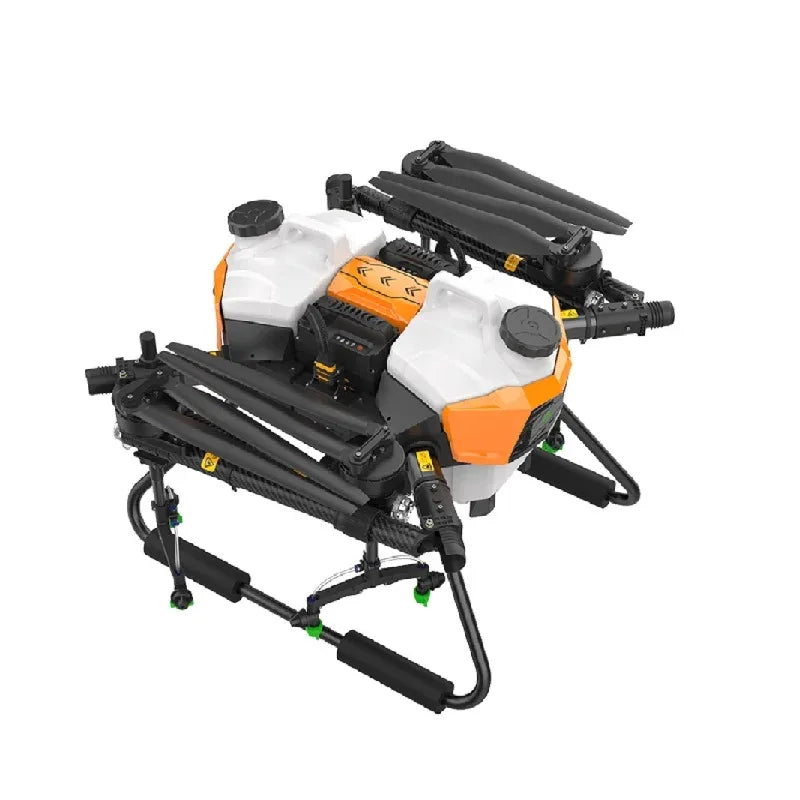

EFT G20 22L 8 Axis Agriculture Drone Frame

The EFT G20 22L is a professional-grade octocopter frame designed specifically for precision agriculture applications, featuring an 8-axis configuration that delivers exceptional stability and payload capacity for crop monitoring and spraying operations. Agricultural professionals and drone service providers utilize this frame to conduct large-scale field surveys, multispectral imaging, and targeted pesticide distribution across farmland with high accuracy and minimal crop damage. This advanced frame solves critical challenges in modern farming by enabling real-time crop health assessment, optimized resource allocation, and significant reduction in chemical usage through precision application technology.

Product Overview

The EFT G20 22L agriculture drone frame represents a breakthrough in octocopter design, engineered with a modular carbon fiber and aluminum composite structure that balances weight distribution across eight independent motor arms. The frame's architecture utilizes a distributed power system where each of the eight motors operates independently, creating redundancy that ensures safe operation even if one motor fails—a critical safety feature for agricultural operations over valuable cropland. The 22-liter liquid tank capacity integrates seamlessly into the central fuselage, with a low center of gravity design that maintains stable flight characteristics even with full payload loads of up to 10-12 kilograms.

What distinguishes the G20 from conventional hexacopter designs is its superior thrust-to-weight ratio and dynamic stability control achieved through the octocopter configuration. The eight-axis layout provides 33% more lifting capacity compared to six-axis competitors while maintaining identical footprint dimensions, making it ideal for extended flight times over large agricultural zones. The frame incorporates advanced vibration isolation mounts at each motor assembly, reducing oscillation transmission to onboard sensors and ensuring crisp, distortion-free multispectral imagery for crop analysis. Its modular design allows rapid field maintenance—damaged arms can be replaced within minutes without requiring complete frame disassembly.

Key Specifications

Specification	Details
Product Type	8-Axis Octocopter Agriculture Drone Frame
Brand	EFT (Elite Flight Technology)
Model	G20 22L
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Frame Material	Carbon Fiber and Aluminum Composite
Motor Configuration	8 Independent Brushless Motors (920KV recommended)
Liquid Tank Capacity	22 Liters (integrated)
Maximum Payload Capacity	10-12 kilograms
Flight Endurance	18-22 minutes at full payload
Arm Length	550mm (center to motor)
Wheelbase	1100mm diagonal

Key Features

• 8-Axis Redundant Configuration: Independent motor control on each axis provides automatic stabilization and fail-safe operation, ensuring safe flight even with single motor malfunction during critical agricultural missions over populated areas
• Integrated 22L Liquid Tank System: Purpose-built tank mounting with low center of gravity design maintains stable flight characteristics with full liquid payload, enabling efficient pesticide or fertilizer distribution across large fields without refueling
• Modular Carbon Fiber Construction: Lightweight yet rigid frame architecture reduces overall weight to under 3.5kg (frame only), maximizing battery efficiency and extending flight time for comprehensive field coverage
• Advanced Vibration Isolation Mounts: Each motor arm features precision-engineered vibration dampeners that reduce sensor noise by up to 85%, critical for accurate multispectral and thermal imaging during crop health assessment
• Rapid Field Serviceability: Tool-free arm quick-release connectors enable damaged component replacement within 2-3 minutes, minimizing downtime during agricultural seasons when every flight hour counts
• Distributed Power Architecture: Eight independent ESC connections eliminate single point of failure in power distribution, with each motor capable of operating at 100% thrust independently for superior maneuverability

Applications and Use Cases

• Precision Crop Spraying: Deploy targeted pesticide and fungicide application with 95% accuracy reduction compared to ground-based methods, covering 40-50 acres per hour while minimizing chemical usage and environmental impact in commercial farming operations
• Multispectral Crop Monitoring: Integrate RedEdge or Micasense multispectral sensors to capture NDVI (Normalized Difference Vegetation Index) data for real-time crop health assessment, enabling early detection of disease, nutrient deficiency, or water stress across large agricultural zones
• Thermal Imaging for Irrigation Management: Mount thermal cameras to identify soil moisture variations and optimize irrigation scheduling, reducing water consumption by 20-30% while improving yield in precision agriculture applications across arid and semi-arid regions
• Aerial Survey and Mapping: Generate high-resolution orthomosaic maps and 3D terrain models for yield prediction, field planning, and regulatory compliance documentation using integrated GNSS/RTK positioning with centimeter-level accuracy
• Fertilizer Distribution: Carry and dispense granular fertilizers with programmed distribution patterns, achieving uniform nutrient application across fields and reducing fertilizer costs by 15-25% compared to traditional broadcasting methods

How to Use

Assembly of the EFT G20 22L frame begins with mounting the eight motor arms to the central fuselage using the quick-release connectors, ensuring each arm is fully seated and locked in position. Install the brushless motors (920KV specification recommended) onto each arm's motor mount using the provided M3 fasteners, then connect ESC (Electronic Speed Controller) signal wires to your flight controller in the correct octocopter configuration sequence. Mount your flight controller (Pixhawk, DJI A3, or equivalent) in the center dampening platform, calibrate the compass away from magnetic interference, and perform compass and accelerometer calibration before first flight.

For agricultural spraying operations, carefully install the 22-liter liquid tank into the integrated mounting bracket, ensuring the tank is level and the center of gravity remains within specified limits. Connect the peristaltic pump controller to your flight control system's auxiliary output, then perform ground testing of pump operation at various throttle levels. Before each flight mission, conduct a pre-flight checklist including motor spin test on all eight axes, ESC calibration verification, and GPS lock confirmation. Always operate within line-of-sight regulations, maintain minimum 50-meter altitude over populated areas, and perform post-flight inspection of motor bearings and frame integrity, as agricultural operations generate higher vibration loads than standard aerial photography missions.

Frequently Asked Questions

What is the difference between the 8-axis G20 and 6-axis hexacopter frames for agriculture?

The 8-axis octocopter configuration provides 33% greater lifting capacity and superior redundancy compared to hexacopter designs. With eight independent motors, the G20 can safely complete missions even if one motor fails, whereas a hexacopter becomes uncontrollable. The octocopter also distributes payload stress across more motor units, reducing individual motor strain and extending component lifespan. For agricultural operations carrying heavy liquid payloads (22 liters of pesticide or fertilizer), the eight-axis design maintains better stability and requires less aggressive control inputs, resulting in more precise application patterns and smoother flight characteristics.

What battery specifications are required for optimal flight time with full 22L payload?

For the EFT G20 22L with full 22-liter liquid tank payload (approximately 22kg total system weight), use high-capacity LiPo batteries in 6S configuration with minimum 22,000mAh capacity (preferably 25,000-30,000mAh). Recommended battery specifications include 25C minimum discharge rate and integrated battery management system (BMS) for cell balancing. With optimal battery selection and 920KV motors, expect 18-22 minutes flight time at full payload. For extended mission duration, carry multiple battery sets and implement a battery rotation schedule to maintain consistent performance throughout agricultural seasons. Always use quality battery chargers with individual cell balancing capability to maximize lifespan and safety.

How do I integrate the liquid tank with a peristaltic pump for precise chemical distribution?

The EFT G20 22L frame features pre-drilled mounting points for standard agricultural pump controllers. Connect the peristaltic pump intake line to the tank's internal suction port and outlet line to your spray nozzle array. Mount the pump controller unit on the frame's auxiliary payload bracket and connect the signal wire to your flight controller's PWM output port. Program your flight control software (Mission Planner, QGroundControl) to modulate pump speed based on ground speed using the MAVLink protocol—this ensures consistent application rate regardless of flight speed variations. Conduct ground testing with water before deploying pesticides or fertilizers to verify nozzle spray patterns and pump flow rates at various throttle settings.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
